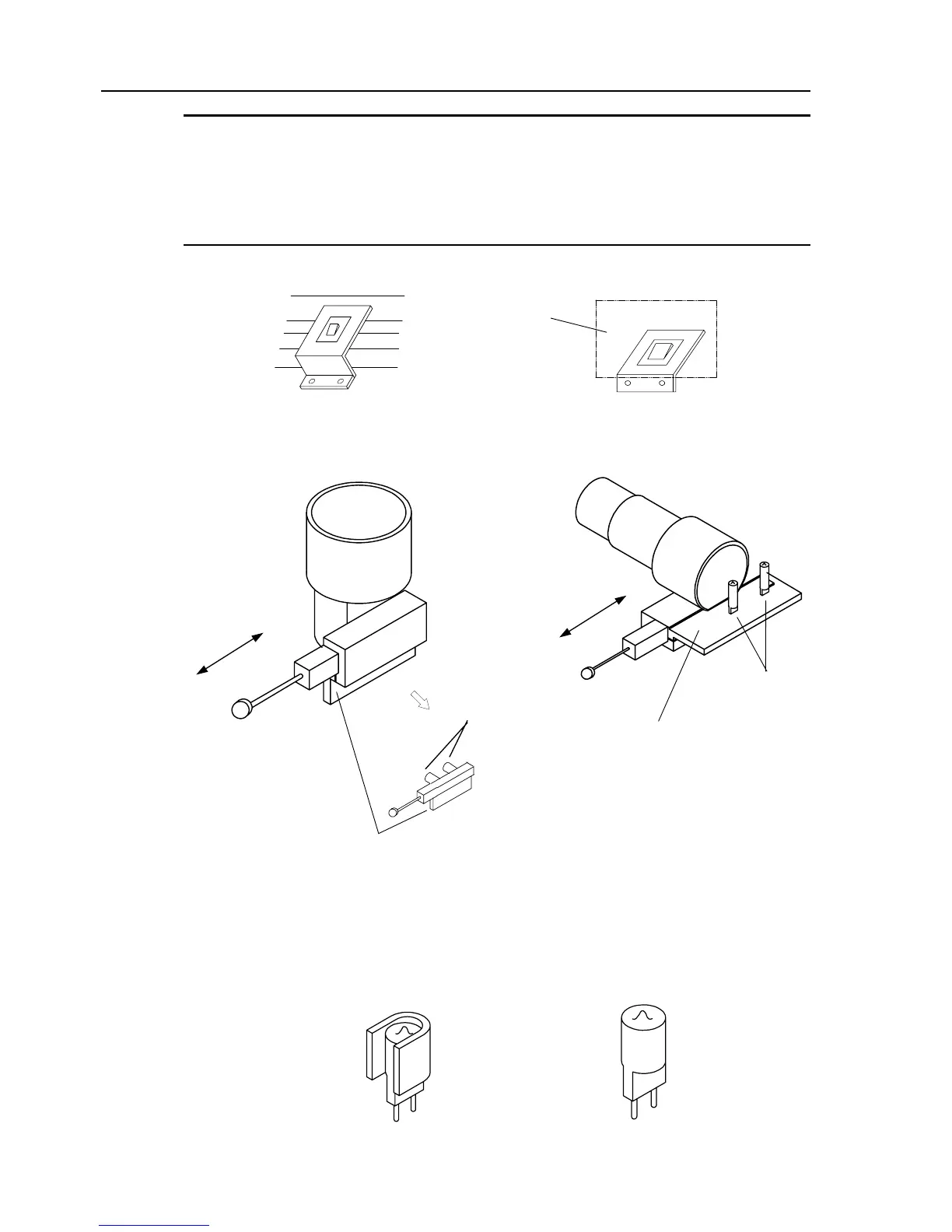

Each two bulbs can be mounted to each illuminator after opening the doors for contour
and reflected illumination. Slide the bulb adapter plate to the click position, when the one
of the two's bulb is blown. Tilt each illumination bulb selection switch to the rear side,
when the bulb A is lit. Tilt each illumination bulb selection switch to the front side, when
the bulb B is lit.
NOTE
Door for
Reflected
illuminator
Reflected illumination Contour illumination
B
Bulb adapter plate
(5) The bulb becomes considerable high temperature just after it is blown. Grasp the
bulb so that it's tube wall may not be touched directly, and pull it straight from the bulb
adapter plate, when the bulb is removed.
OK NG
5 - 4 No.99MBA043A
