3.1.1 5 USING THE CIRCLE FUNCTION
To calculate the diameter and center of a circle, refer to Figure 3-10 and
perform the following steps:
(
1.
Press the [CIRCLE] key. The Circle lndicator will illuminate and P03 will
appear on the Sub-Display, indicating that three points need to be
measured.
,
2.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch. P02 will appear on the Sub-Display, indicating
(
that there are two points remaining to be measured.
3.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the
footswitch..
will appear on the Sub-Display indicating
that there
is one point remaining to be measured.
I
4.
Movethe crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch.
will appear on the Sub-Display, indicating
that there are no points remaining to be measured.
t:
The diameter D is calculated and displayed on the X-axis Display. By
pressing the [OTHER] key, the point
Po is displayed.
5.
Press the [CLEAR] key to deactivate the Circle function. The Circle
Indicator will extinguish. Pressing another function key will initiate that
function.

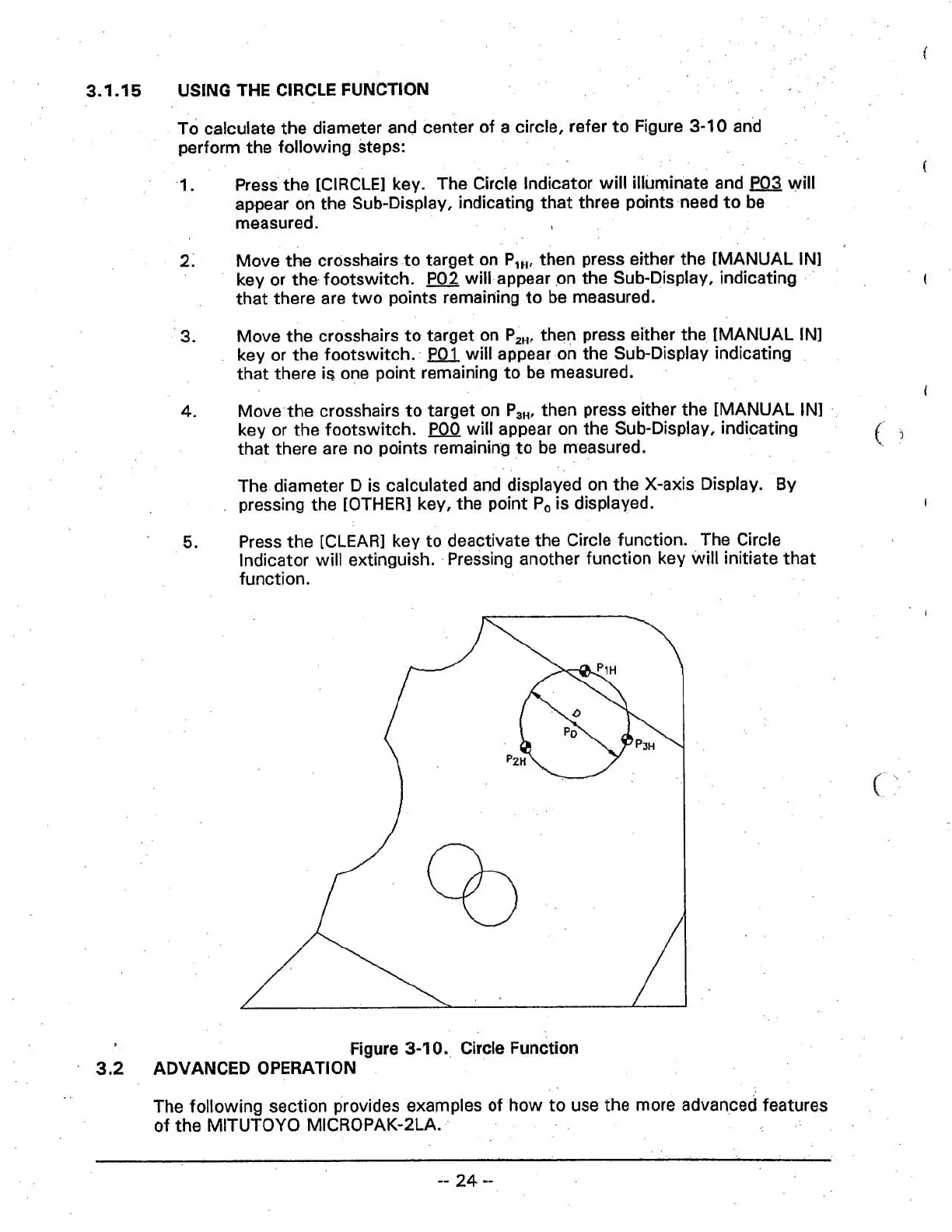

Figure
3-1 0. Circle Function
3.2 ADVANCED OPERATION
The following section provides examples of how to use the more advanced features
of the
MITUTOYO MICROPAK-2LA.
