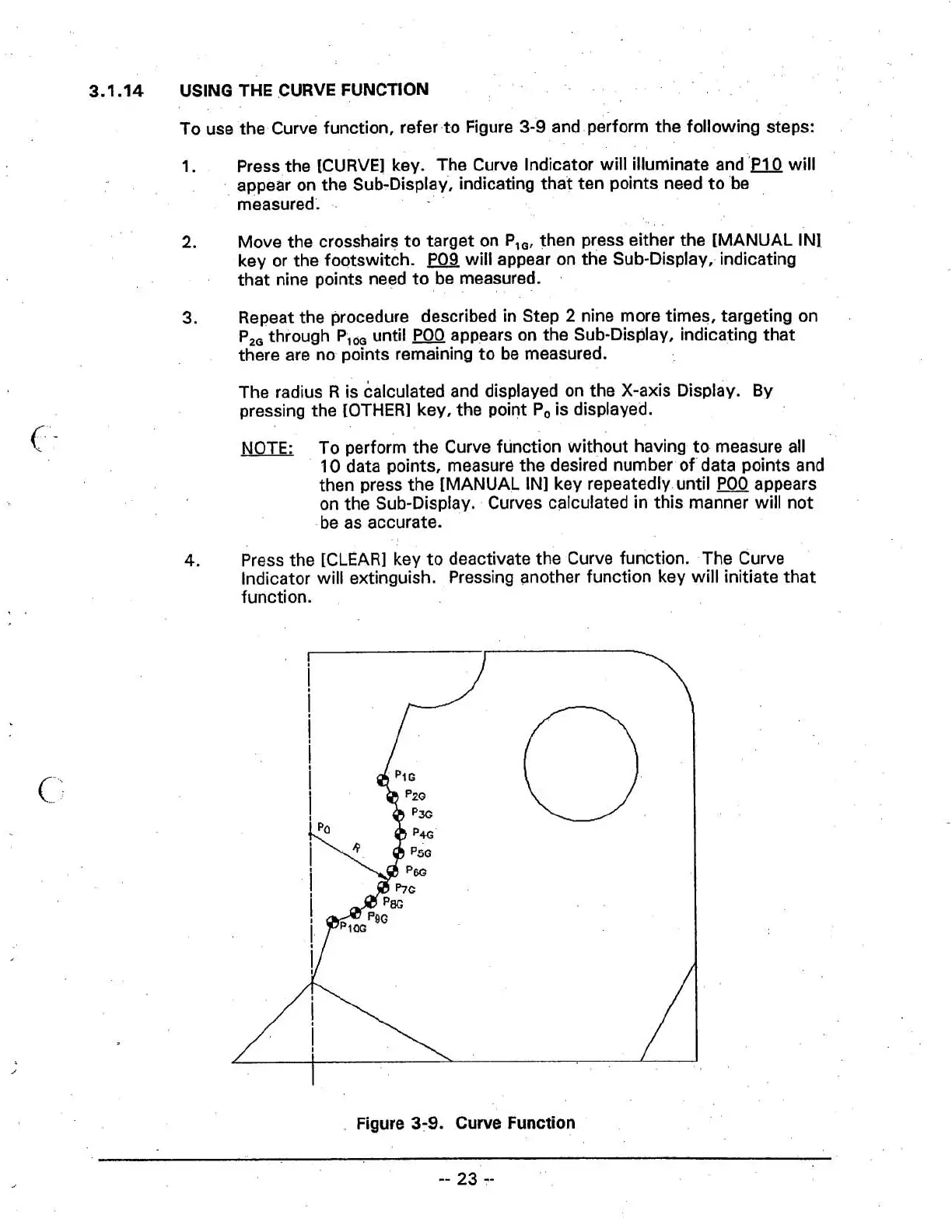

3. I .I4 USING THE CURVE FUNCTION
To use the Curve function, refer to Figure
3-9 and perform the following steps:
1.
Press the [CURVE] key. The Curve lndicator will illuminate and
will
appear on the Sub-Display, indicating that ten points need to be
measured.
2.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch.
will appear on the Sub-Display, indicating
that nine points need to be measured.
3.
Repeat the procedure described in Step 2 nine more times, targeting on
P,, through P,,? until ePP appears on the Sub-Display, indicating that
there are no
po~nts remaining to be measured.
The radius
R is calculated and displayed on the X-axis Display. By
pressing the [OTHER] key, the point
Po is displayed.
NOTE:
To perform the Curve function without having to measure all
10 data points, measure the desired number of data points and
then press the [MANUAL
IN1 key repeatedly until
appears
on the Sub-Display. Curves calculated in this manner will not
be as accurate.
4.
Press the [CLEAR] key to deactivate the Curve function. The Curve
lndicator will extinguish. Pressing another function key will initiate that
function.
Figure 3-9. Curve Function
