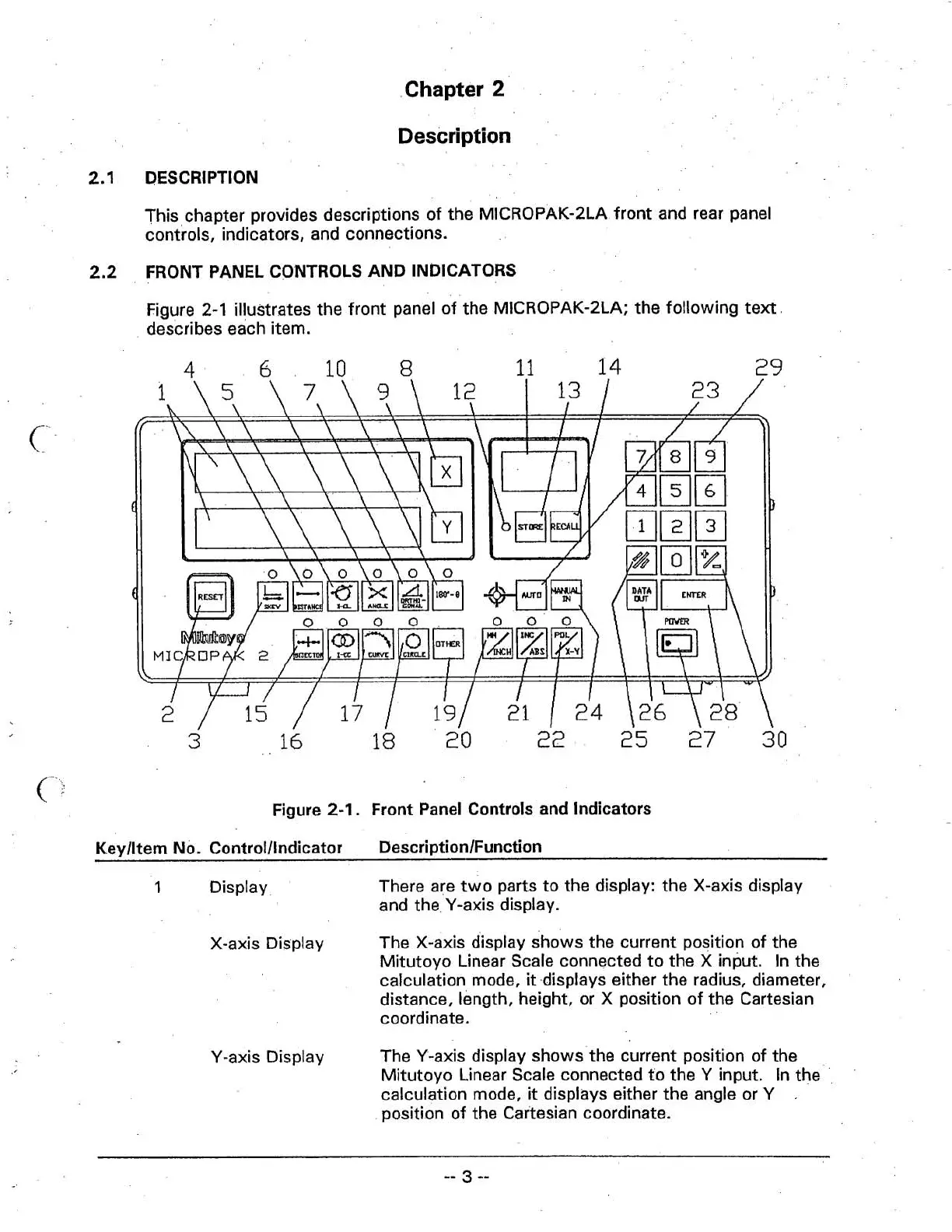

Chapter 2
Description
2.1 DESCRIPTION
This chapter provides descriptions of the MICROPAK-2LA front and rear panel
controls, indicators, and connections.
FRONT PANEL CONTROLS AND INDICATORS
Figure
2-1 illustrates the front panel of the MICROPAK-2LA; the following text
describes each item.
Figure
2-1. Front Panel Controls and Indicators
Kevlltem No. Controlllndicator DescriptionlFunctian
1 Display
There are two parts to the display: the X-axis display
and the. Y-axis display.
X-axis Display
The X-axis display shows the current position of the
Mitutoyo Linear Scale connected to the X input.
In the
calculation mode,
it displays either the radius, diameter,
distance, length, height, or X position of the Cartesian
coordinate.
Y-axis Display
The Y-axis display shows the current position of the
Mitutoyo Linear Scale connected to the Y input.
In the
calculation mode,
it displays either the angle or Y ,
position of the Cartesian coordinate.
