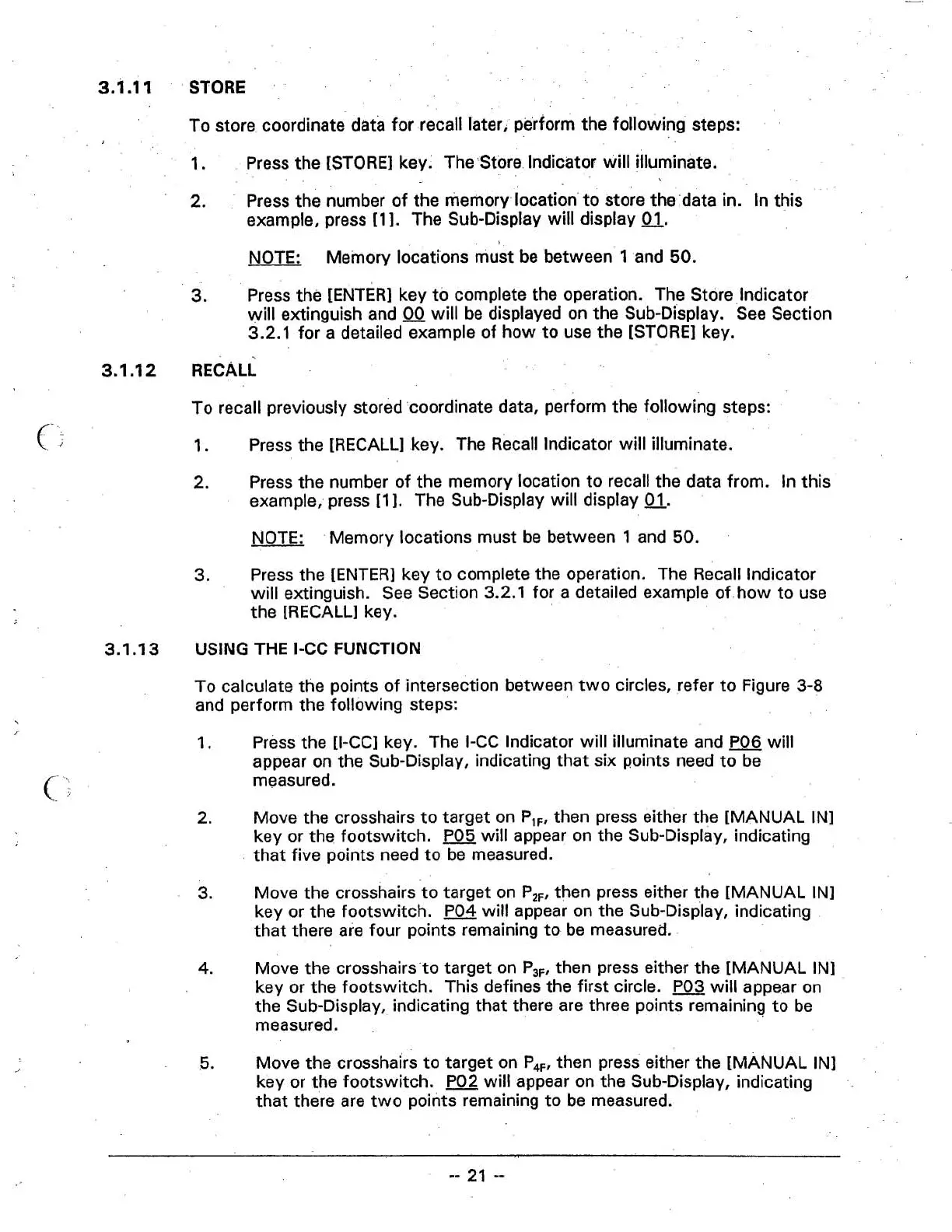

3.1.11 STORE
To store coordinate data for recall later, perform the following steps:
1. Press the [STORE] key. The Store lndicator will illuminate.
2.
Press the number of the memory location to store the data in. In this
example, press
[I I. The Sub-Display will display Qj..
NOTE:
Memory locations must be between
1 and 50.
3.
' Press the [ENTER] key to complete the operation. The Store,lndicator
will extinguish and QQ will be displayed on the Sub-Display. See Section
3.2.1 for a detailed example of how to use the [STORE] key.
To recall previously stored 'coordinate data, perform the following steps:
1.
Press the [RECALL] key. The ~ecall lndicator will illuminate.
2.
Press the number of the memory location to recall the data from. In this
example, press
[I]. The Sub-Display will display 01.
NOTE:
- Memory locations must be between 1 and 50.
3.
Press the [ENTER] key to complete the operation. The Recall lndicator
will extinguish. See Section
3.2.1 for a detailed example of how to use
the [RECALL] key.
3.1 .I 3
USING THE I-CC FUNCTION
To calculate the points of intersection between two circles, refer to Figure
3-8
and perform the following steps:
1. Press the [I-CC] key. The I-CC lndicator will illuminate and will
appear on the Sub-Display, indicating that six points need to be
measured.
2. Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch.
P05 will appear on the Sub-Display, indicating
that five points need to be measured.
3.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch.
P04 will appear on the Sub-Display, indicating
that there
aie four points remaining to be measured.
4.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch. This defines the first circle.
P03 will appear on
the Sub-Display, indicating that there are three points remaining to be
measured.
5.
Move the crosshairs to target on P,,, then press either the [MANUAL IN]
key or the footswitch.
P02 will appear on the Sub-Display, indicating
that there are two points remaining to be measured.
