MIXER PLUS Series - Cleaning Mixing Chamber

To Next Page

To Previous Page

Manual instruction Mixer Plus Mixer Technology srl pag.26

CLEANING OF CHAMBER MIXING

1) Only for mod. PLUS-MONO: Remove the gearmotor power supply outlet;

2) The machine can be externally cleaned with a sponge or damp cloth;

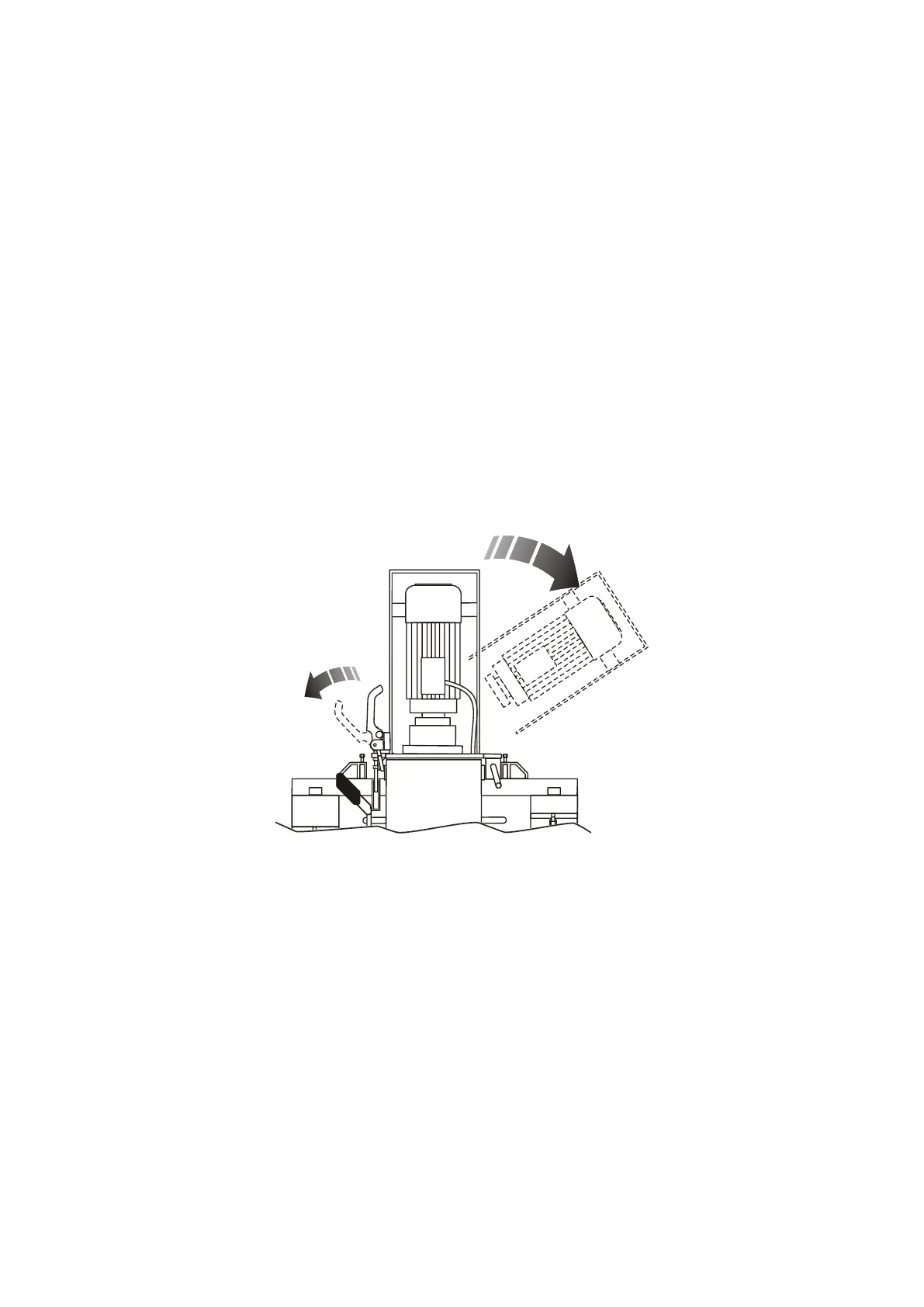

3) Open the gearmotor mixing assembly (see figure below);

4) Extract the mixer and clean it with the metallic brush (standard supplied);

5) Insert the rod in the cleaning device;

6) Manually insert the rod and cleaning device in the mixing chamber by

rotating manually the rod till it is connected into the radial cavity of the

rotor; N.B: Rotate the gearmotor joint coupling till the rod matches the

end;

7) Close the gearmotor assembly and hook it up;

8) Insert the power supply plug of the mixing gearmotor;

9) Start the mixer;

10) After 10 s (time cleaning necessary) stop the mixer;

11) Extract the cleaning device and the rod following the reverse procedure.
