MIXER PLUS Series - Cleaning the Hopper

Manual instruction Mixer Plus Mixer Technology srl pag.27
CLEANING OF THE HOPPER
At each change of the product used, it is suggested to perform the cleaning of the
hopper:
1) Place a suitable container under the hopper drain door and open this latter
(fig.1-14);
2) Remove the gearmotor power supply outlet (only mod. Plus Mono);
3) Disconnect the water tube from the trunket (fig. 1-11-12);

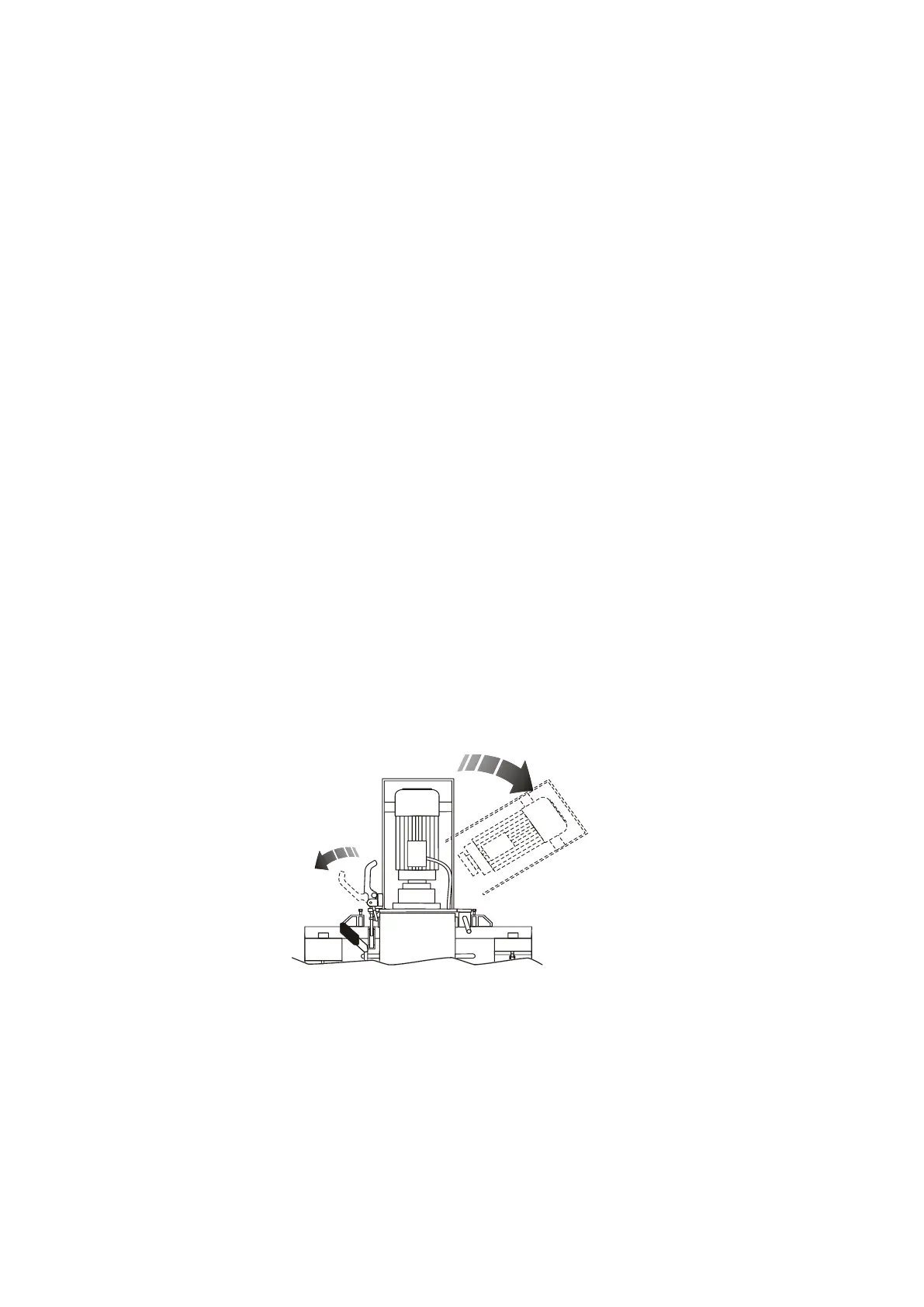

4) Open mixer assembly;
5) Rotate the gearmotor assembly flange clockwise;
6) Extract the mixer from the mixing chamber;
7) Stop and halt gearmotor assembly;
8) Open the mixing chamber locking lever(fig.1-3);
9) Remove the water tube to mixing chamber;
10) Rotate the mixing chamber, lifting it up from below;
11) Insert a sheet of paper or polypropylene between the hopper and the mixing
chamber;
12) Lower the mixing chamber and close the mixing chamber locking lever;
13) Reconnect the conveying water tube to mixing chamber;
14) Start the cell dosing wheel until the complete emptying of hopper;
15) Close the hopper drain door;
16) Open the mixing chamber and remove the sheet of paper or polypropylene;
17) Insert the mixer in the mixing chamber and connect it into the radial cavity of
the rotor;
18) Rotate the gearmotor assembly flange counter-clockwise, until correspond with
the mixer;
19) Close and stop the mixing gearmotor assembly;
20) Connect the water tube to mixing chamber.
