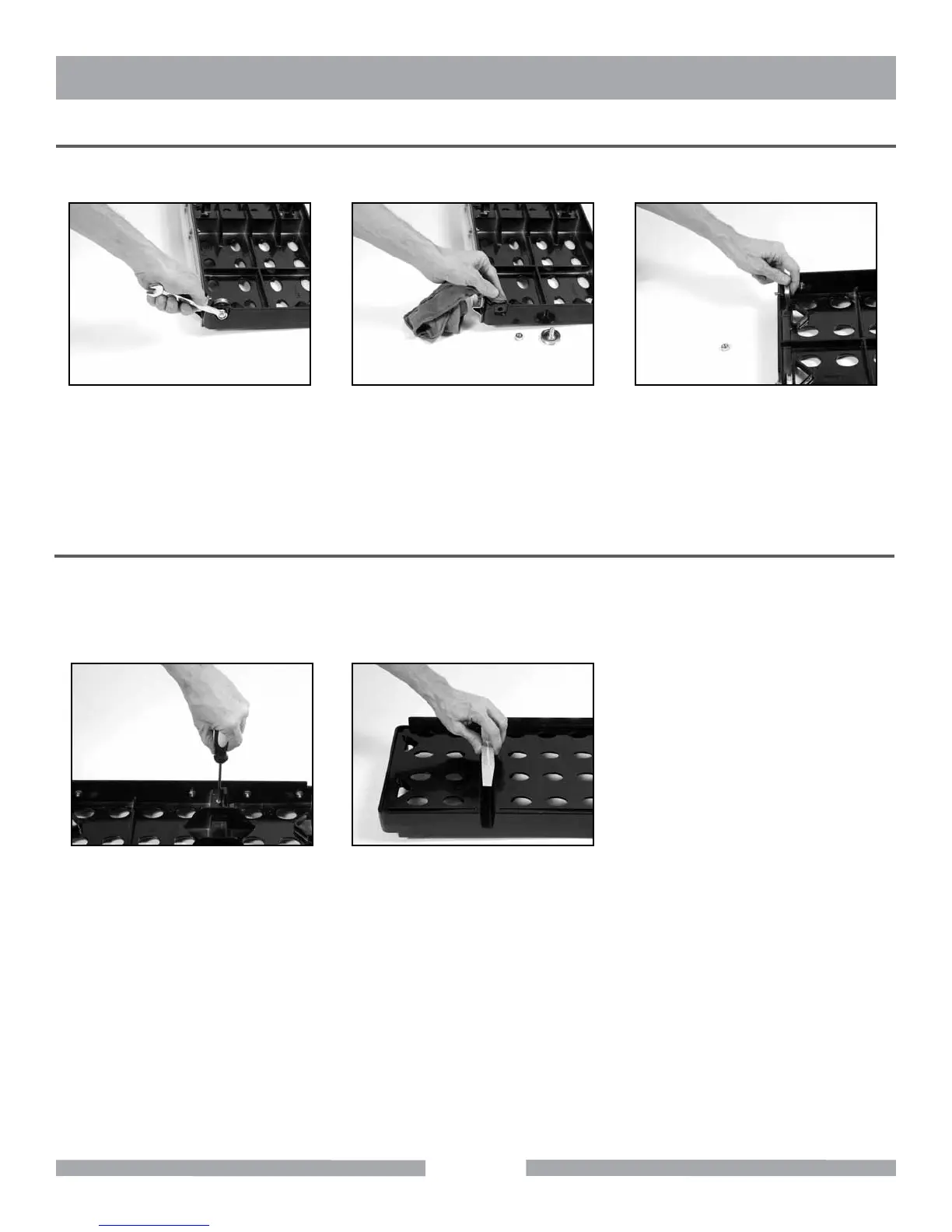

MOVEABLE CUTTING TABLE WHEEL CHANGE OUT
PROTECTIVE WOODEN STRIP REPLACEMENT
The protective wooden strip is to protect the Movable Cutting Table from damage during operation.
Over time, the wooden strip will become grooved from use. A grooved wooden strip will not support
masonry during cutting causing the blade to “break through” the piece instead of performing a smooth
cut (MK Diamond Part No. 158283).
MK-2000 ELECTRIC SAW MAINTENANCE
(A)
Remove the Movable Cutting Table.
Using a 1/2 inch wrench, remove
the Roller Wheel Retaining Nut and
Roller Wheel. Rotate counter-clock-
wise to loosen.
(B)
Clean the Roller Wheel Shaft
Holes.
(C)
Install the Wheel/Washer Assem-
bly into Movable Cutting Table
Wheel Shaft Hole and tighten.
Lubricate the wheels.
(A)
Turn the cutting table upside
down. Remove the two Protective
Wooden Strip Retaining Screws
using a Phillips Screwdriver.
(B)
Replace the worn Protective
Wooden Strip with the new Pro-
tective Wooden Strip. Reinstall
the Retaining Screws.
NOTE:
All four (4) Movable Cutting Table Roller Wheels should be replaced at the same time
(MK Diamond Part # 133090)
