6
To switch the Nova on:
1. Push up the slide switch on the left side of the
Nova display. (See Figure 2).
The unit will switch on, and the display will appear.
Note:
The head must be plugged in before the unit is
switched on.
To switch the Nova off:
1. Return the slide switch to its original position.
2. If you wish to save the current Nova configuration,
use the "configure" function before switching off.
See below, Section 2.2.2 or refer to the main body
of the manual for details.
To set line frequency:
1. Disconnect the head and switch off then on again.
"Head Disconnected" will appear.
2. Press "select" until "line freq" is highlighted.
3. Press "go" then change to correct frequency.
4. Press "exit" and change will be saved.

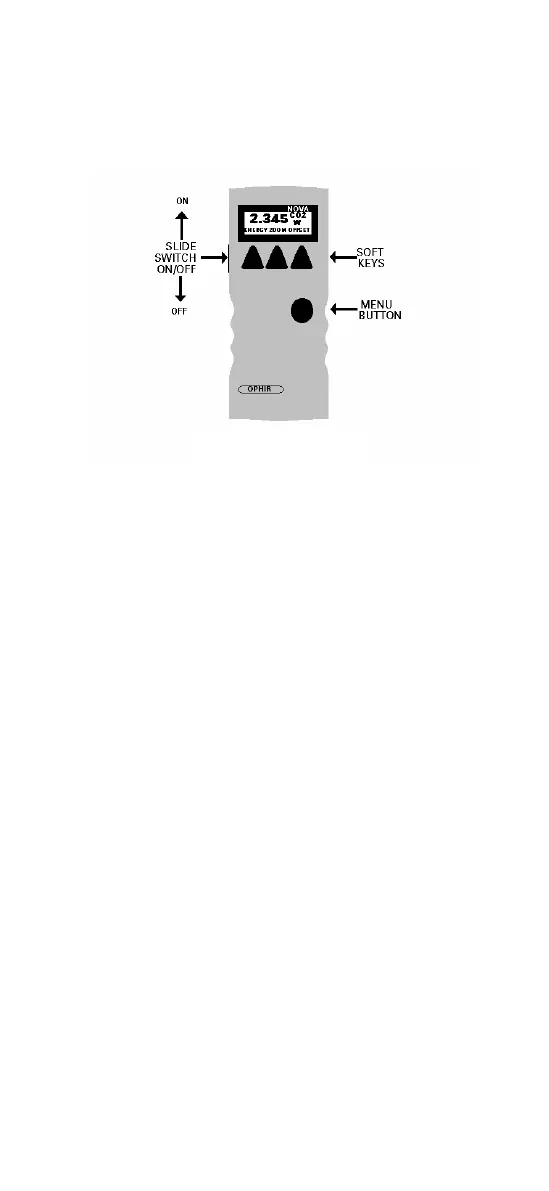

Figure 2.
Nova Top View
