When mounting make sure the encoders are spring loaded. Push the spring whilst tightening
grub screw. The gears should be running smooth and there should be no audible clicking when
running the lens.
10.2 Calibrating Mechanical Lens Encoders
There are 2 ways to calibrate the mechanical lens encoders. Another name for zeroing the
encoders is to "do the lens ranges"
Through Software:

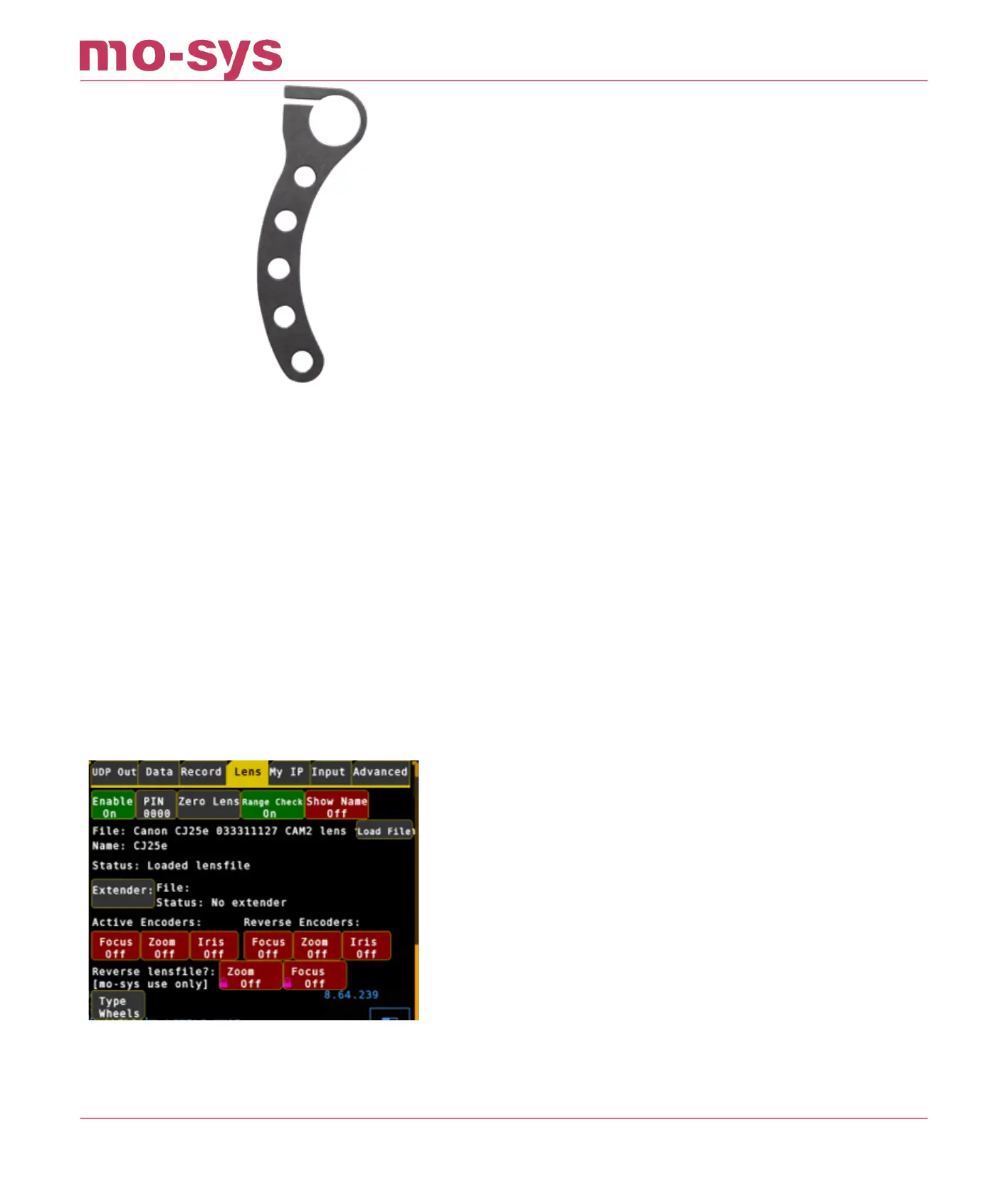

In Data -> Lens click Zero Lens. Then move the zoom and focus lens to their physical end-stops
a couple of times
Set the encoders you are using to "Activate". Turn o󰍒 the ones you aren't using.
Through Hardware:
