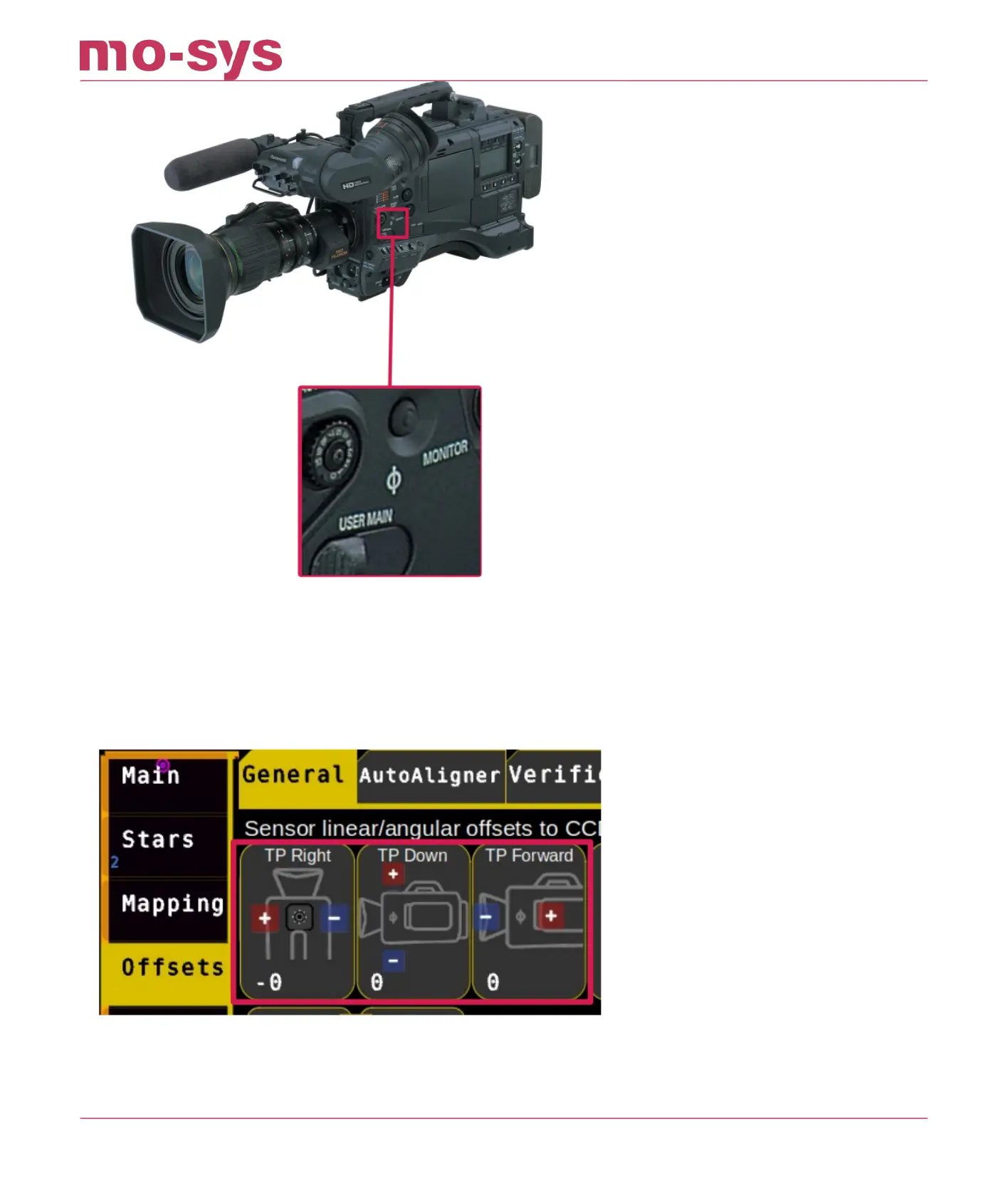

TP Right is positive as we move it to the right.
TP Forward is negative as we move the tracking point backwards.
TP Down is positive when we are moving the tracking point down.
This is the position of the StarTracker sensor CCD. It is vertically located at the groove and CCD
Mark.
