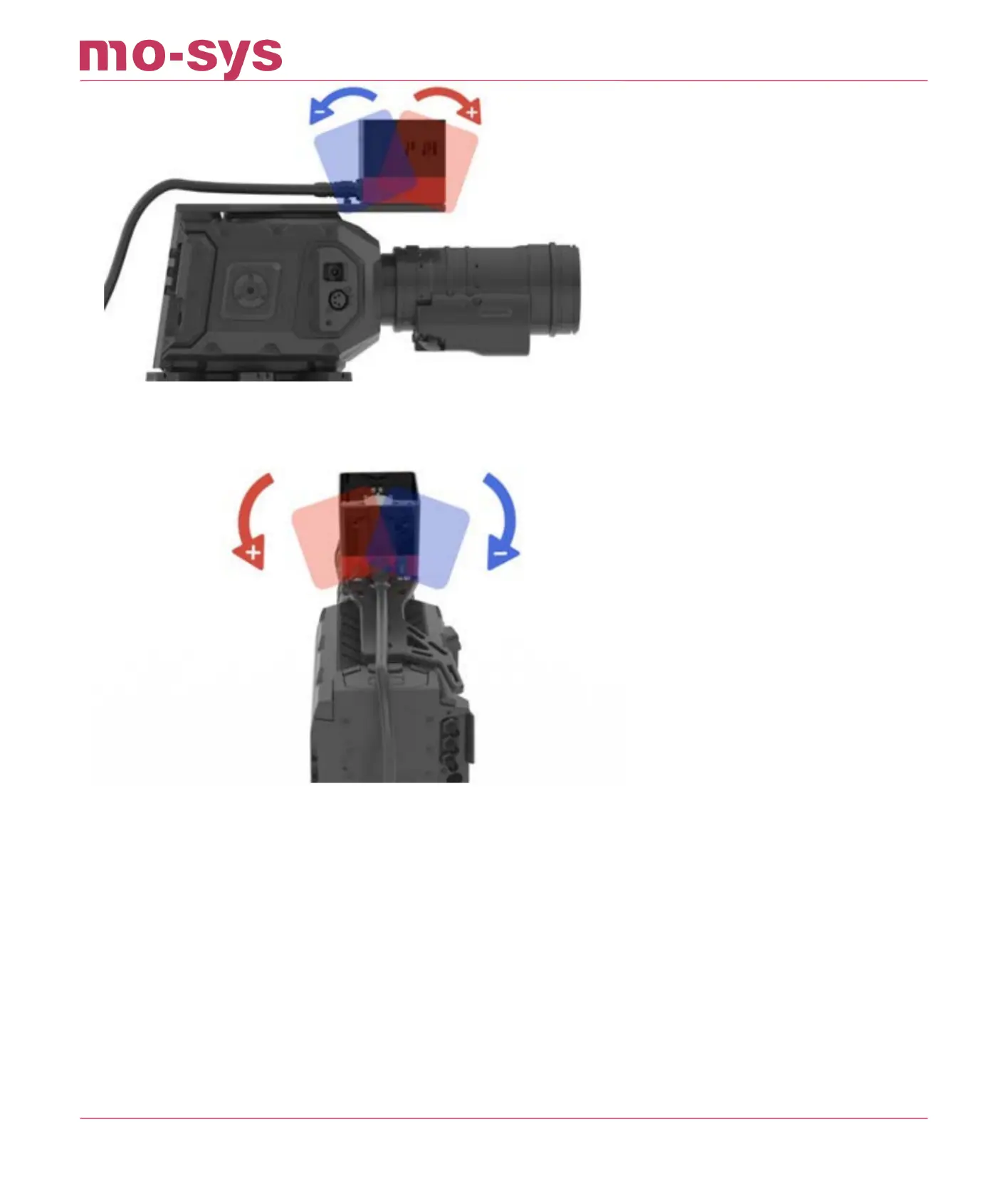

Roll O󰍒sets
Pan and tilt o󰍒sets will be calculated by the Auto-Aligner! Roll o󰍒set needs to be set checking
against graphics.
The Roll o󰍒set needs to be set prior to Auto Aligner if there is an obvious roll o󰍒set (>2 deg). If
you use our standard broadcast bracket the roll o󰍒set can be left at 0.
You can use an electronic angle measurer (also phone app) to get the correct roll value. Make
sure the broadcast camera is fully levelled in roll when measuring the sensor unit roll o󰍒set.
