Mocka House Bed Single - Step 3: Connect Main Frame; Step 4: Assemble Roof Structure

House Bed - Single
Assembly Instructions
mocka.co.nz | mocka.com.au
3
3 4

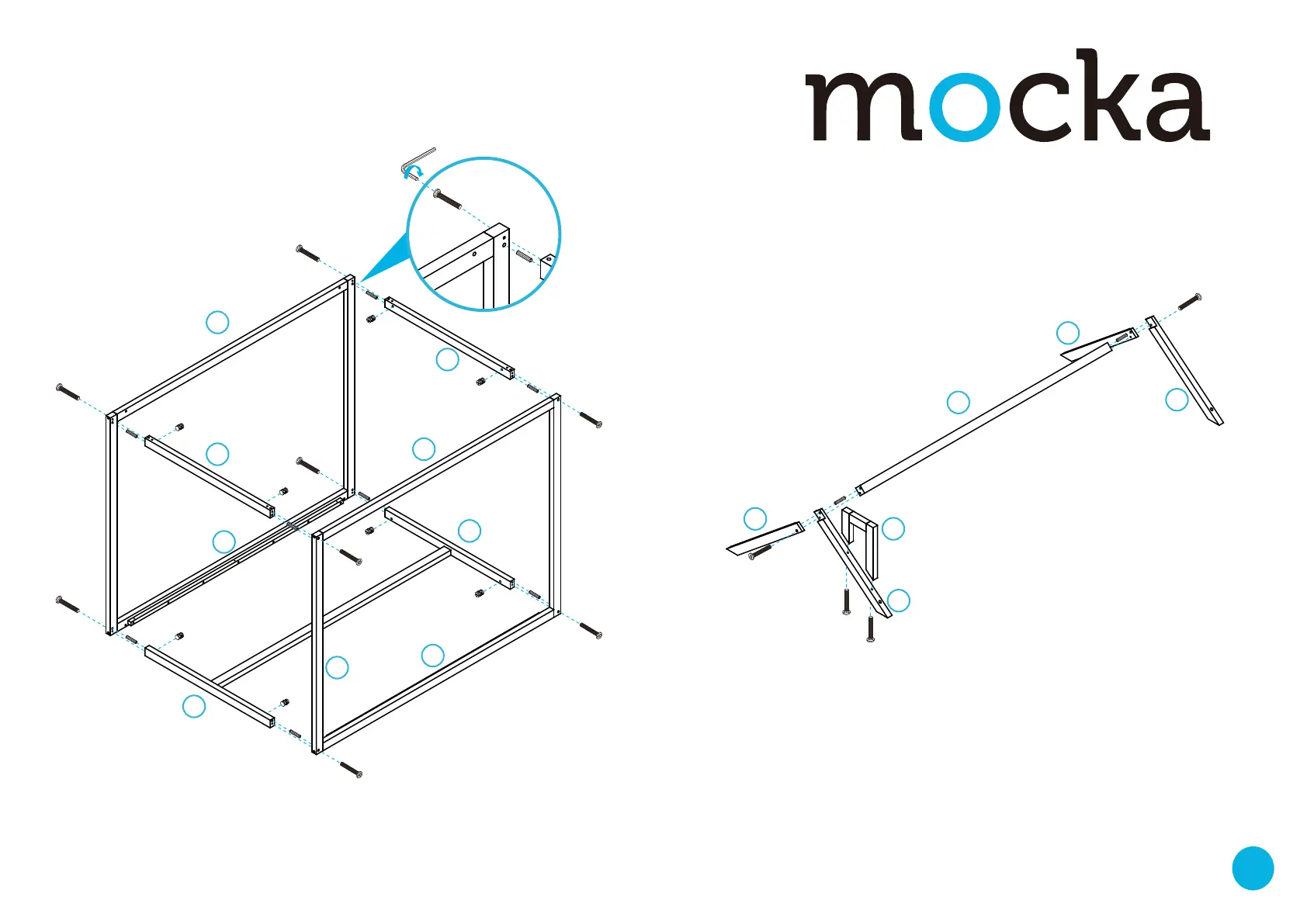

Insert 8x dowels (D) and 8x locking nuts (C) into panels [5] and [3] as
shown. Attach panels [5] and [3] to panels [4] and [1] using 8x bolts (B).
Tighten with a allen key (F) and a screwdriver.
Insert 2x dowels (D) into panel [10].Attach panels [6], [7], [8], [9] and [10] using
4x bolts (B). Tighten with a allen key (F).
