Mocka Kirra - Page 6

Kirra Desk
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
6
9
10
1
4
4
3
3
6
8

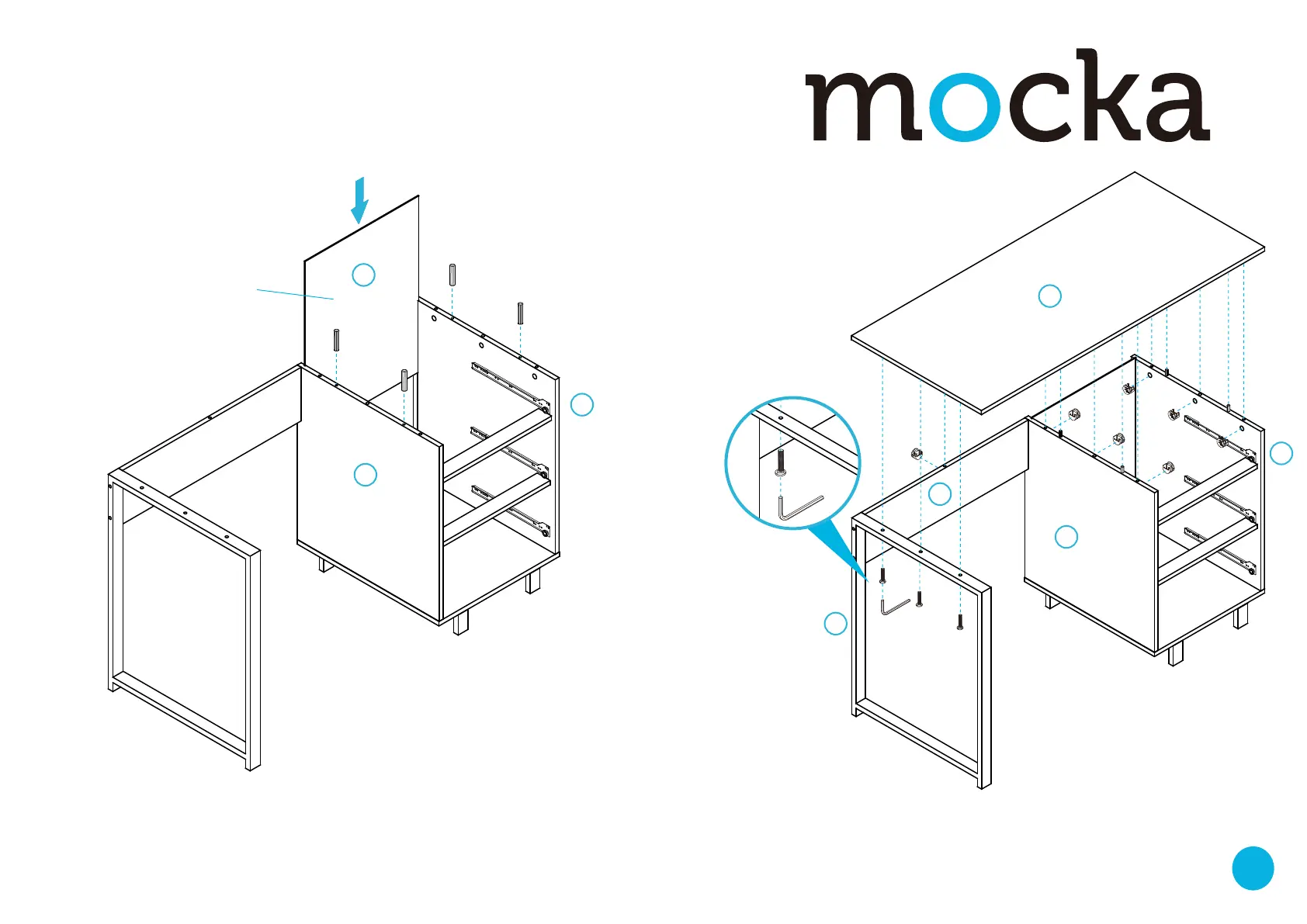

Slide panel [9] down along the grooves between panels [3] and [4].
Attach 4x dowels (A) to panels [3] and [4] as shown.
Ensure laminated
side of panel is facing
inwards.
Attach panel [1] to panels [3], [4] and [6], secure with 7x locking nuts (D).
Tighten with a screwdriver. Attach panel [1] to panel [8], secure with
3x bolts (P). Tighten with an allen key (Q).
A
A
D
P
P
Q
Q
P
D
D
D
D
A
A
D
D
P
9
