Moduline HSH E Series - Keys Pc Board Diagnostics

RESEARCH AND DEVELOPMENT
2

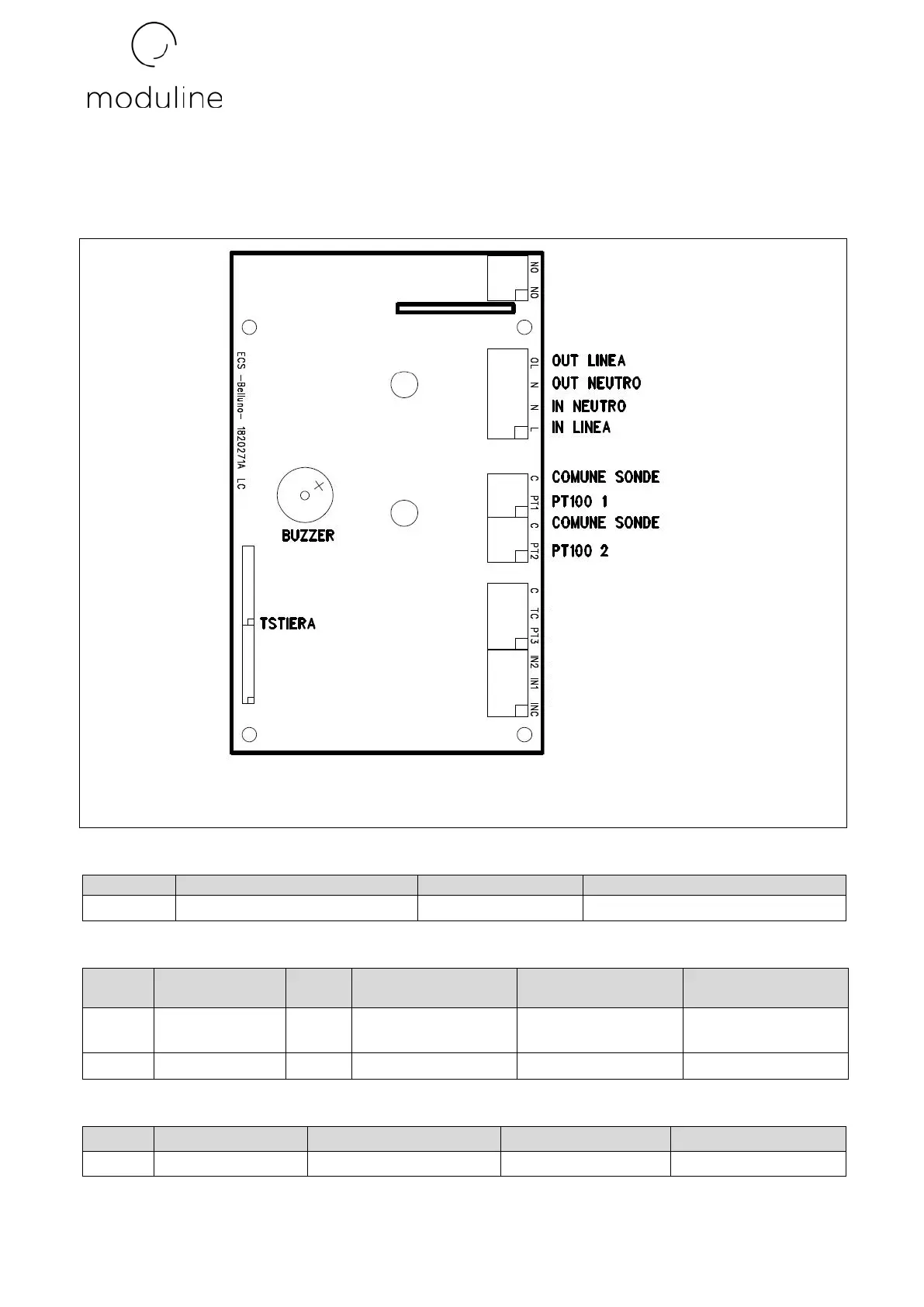

4 KEYS PC BOARD
POWER SUPPLY
Description
Type
Name
N - L Power supply 230Vac LINE IN – NEUTRAL IN
PROBE
Probe
Description
Type
Operating Range
Conversion
Range
Range of use
PT1 Heating
element probe
PT100
-50°C ÷ +500°C -25°C ÷ +400°C -20°C ÷ +400°C
PT2 Cavity probe PT100
-50°C ÷ +500°C -25°C ÷ +400°C -20°C ÷ +400°C
DIGITAL OUTPUTS
Out
Descrizione
Type
Features
Name
OL Heating element Contact NO 16A AC1 LINE OUT
DISPLAY STATUS AND PROBE TESTS
