EEI-1109 & 3869 OFFICE CHAIR
Customer Service 609-256-9000︱www.modway.com
Page
3
of 4

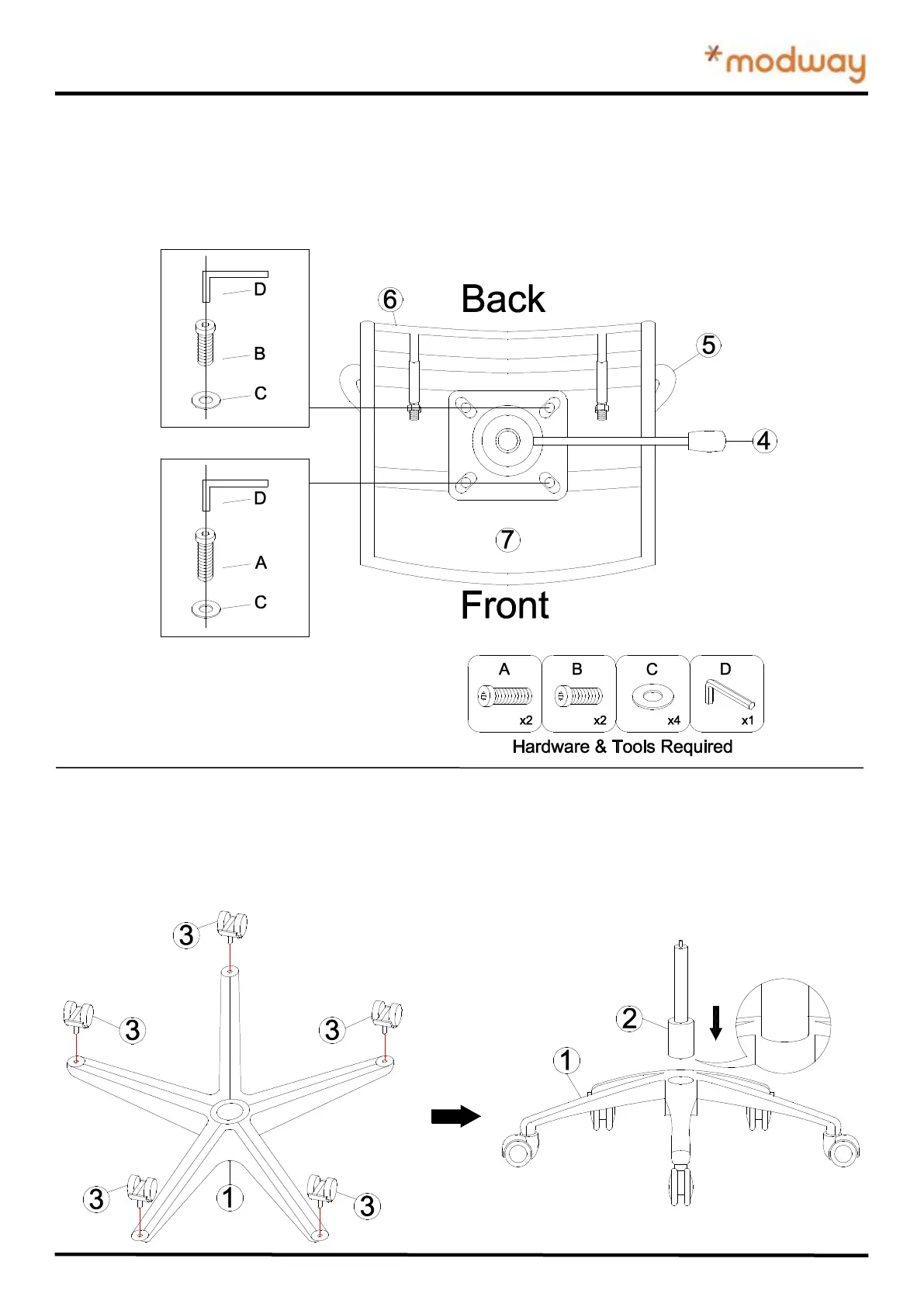

STEP 3:
1. Attach
the Fixing Plate (4)
to the Seater frame (5) and the Seater (7) by using 2 pieces of Bolts(A)
and 2 pieces of Flat Washers (C) for front as shown.
2. Attach
the Fixing Plate (4)
to the Seater frame (5) and the Seater (7) by using 2 pieces of Bolts(B)
and 2 pieces of Flat Washers (C) for back as shown.
3. Use Allen Wrench (D) to tighten all Bolts (A) and Bolts (B) clockwise as shown.
STEP 4:
1. Please put Base (1) on a carpeted or padded surface.
2. Insert 1 piece of Castor (3) into the Base (1) as shown by hand.
3. Repeat the same steps for the remaining 4 pieces of Castors (3).
4. Carefully turn over the assembled Base (1) and Insert the Gas Lift (2) as shown.
