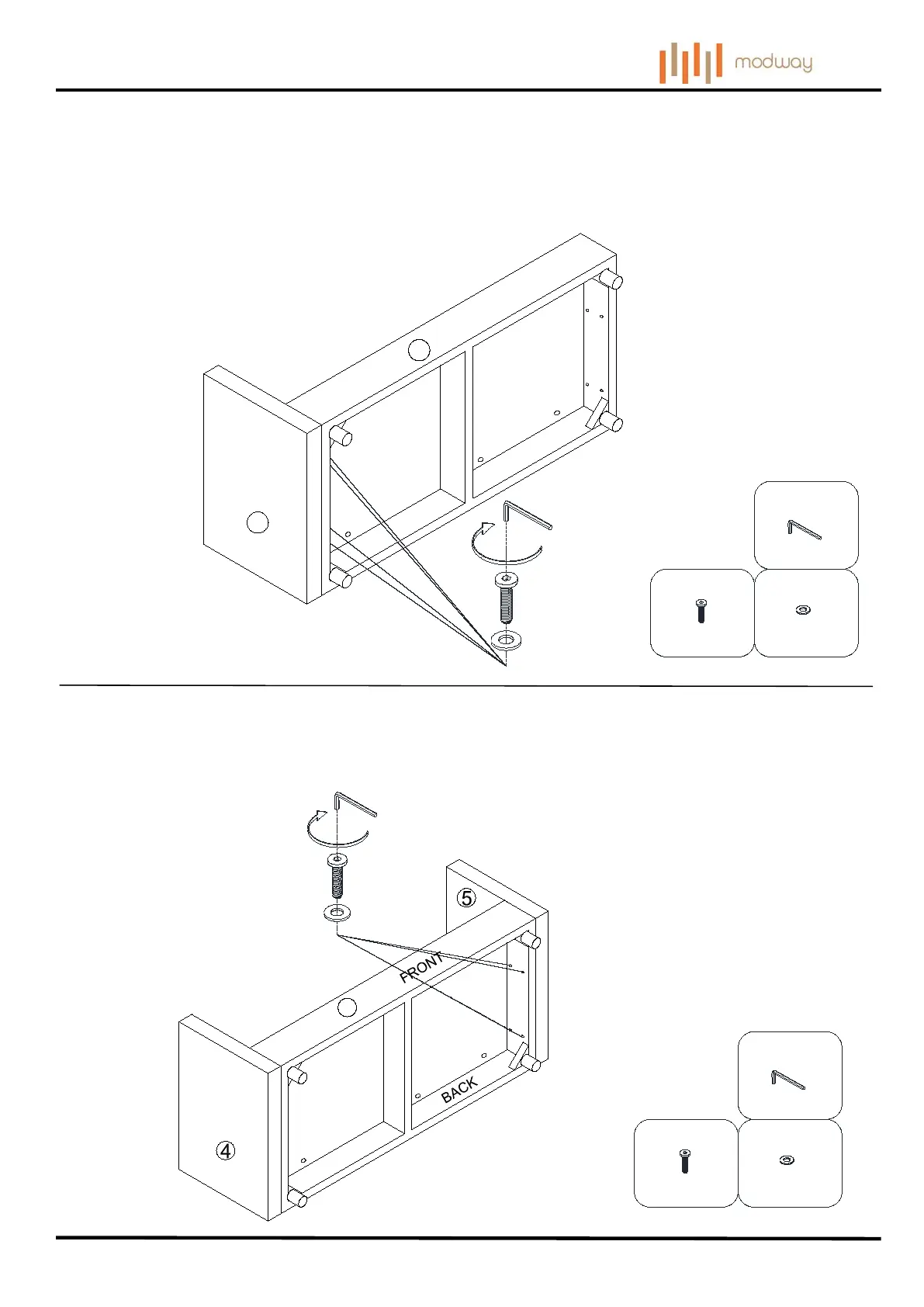

STEP 3:
Attach Left Arm (4) to the side of Seat Frame (6) by using 4 pieces of Bolts (A) with 4 pieces of Flat Washers (B)
as shown.
Tighten Bolts (A) by using Allen Wrench (C) fully as shown.
Hardware & Tools required
STEP 4:
Attach Right Arm (5) to the side of Seat Frame (6) by using 4 pieces of Bolts (A) with 4 pieces of Flat Washers
(B) as shown.
Tighten Bolts (A) by using Allen Wrench (C) fully as shown.
Hardware & Tools required
A
x 4 x 4
B
x 1
C
A
x 4 x 4
B
x 1
C
A
C
B
6
4
FRONT
BACK
6
A
C
B
