EEI-3270 ARMLESS CHAIR/EEI-3318 OTTOMAN/EEI-3319 CORNER
Customer Service 609-256-9000︱www.modway.com

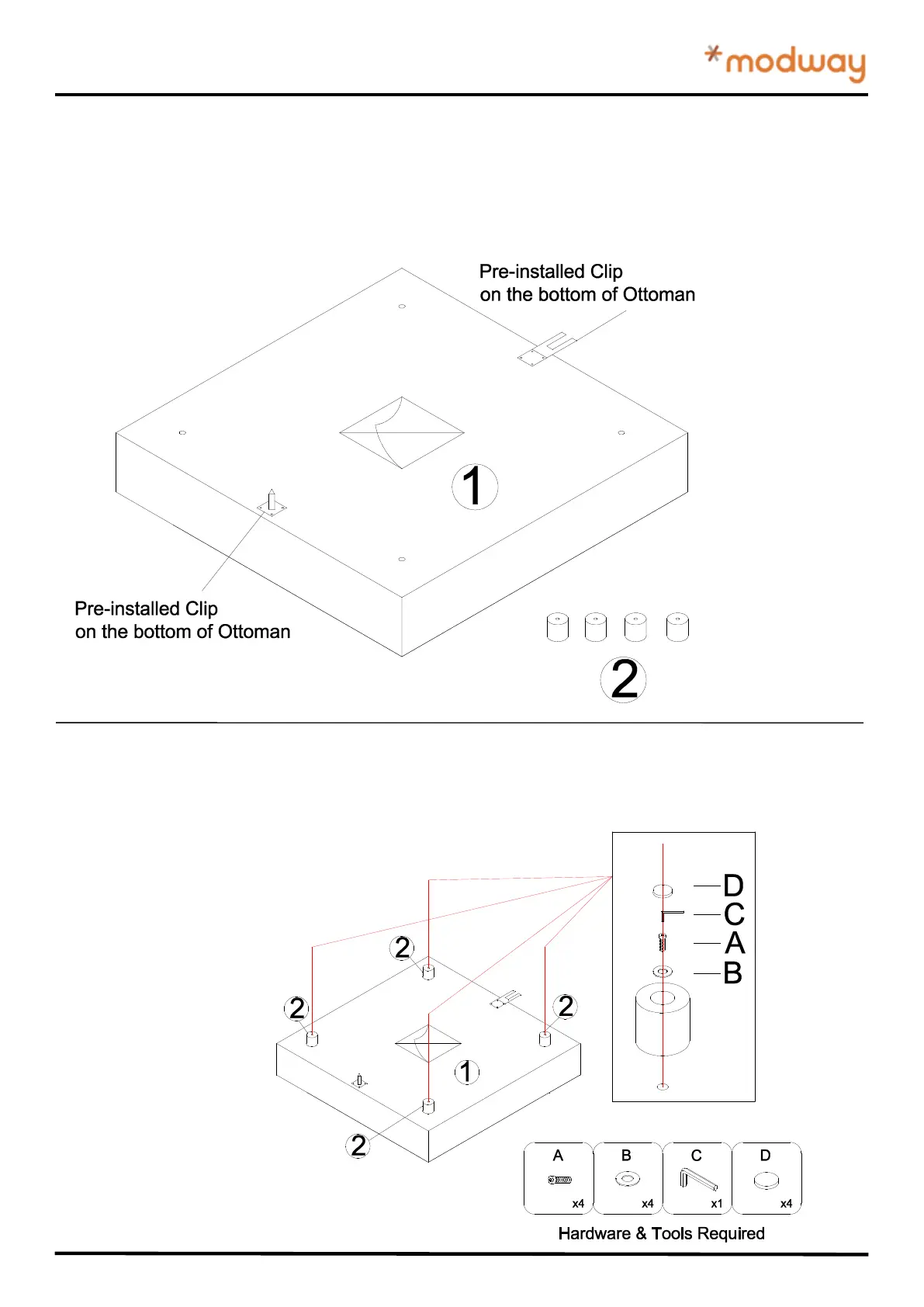

STEP 1:
THE ASSEMBLY STEPS OF EEI-3270 ARMLESS CHAIR/ EEI-3318 OTTOMAN/ EEI-3319 CORNER ARE
THE SAME. THE FOLLOWING ILLUSTRATION SHOWS THE ASSEMBLY STEPS OF EEI-3318 OTTOMAN.
1. Please put Ottoman Body (1) on a carpeted or padded surface.
2. Open the Zipper strip on the bottom of the Ottoman Body (1) and take out the 4 pieces of Legs (2) and
hardware bag.
STEP 2:
1. Attach 1 piece of Leg (2) to the bottom of Ottoman Body (1) by using 1 piece of Bolt (A) and
1 piece of Flat Washer (B) as shown. Repeat the same steps for other 3 pieces of Legs (2).
2. Tighten Bolts (A) by using Allen Wrench (C) as shown.
3. Tear off the cover of the Felt Pad (D) and attached it on the
bottom of the leg after tighten all Bolts (A) as shown.
To Next Page
