modway Nolan EEI-6639 - Page 13

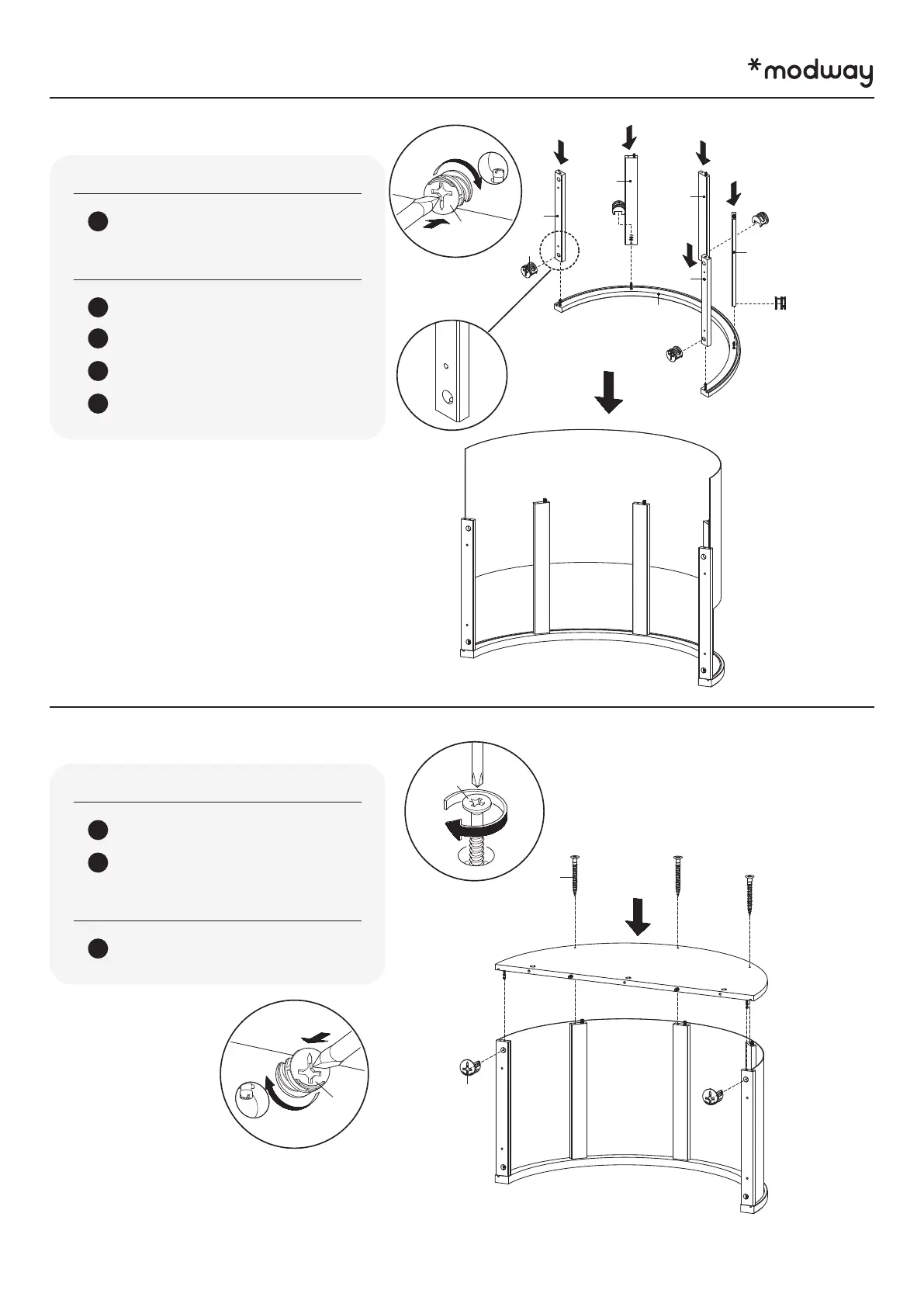

Step 19
PAGE 13 OF 18
x5
Cam Lock Ø15 mm
B
HARDWARE
C OMPO NENTS
x2
Support Board 1 Hutch
10
x3
Support Board 2 Hutch
11
x1
Front Board Hutch
12
x1
PVC Board
14
14
B
Step 20
x2
Cam Lock Ø15 mm
B
x3
Screw M 8 x 39 mm
E
HARDWARE
C OMPO NENTS
x1
Back Board Hutch
13
B
B
E
E
13
12
10
10
11
11
11
B
