modway Viola EEI-3373 - Step 1: Attaching the Back; Fit Wood Dowel into Back; Secure Back to Arm

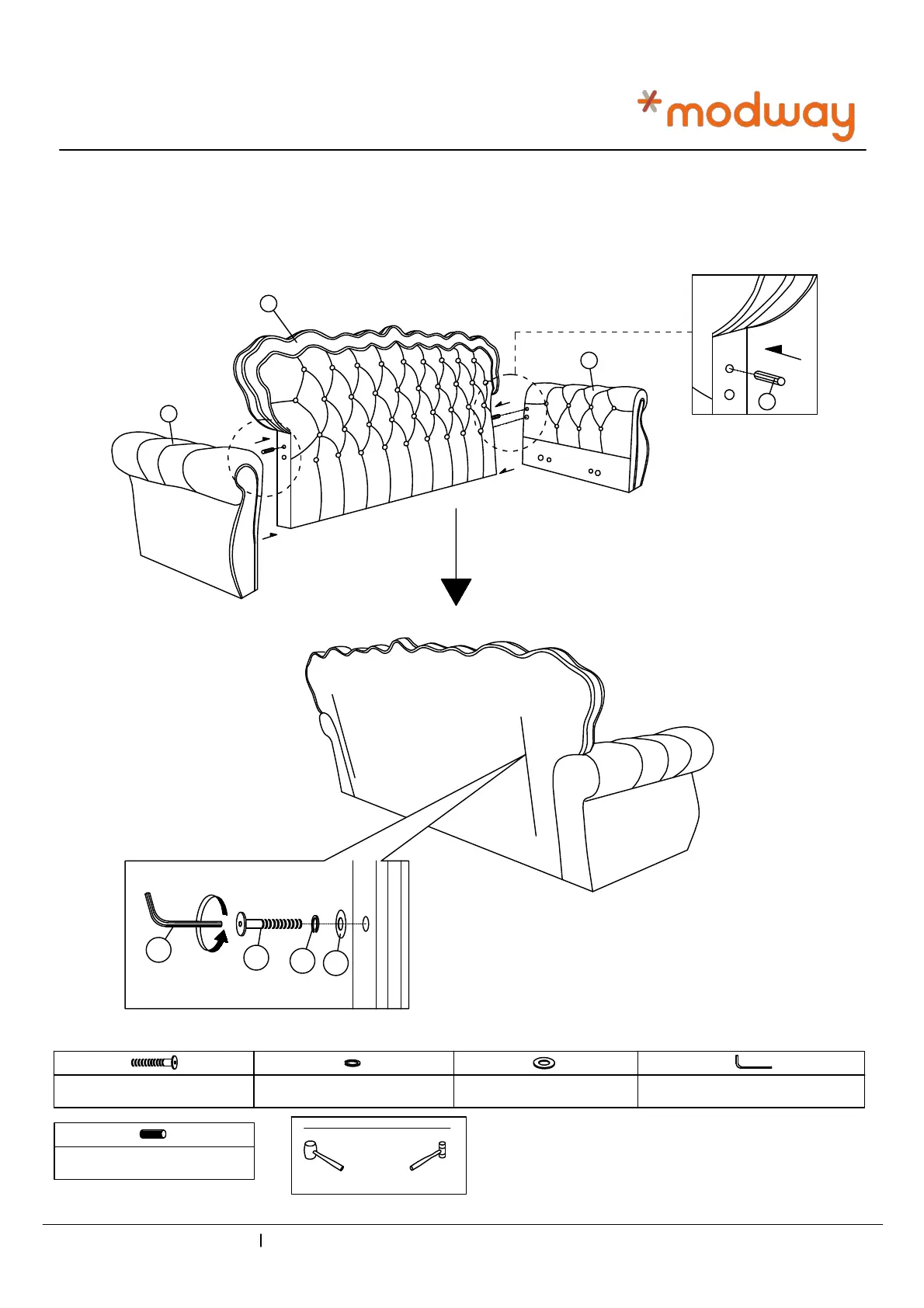

STEP 1
EEI - 3373 SOFA
1.1 Fit the Wood Dowel (8) into the pre-drilled hole of the Back (A) .
1.2 Insert and secure the Back (A) to the Arm (C) using 1 piece of JCBC Bolt (1), 1 piece of Flat Washer (4), and 1 piece of Spring
Washer (5). Use Allen Key (9) to tighten. (Note: Do not fully tighten until all bolts are secure). Repeat steps for the other side of the Arm.
1. JCBC BOLT M6 x 70 x 2pcs
5. SPRING WASHER M6 x 2pcs 4. FLAT WASHER M6 x 2pcs
9. ALLEN KEY (BALL SHAPE) M4 x 1pc
8. WOOD DOWEL M10 x 30mm X 2PCS
OR
TOOLS REQUIRED FOR ASSEMBLY
Rubber Mallet
Plastic Tip Hammer
9
1
4
5
x 2
1.1
1.2
A
C
C
8
Page 2 of 4
Customer Service 609-256-9000
www.modway.com
