Target system specific libraries
27
XS40_MoellerFB.lib
You can find the descriptions of the “XS40_MoellerFB” in the
“Function Blocks for XSoft” manual AWB2786-1456GB.
Libraries of the “Lib_CPU101”
Libraries which are required for the XC100 target system are
compiled together in the “Lib_CPU101” library.
The libraries designated with “1)” include functions for the
CANopen fieldbus. The CANopen bus expansion is described in the
application notes regarding the CANopen bus. The application
notes provide information concerning the following topics:
• XC-...-XION: Connection of the XION products (AN2700K18GB)
• XC-...-XC: Network variables (AN2700K19GB)
• Coupling multiple autonomous controls (CAN-Device) via
CANopen (AN2700K20GB).
• Engineering of CAN stations(AN2700K27GB).
“Counter.lib” library:
The COUNTER library provides functions in order to integrate the
XIOC-1CNT-100KHZ and XIOC-2CNT-100KHZ counter modules in
the XC100 system.
The description of the COUNTER library can be found in the
“Function blocks for XSoft“AWB2786-1456GB manual in the
“Counter modules: counter.lib” section.
“RTCLib” library
The “RTCLib” library provides read and write functions for access
to the real-time clock.
The description of the “RTCLib” library can be found in the
“Function blocks for XSoft“AWB2786-1456GB manual in the
“Clock modules: RTCLib.lib” section.

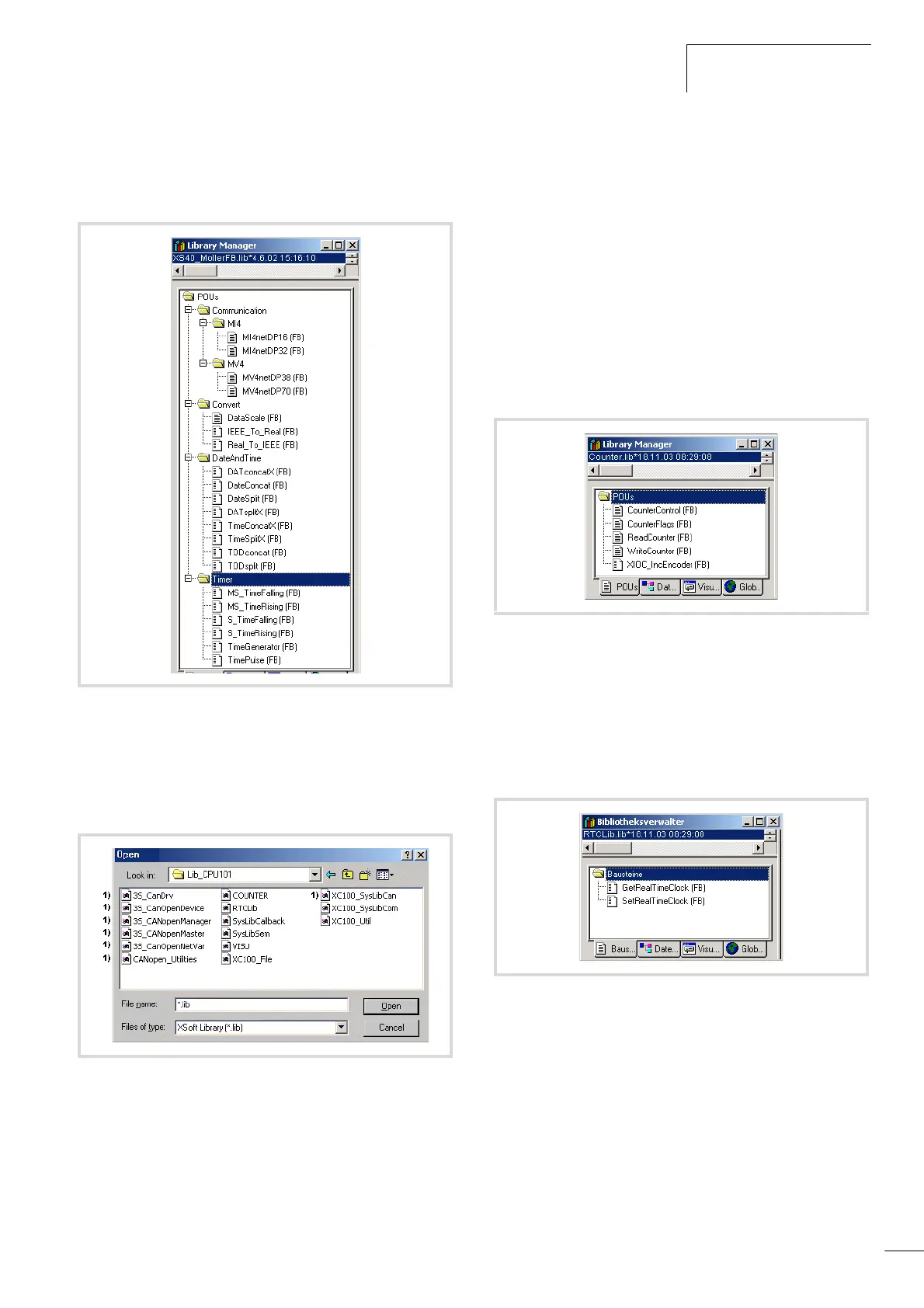

Figure 30: Function blocks of the “XS40_MoellerFB.lib”
Figure 31: Function blocks of the “Lib_CPU101”
Figure 32: Function blocks of the “Counter.lib”
Figure 33: Function blocks of the “RTCLib.lib”
