03/05 AWB2724-1453G

Procedure

X Double-click on the directory “Controller configuration”.

Another window is opened: “PLC configuration”:

X Click on the register card “Additional parameters“.

A window appears with the default values for the “XC-CPU101-

C64K-8DI-6DO”.

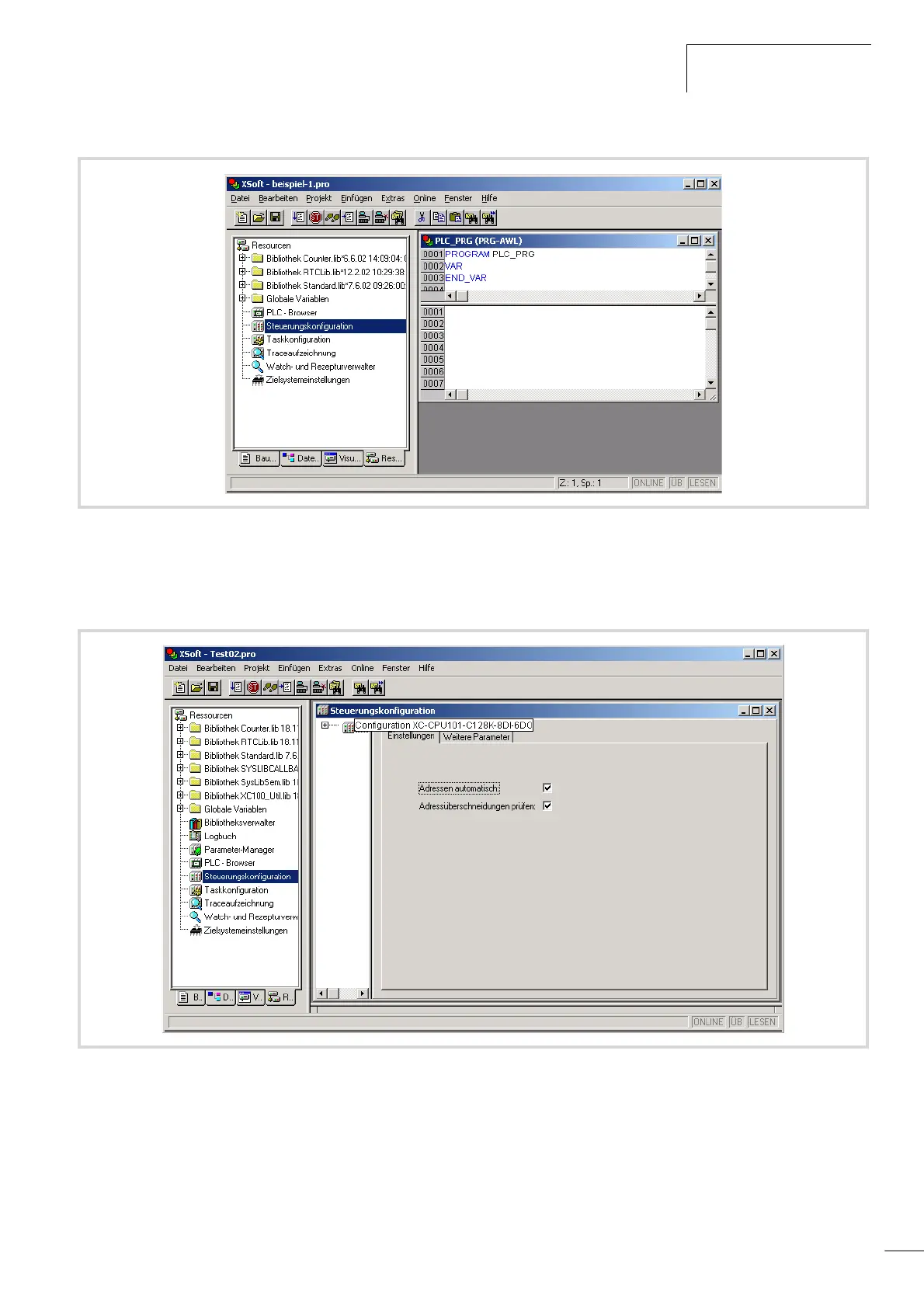

Figure 67: Configure XC100 controller

Figure 68: Basic configuration of the XC100 – settings
