ImageXpress Micro High Content Imaging System Options User Guide
32 5014166 D
Tip stripper. Used for ejecting tips.
Waste bin. Used to contain ejected tips and discarded liquid.
Doors with safety interlocks. Prevents doors from being opened
during operation.

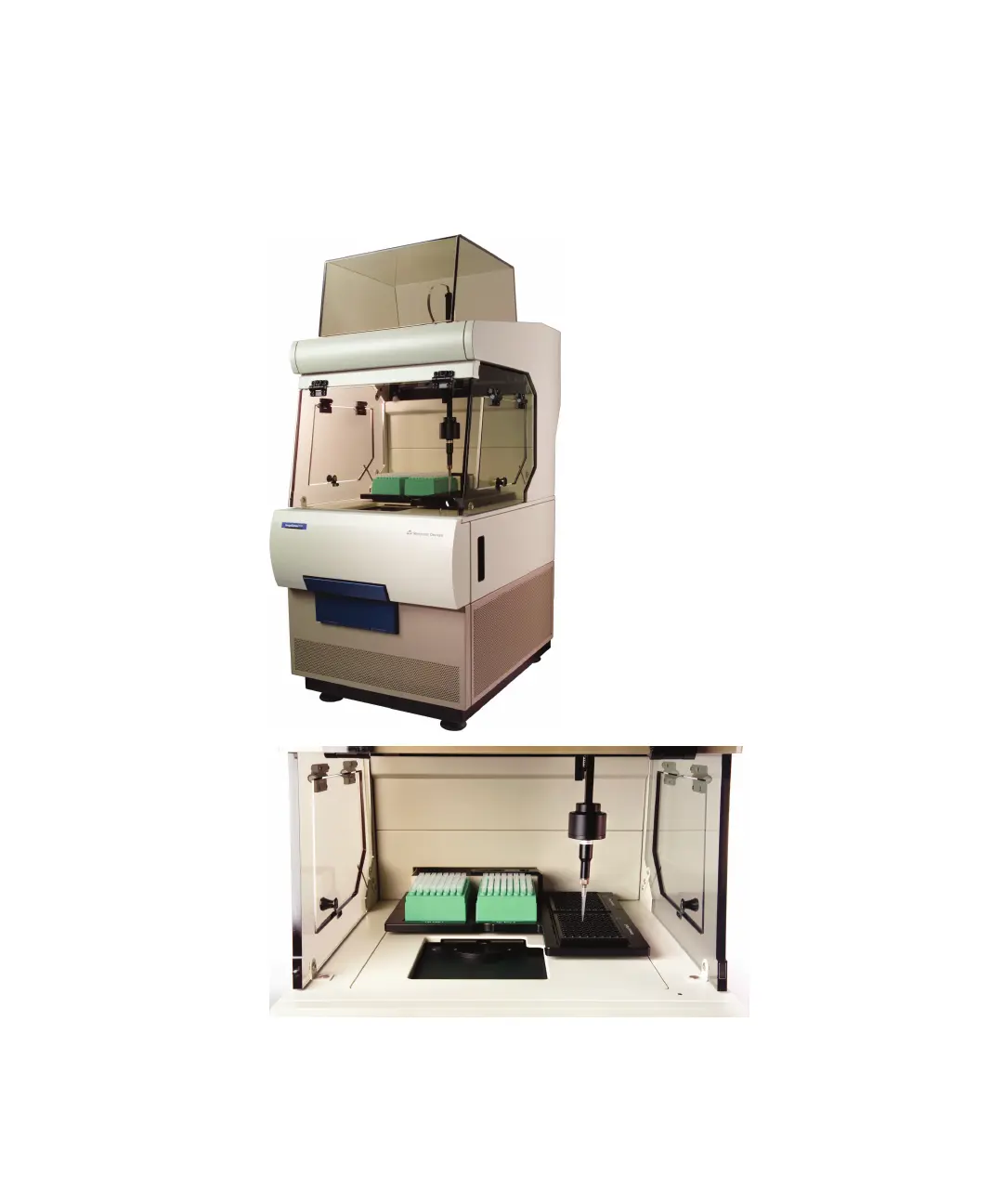

Figure 2-1: Fluidics hardware
ImageXpressOptionsUserGuide.book Page 32 Wednesday, September 9, 2015 3:54 PM
