Environment Control Option Operations
5014166 D 23
Doing Timelapse Experiments
The ImageXpress Environment Control option incubates live cells,
enabling imaging experiments to be performed over hours or days. Wells
can be imaged repeatedly at fixed time intervals, and movies can be
constructed from a series of images.
To Set Up a Timelapse Experiment
1. In the MetaXpress software, click Screening > Plate Acquisition
Setup.
2. In the Plate Acquisition Setup dialog, in the Configure tab, open
the Acquisition tab. See
Figure 1-12.

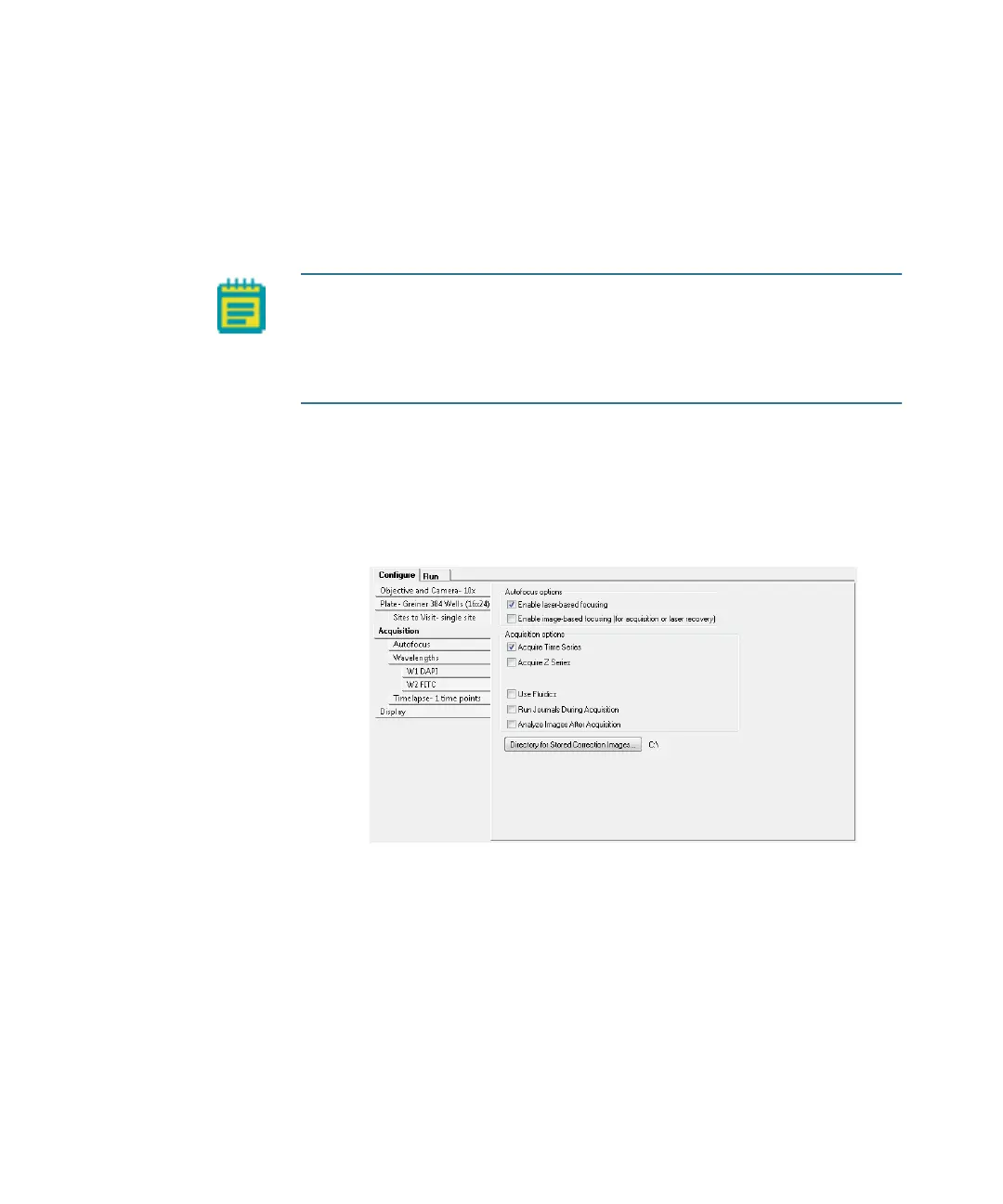

Figure 1-12: Acquire Time Series
3. Select Acquire Time Series.
Note: In a timelapse experiment, the time starts when the first well is
acquired. If the acquisition time exceeds the time specified for the
timelapse experiment, the system proceeds as fast as possible. As a
result, the time between time points might not match the time
specified, but timestamps on images are accurate.
