10
CALIBRATION

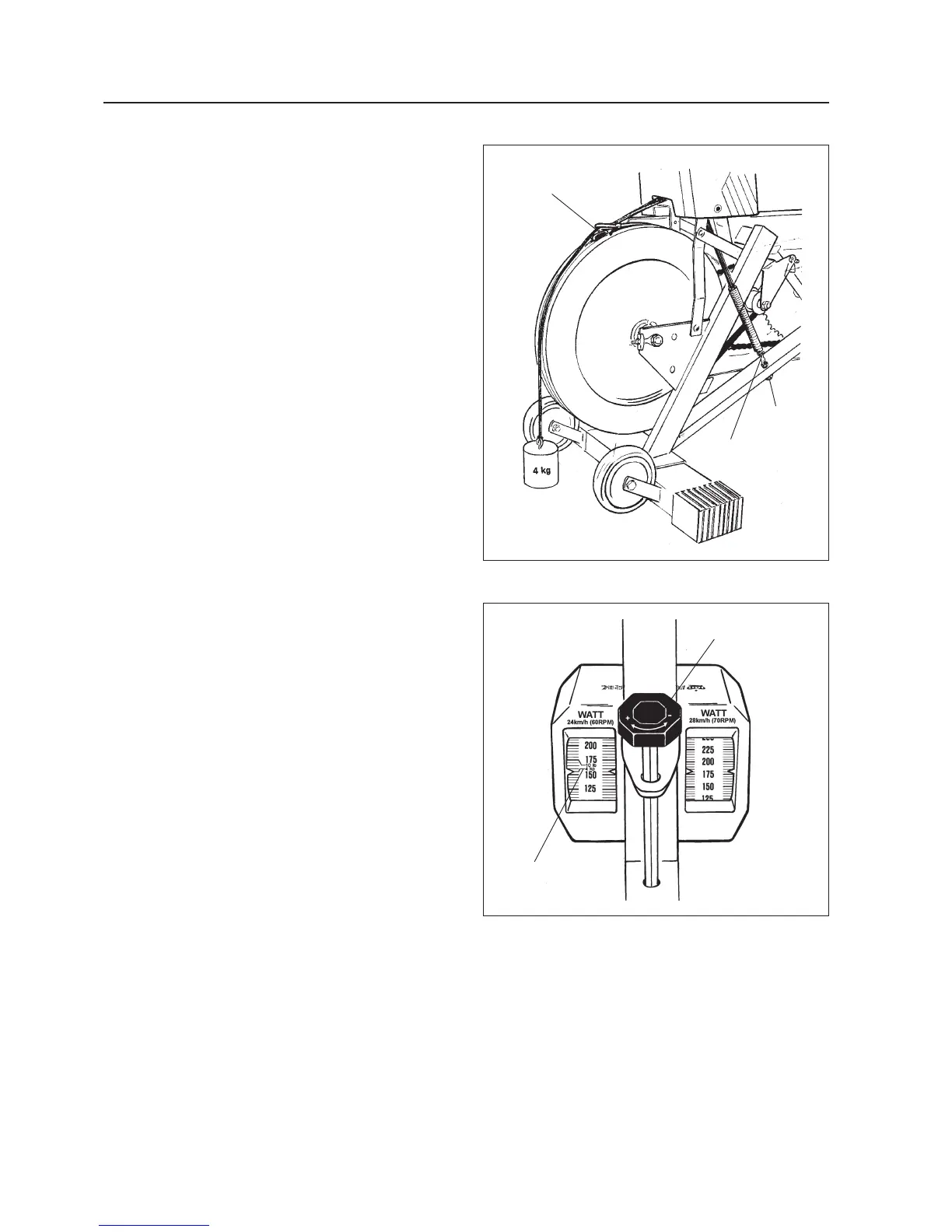

Fig 12
Fig 11
Adjust the tension handwheel so that there is no ten-
sion in the brake belt.
Fasten a 4 kg weight (our part no 9000-211) around
the joint clamp. See fig 11.
When correctly set the weight – 4 kp – will be read on
the scale for watts – 60 rpm. See fig 12. Should there
be a deviation, dismantle the left cover. See page 12.
Adjust into the correct position by means of the adjus-
ting screw and locking nuts. See fig 11.
4 kp
Joint clamp
Adjusting screw
Locking nut
Tension
handwheel
