REPLACEMENT OF THE FREEWHEELING SPROCKET

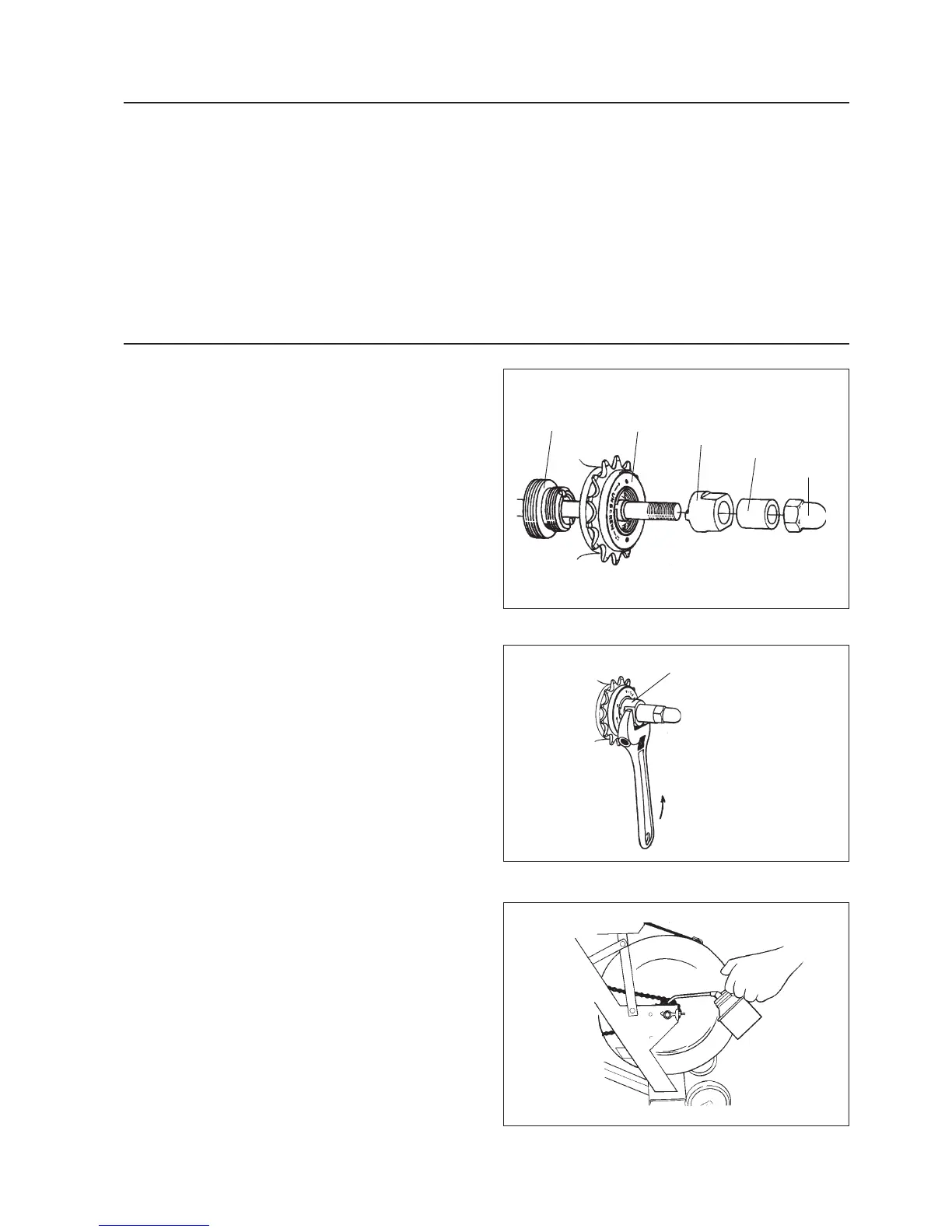

Fig 20
Dismantle the covers and the chain. Loosen the axle
nuts as described on page 12.
Lift off the wheel and remove the axle nut, washer,
chain tensioner and spacer on the freewheel side.
Place the remover (our part no 9100-14) in the adap-
ter and place the spacer and axle nut outside. See fig
20 and 21.
Please note! Do not tighten the axle nut completely. It must
be possible to loosen the adapter–sprocket half a turn.
Replace sprocket–adapter and assemble the other parts
in reverse order according to above points.
The sprocket should be lubricated with a few drops of
oil once or twice a year. Tilt the cycle somewhat to
make it easier for the oil to reach the bearing. See fig
22.
Axle nut
Spacer
Remover
Sprocket
Adapter
Remover
CRANK BEARING
The crank bearing is long term greased and needs nor-
mally no supplementary lubrication. If problem ari-
ses, please contact your Monark dealer.
Fig 21
Fig 22
