MZ INSTALLATION & MAINTENANCE
The MZ can be supplied with a standard length flue,
which can be used to run through a wall up to three
feet thick directly behind the MZ. For greater lengths,
specify with your order.

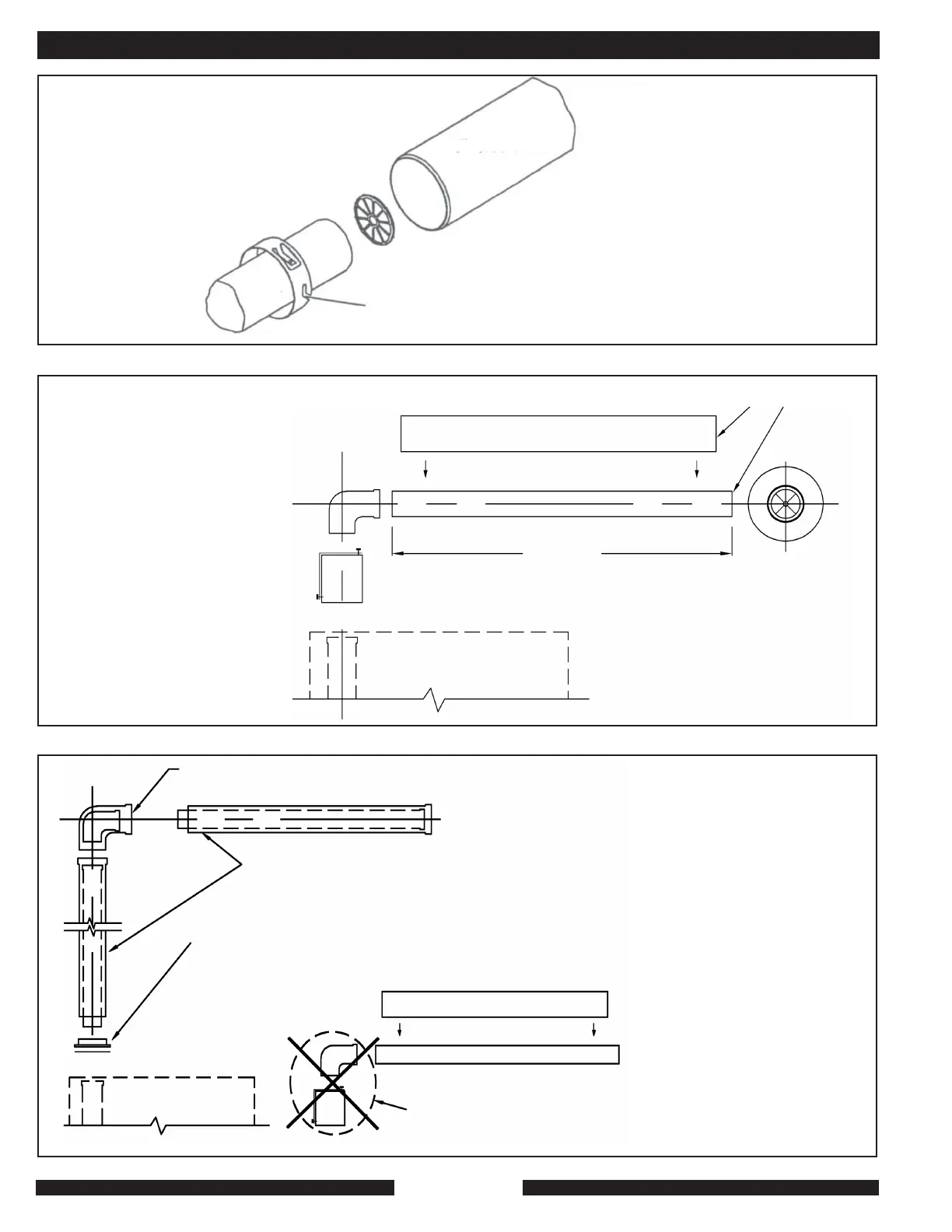

HORIZONTAL CONCENTRIC VENTING: SHORT VENT RUNS
9051 Horizontal Flue Kit
HORIZONTAL CONCENTRIC VENTING: UP AND OVER LONG VENT RUNS
This arrangement recom-
mended for vent runs longer
than 4 feet.
Order lengths of 9504 to com-
plete desired vent lengths.
INSTALLATION AND TECHNICAL
PVC dia. 110
Dia. 4.33”
Positioning slot
Polypropylene dia. 75
Dia. 2.95”
This arrangement recommended
for vent runs shorter than 4 feet.
This arrangement can be termi-
nated through wall left, right, or
rear.
This end is final
wall termination
End view
(assembled)
Intake pipe - slides over exhaust pipe
39.36”
1 meter
MZ Heating System
9504 Exhaust pipe inside intake pipe
(cut length as needed)
9503 Exhaust elbow inside intake elbow
9520 Adapter and gasket
9501 Still needed for termination
DO NOT USE
* Note: Direct connection of # 9503
MZ Heating System
To Next Page
