29
www.monitorproducts.com
APPENDIX B
VI I. APPENDIX B
PARTS:
The MZ is an exceptionally well-built device. All of the
components selected for the MZ are the most reliable
available. No matter how well built and reliable a product is,
parts are inevitably needed. We are committed to making
parts readily available for the MZ through your distributor,
even though they should seldom be needed.
REQUIRED PARTS LIST
PART# 9016 IGNITION MODULE
PART# 9020 IGNITION TRANSFORMER
PART# 9043 TRANSFORMER
PART# 9019 FAN
PART# 9015 FLOW SWITCH FOR 25 SERIES
PART# 9039 FLOW SWITCH FOR 40 SERIES
PART# 9007 ADJUSTABLE LIMIT SWITCH
PART# 9011 RELIEF VALVE
PART# 9005 GAS VALVE
The following parts are specific to the MZ25S:
PART# 9008 DHW AQUASTAT
PART# 9018 THREE-WAY VALVE OPERATOR
Full stock of the remainder of the parts
for the MZ line is available from the source
of your MZ.

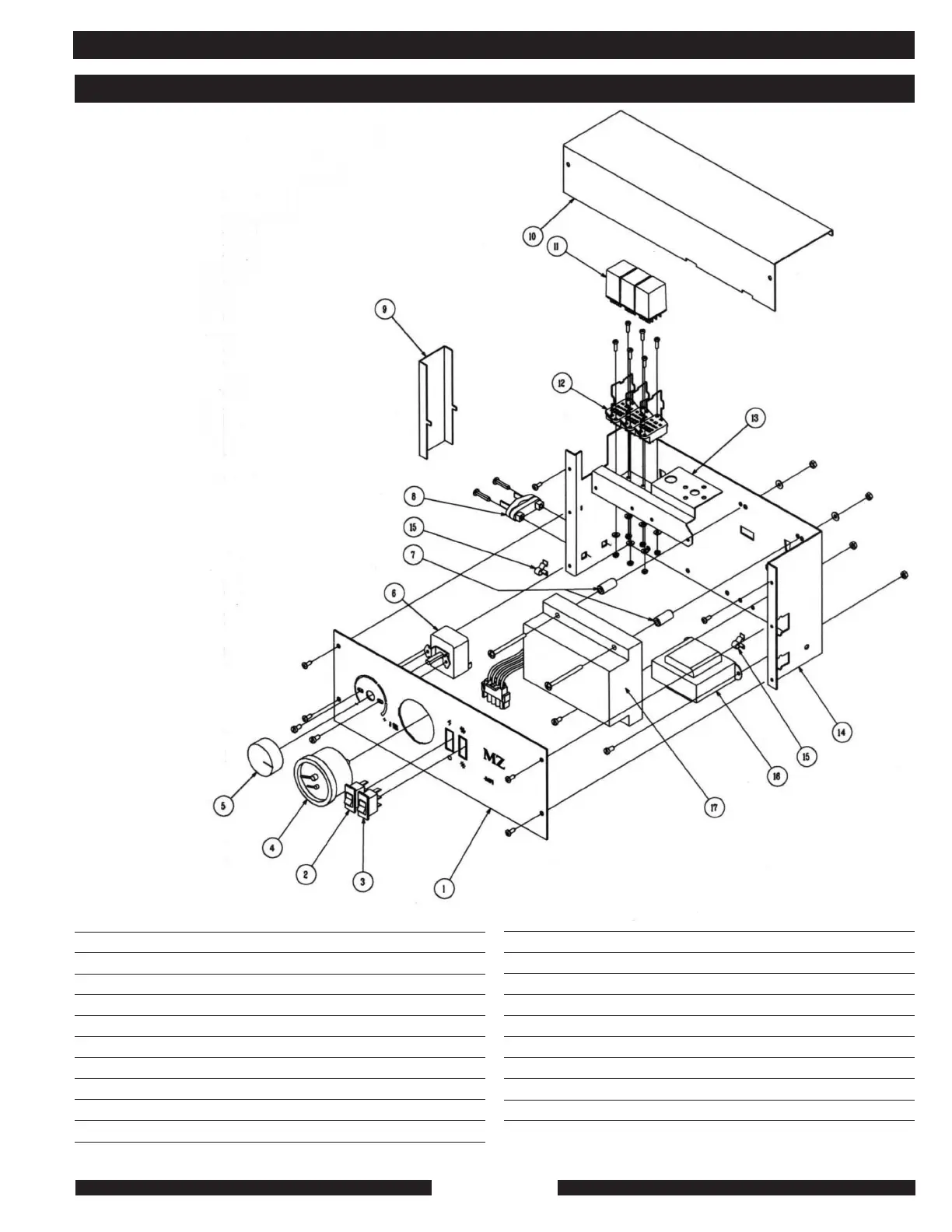

CONTROL PANEL MZ25C/S
11 9001 RELAY, 24V COIL
12 Reference Only RELAY CARRIER & STIRRUP
13 Reference Only FOLDED RELAY HOLDER
14 Reference Only WHITE CONTROL BOX
15 9061 CLIP
16 9043 TRANSFORMER 120 TO 24 VOLTS
17 9070 CONTROL BOX
* Reference Only SAFETY BOX WIRED
* 9017 CONTROL PANEL INCLUDING WIRING
*NOT SHOWN ON DRAWING
DESCRIPTION
1 Reference Only FRONT COVER & STICKER
2 9055 ON/OFF SWITCH
3 Reference Only SUMMER/WINTER SWITCH
4 9051F THERMOSTAT GAUGE FAHRENHEIT)
5 9053 KNOB
6 9007 SYSTEM THERMOSTAT 20-80º C
7 Reference Only ZINC DISC D 4XX10X0,8
8 Reference Only WIRE ROPE CLAMP
9 Reference Only FOLDED NECK FOR WIRES
10 Reference Only COVER FOR CONTROL BOX
ITEM
#
PART
NUMBER
ITEM
#
PART
NUMBER
DESCRIPTION
