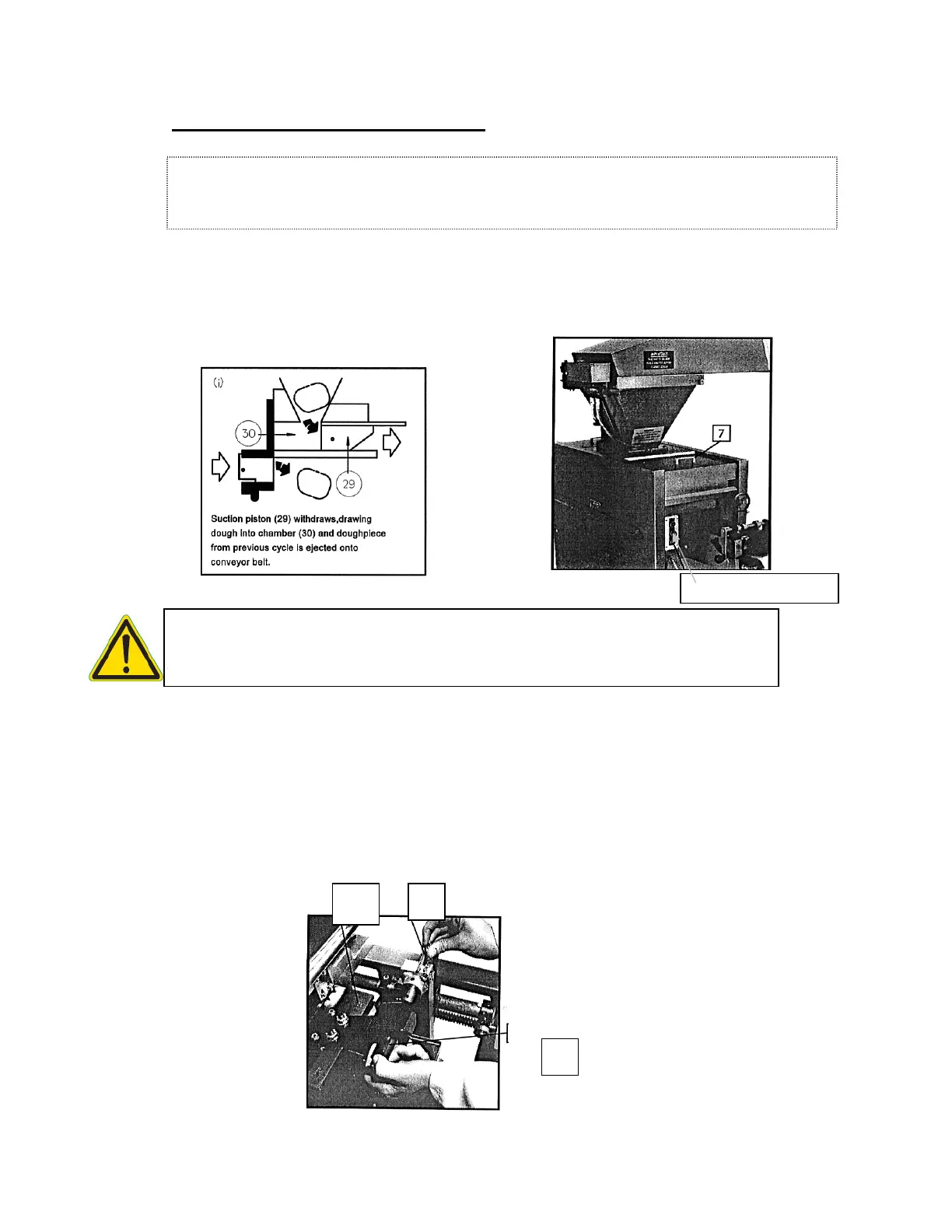

DIVIDING HEAD ASSEMBLY
Note: The dividing head components are machined to extremely fine tolerances and
the greatest possible care must be taken to ensure these parts are not knocked,
scratched or damaged.
1 SWITCH ON ISOLATOR.
Start machine briefly and "inch" machine using inching button (6) until knife
and piston are fully withdrawn (position (i) of dividing cycle) then stop and
isolate machine from mains supply.
WARNING:
Internal parts can still move causing injury, even if machine is turned
off and isolated.
2 Lift off cover (7).
3 Withdraw locking pin (8) and remove actuating pin (9).
4 Remove knife (25).
5 Place knife on clean surface, scrape down across the faces using plastic
scraper and wipe off all foreign matter.
INCH BUTTON (6)
25
