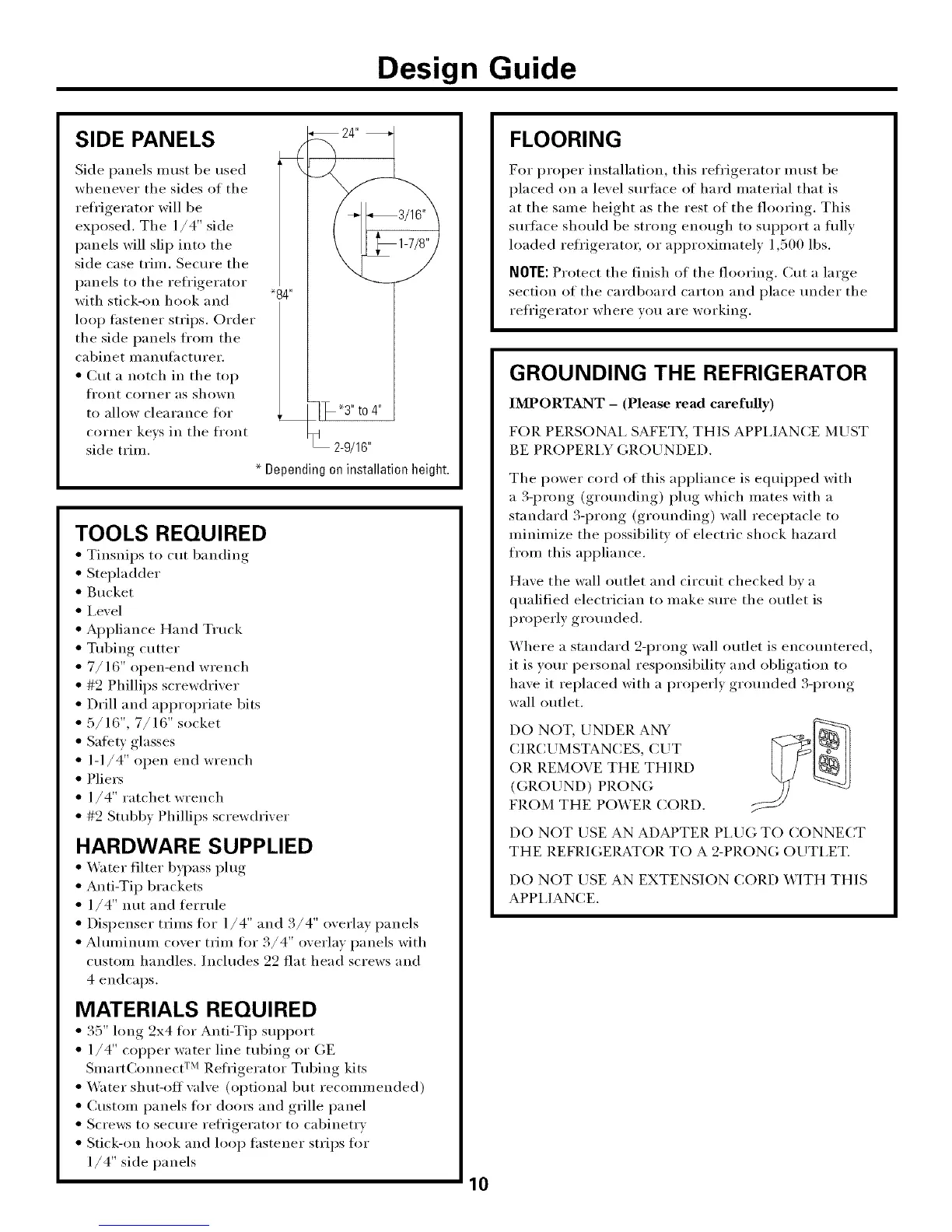

Design Guide
SIDE PANELS
Side panels must be used
whenever the sides of the
refrigerator will be
exposed. The 1/4" side
panels will slip into the
side case trim. Secure the
panels to the refrigerator
with stick-on hook and
loop fastener strips. Order
the side panels from the
cabinet manufi_cturer.
• ()it a notch in the top
fl'Oil[ coi'ilei" _lS showil
to allow clearance fin.
corner keys in the ti'ont
side trim,
_84"
, 3? _3" to 4"
2-g/16"
Dependin0 on installation heiflht.
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• I,evel
• Appliance Hand THick
• Tubing cutter
• 7/16" open-end wrench
• #2 Phillips screwdriver
• Drill and ai)i)ropriate bits
• 5/16", 7/16" socket
• Safety glasses
• l-I/4" open end wrench
• Pliers
• 1/4" ratchet wrench
• #2 Stubby Phillips screwdriver
HARDWARE SUPPLIED
• _hter filter bypass I)lug
• Anti-Tip brackets
• l/4" Iltlt alld teritlle
• Dispenser trims for 1/4" and 3/4" overlay panels
• A1tli/liiltlill cover tiiil/ tor 3/4" overlay panels with
custom handles. ]nchldes 22 fiat head screws and
4 endcaps.
MATERIALS REQUIRED
• 35" long 2x4 fl>r Anti-Tip suI)port
• 1/4" copper water line tubing or GE
Si//artCoililect TM Refl'igerator Tubing kits
• _4"_ter shut-offwflve (optional but recommended)
• Custom panels for doo_ and grille panel
• Screws to secm'e refl'igerator to cabinett T
• Stick-on hook and loop fastener strips tor
1/4" side panels
10
FLOORING
For proper installation, this refl'igerator must be
placed on a level sm'tace of hard material that is
at the same height as the rest of the flooring. This
sm'lace should be strong enough to support a flfllv
loaded refl'igerator, or approximately 1,500 lbs.
NOTE:Protect the finish of the flooring. Cut a large
section of the cardboard carton and place trader the
refl'igerator where w)u are working.
GROUNDING THE REFRIGERATOR
IMPORTANT - (Please read carefully)
FOR PERSONAI, SAFETY, THIS APPI,IANCE MUST
BE PROPERI,Y GROUNDED.
The power cord of this appliance is equipped with
a 3-prong (grotmding) plug which mates with a
standard 3-prong (grotmding) wall receptacle to
minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked bv a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is encotmtered,
it is yore" personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet,
DO NOT, UNDER ANY f--,a _-)
y<
CIR(:UMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POX_ ER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFIIIGERATOII TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPI,IANCE.
To Next Page
