Monogram ZlS360N - Raised Overlay Panel Design

Design Guide
DISPENSER MODELS:

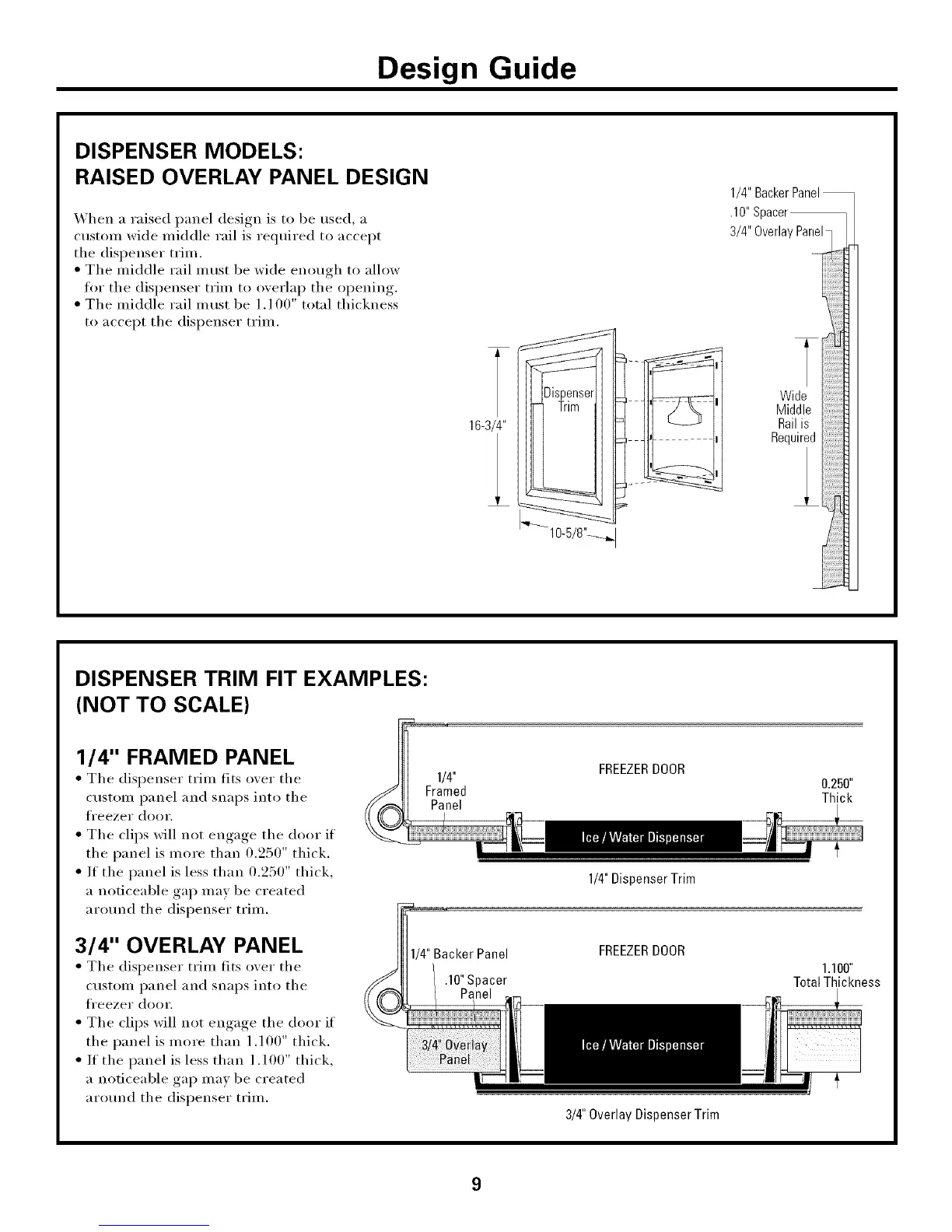

RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
• The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness
to accept the dispenser trim.
16-3/4"
J
Dispenser
Trim
10-5/8%___,.
1/4" Backer
.10"SF
3/4"OverlayPanel
Wide
Middle
Railis
Required
DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 0.250" thick.
• If the panel is less than 0.250" thick,
a noticeable gap may be created
around the dispenser trim.
3/4" OVERLAY PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 1.100" thick.
• If the panel is less than 1.100" thick,
a noticeable gap mav be created
around the dispenser trim.
1/4"
Framed
1/4"Backer Panel
.lO"Spacer
Panel
FREEZERDOOR
1/4"DispenserTrim
FREEZERDOOR
3/4"Overlay Dispenser Trim
0.250"
Thick
1.100"
Total Thickness
