Monogram ZlS360N - 90° Door Swing

Design Guide
Refrigerator

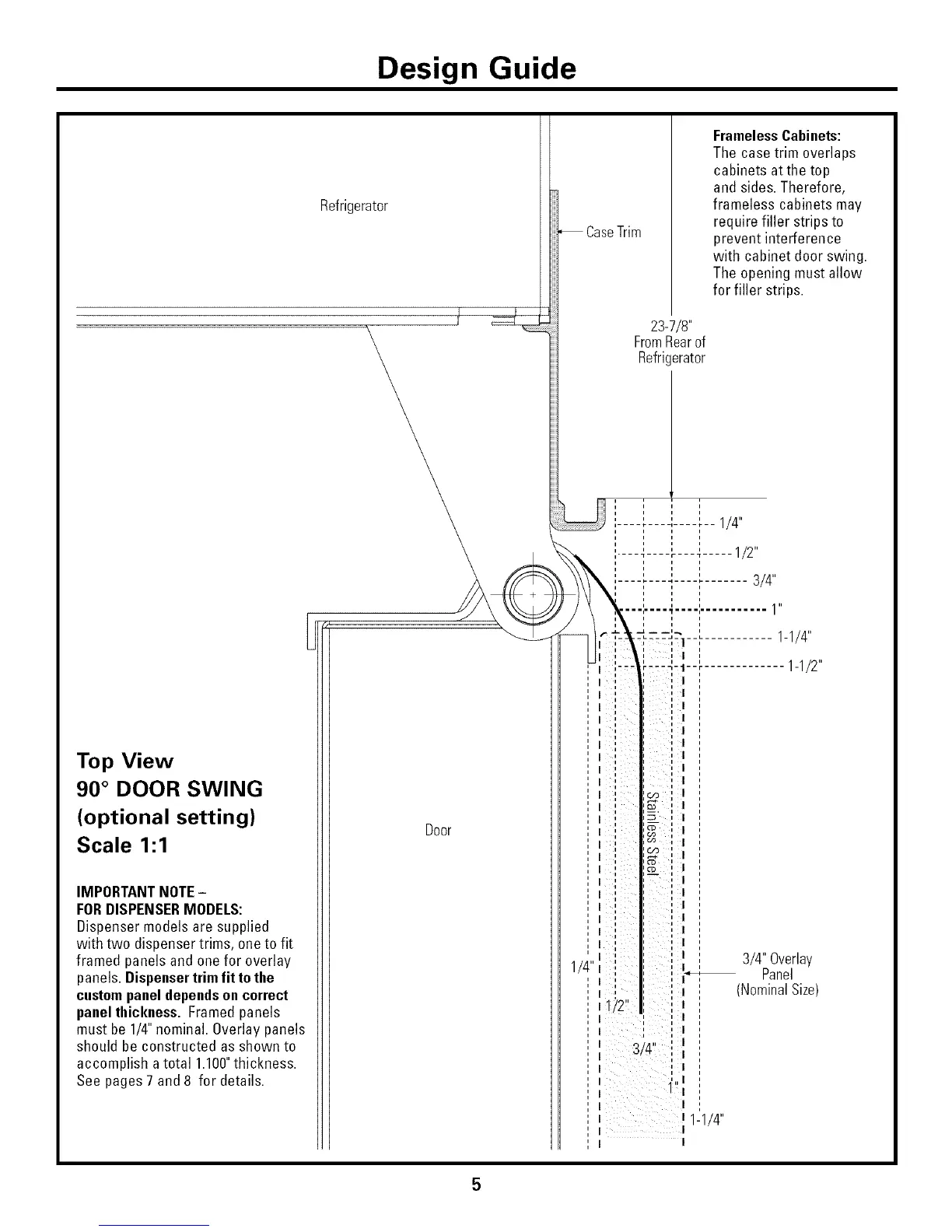

Top View
90 ° DOOR SWING
(optional setting)
Scale 1:1
IMPORTANTNOTE-
FORDISPENSERMODELS:
Dispensermodels are supplied
with two dispenser trims, oneto fit
framed panels and onefor overlay
panels. Dispensertrim fit to the
custompaneldependsoncorrect
panelthickness. Framedpanels
must be 1/4"nominal. Overlay panels
should be constructed as shown to
accomplish atotal 1.100"thickness.
See pages 7 and 8 for details.
Door
CaseTrim
23-7/8"
FromRearof
Refri(erator
FramelessCabinets:
The case trim overlaps
cabinets at the top
and sides.Therefore,
frameless cabinets may
require filler strips to
prevent interference
with cabinet door swing.
The opening must allow
for filler strips.
, b ,
i i i
i i i
' ' ' 1/4"
i i i
1/2"
i I
3/4"
I "
1-1/4"
1-1/2"
l I I , 3/4" Overlay
l ll_ Panel
(NominalSize)
