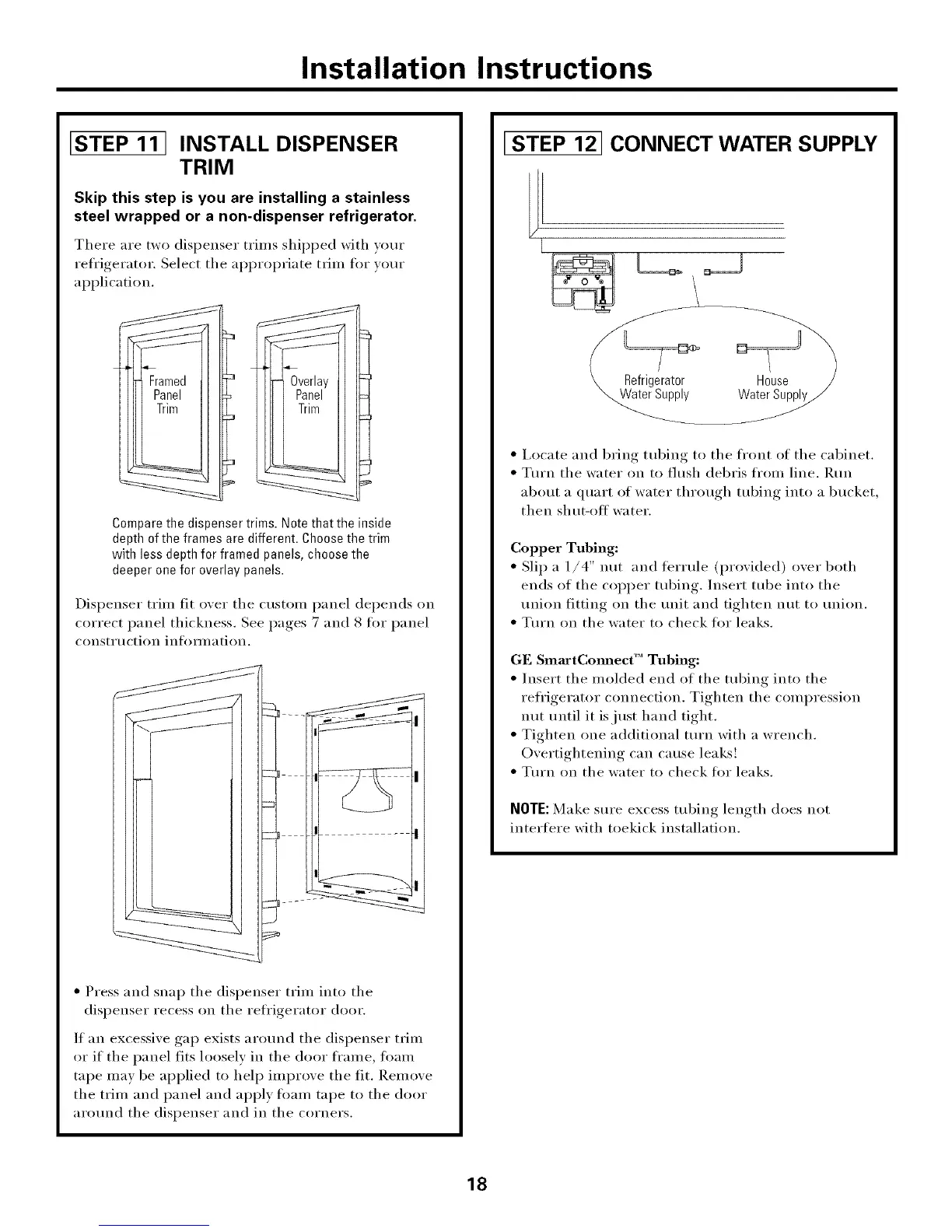

Installation Instructions
[STEP 111 INSTALL DISPENSER
TRIM
Skip this step is you are installing a stainless
steel wrapped or a non-dispenser refrigerator.
There are two dispenser trims shii_ped with )our
refrigerator, Select the ai)i)ropriate tFim fin" _our
application,
Framed
Panel >
Trim
Overlay
Panel
Trim
Comparethe dispenser trims. Note that the inside
depth ofthe frames are different. Choosethe trim
with less depth for framed panels, choose the
deeper one for overlay panels.
Dispenser trim fit o_er the custom panel depends on
correct panel thickness. See pages 7 and 8 for panel
consti tlction infoY/ll ation,
• Press and snap the dispenser trim into the
dispenser recess on the refrigerator door,
If an excessive gap exists around the dispenser t_im
or if the panel fits loosely in the door fl'ame, fi>am
tape may be applied to hel I) improve the fit. Remove
the trim and panel and apply loam tape to the door
around the dispenser and in the corners,
[STEP 12] CONNECT WATER SUPPLY
1[
E
WaterSupply_
• i,ocate and bring tubing to the fl'ont of the cabinet.
• Turn the water on to flush debris fl'om line. Run
about a quart of water through tubing into a bucket,
then shut-ott water.
Copper Tubing:
• Slip a 1/4" nut and tbHule (provided) over both
ends of the COl)per tubing. Insert tube into the
union fitting on the unit and tighten nut to union.
• Turn on the water to check fin" leaks.
GE SmaactCom_ecf'" Tubing:
• Insert the molded end of the tubing into the
refl'igerator connection. Tighten the compression
nut until it is just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Turn on the water to check fin" leaks.
NOTE:Make sure excess tubing length does not
interfere with toekick installation.
18
