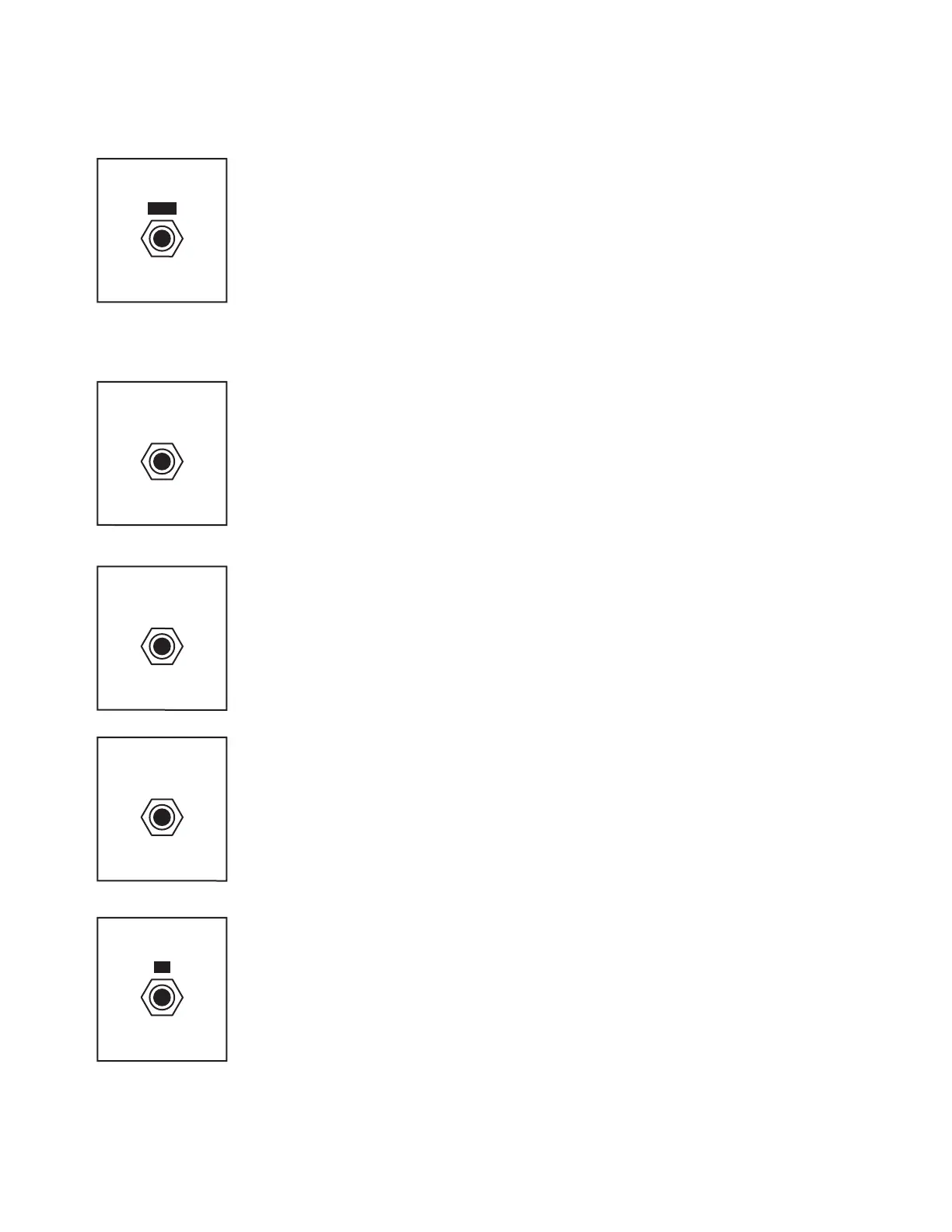

VCW IN
Audio input to the VCW section
AUDIO INPUT: –5V to +5V
VCW FOLD
This is the CV input for VCW FOLD. A positive CV input increases the depth of
wavefolding. It is summed with the VCW FOLD panel control. EG1 is normalled
to the input of this jack; patching an external CV will break the normalled
connection. The EG1/CV AMT knob attenuates incoming CV.
CV INPUT: –5V to +5V
VCW VCA CV
This is the CV input that controls the level of the Voltage-Controlled Amplifier
(VCA) for the VCW section. EG2 is normalled to the input of this jack; patching
a signal to VCW VCA CV will break that normalled connection.
CV INPUT: 0V to +8V
EG1
CV output for EG1
CV OUTPUT: 0V to +8V
MIXER
VCW IN
VCW FOLD
VCW VCA CV
EG1
PATCH BAY (Continued)
MIXER
Audio output from the MIXER
AUDIO OUTPUT: –5V to +5V
