38 | The Patchbay

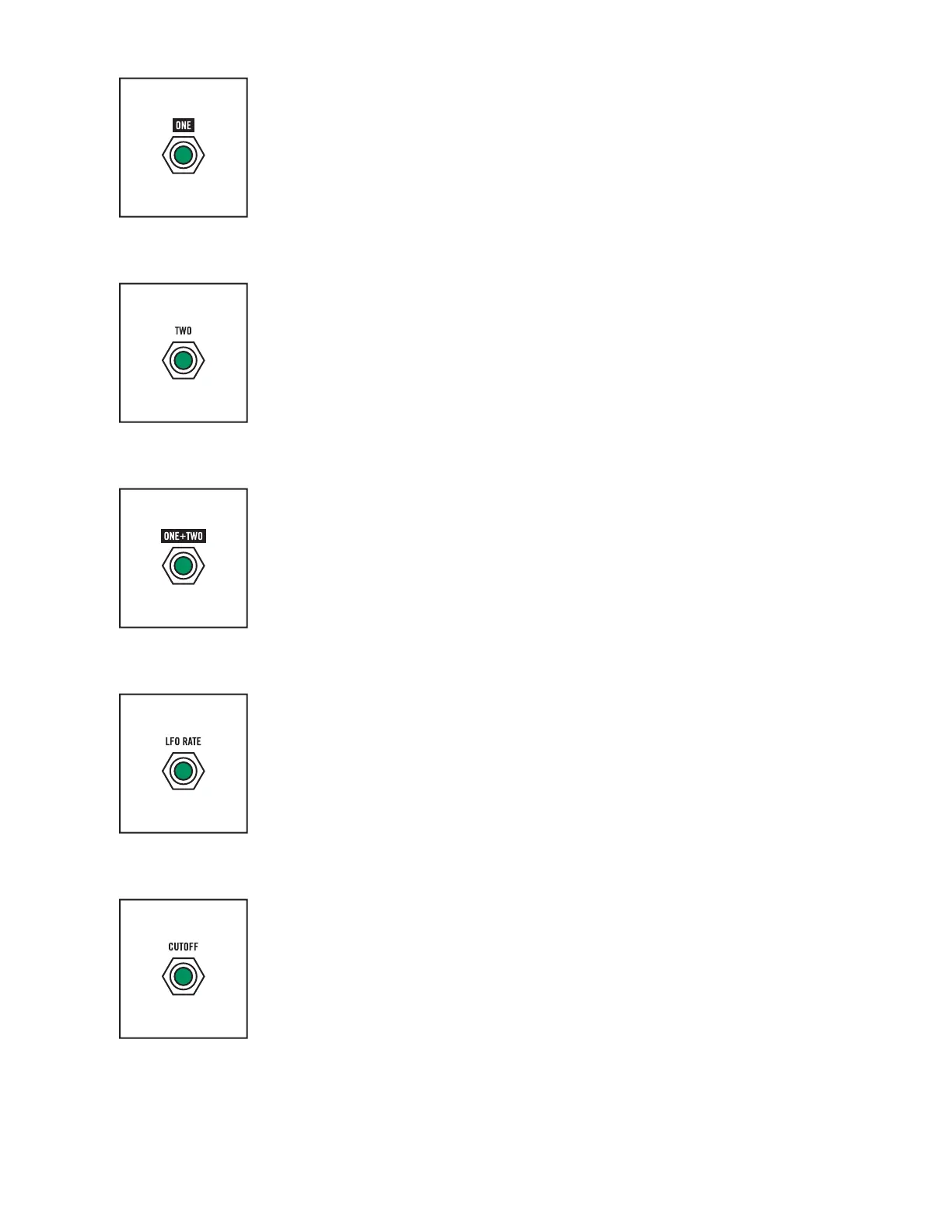

ONE (Mixer Channel 1 output), R3; C3
This jack is the output for Channel 1 of the internal mixer. The level of this output
is controlled by the ONE LVL knob in the Utilities section. For more information,
refer to "The Mixer" (page 43).
CV OUTPUT: -8 V to +8 V
TWO (Mixer Channel 2 input), R4; C3
This jack is the input to Channel 2 of the internal mixer. For more information,
refer to "The Mixer" (page 43).
CV INPUT: -10 V to +10 V
ONE+TWO (Combined Mixer output) R5; C3
This jack carries the output of the utility mixer. The level of Channel 1 is controlled
by the ONE LVL knob in the Front Panel UTL (Utilities). The level of Channel 2 is
set to unity gain. For more information, refer to "The Mixer" (page 43).
CV OUTPUT: -8 V to +8 V
LFO RATE (Low Frequency Oscillator Rate input) R3; C1
This control signal received at this input sums with the LFO RATE knob and
determines the rate, or speed, of the Low Frequency Oscillator.
CV INPUT: -5 V to +5 V
CUTOFF (Voltage Controlled Filter Cutoff Frequency input) R3; C2
This control signal received at this input sums with the Filter CUTOFF knob and
the VCF Modulation signal to determine the value of the VCF Cuto frequency.
CV INPUT: -5 V to +5 V
