39 | The Patchbay

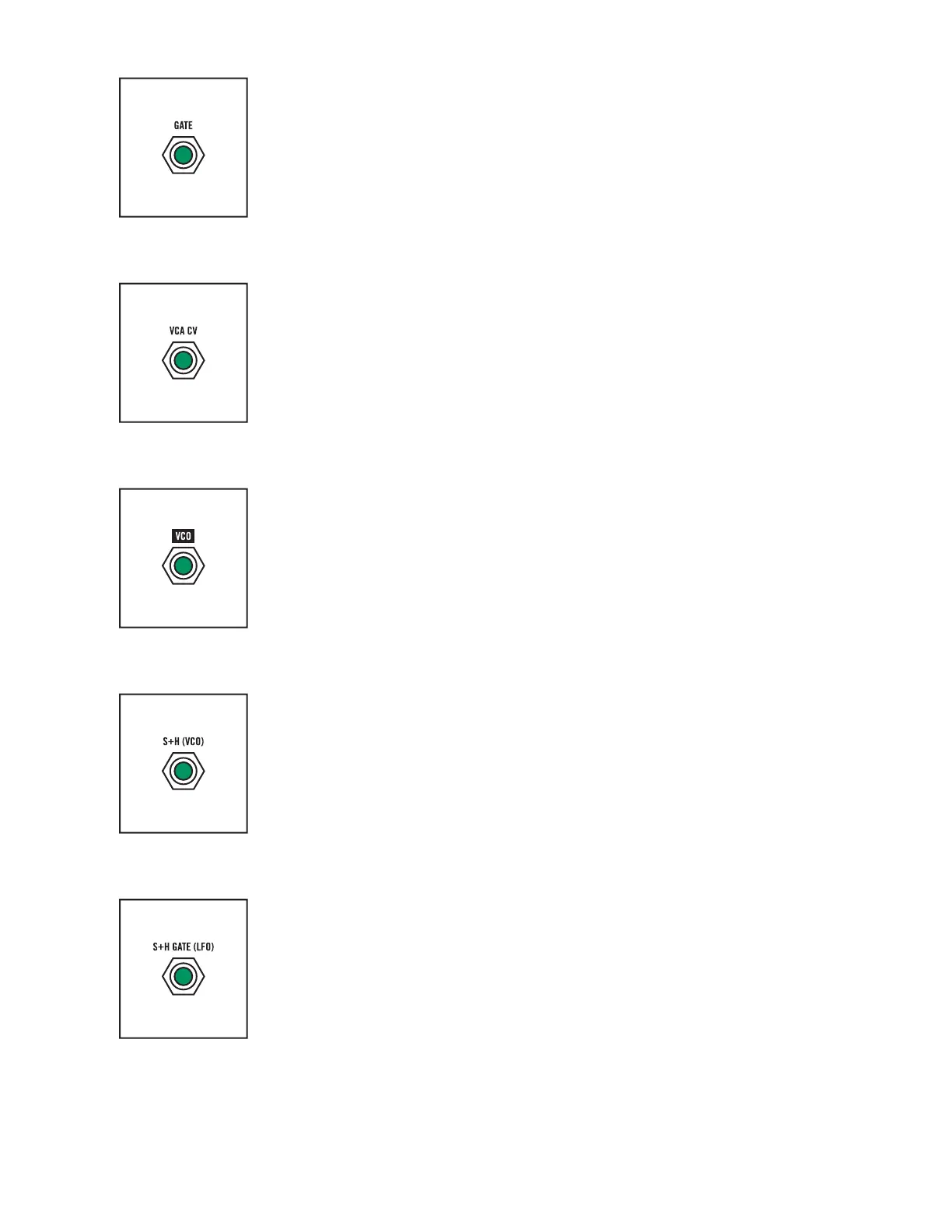

GATE (External Gate input), R4; C1
The control signal received at this input will trigger the EG, and hold the EG at the
Sustain level until the control signal falls to 0.
CV INPUT: 0 OFF (OFF threshold 1.5 V); +5 V ON (ON threshold 3.5 V)
VCA CV (Voltage Controlled Amplifier input), R4; C2
The control signal received at this input will determine the output level of the
VCA. Normally, this control signal comes from the EG, as determined by the
setting of the VCA MODE switch.
CV INPUT: 0 V to +8 V
VCO (Voltage Controlled Oscillator output), R5; C1
This output carries the audio signal of the VCO, based on all the VCO parameter
knobs and settings, as well as any patching, such as to the PWM input jack (R2;
C2) or 1V/OCT input jack (R2; C1).
CV OUTPUT: -5 V to +5 V (10 vpp), typical
S+H (VCO) (Sample+Hold Voltage input), R5; C2
The signal connected to this input provides a changing voltage to act as a
source for the Sample+Hold generator. With no patch cable connected to this
input jack, the VCO is the default source. For more information, refer to
"Sample + Hold" (page 44).
CV INPUT: -5 V to +5 V
S+H GATE (LFO) (Sample+Hold Gate input) R6; C2
The signal connected to this input acts as a Gate for the Sample+Hold generator.
With no patch cable connected to this input jack, the LFO is the default source.
For more information, refer to "Sample + Hold" (page 44).
CV INPUT: 0 V to +5 V nominal; rising edge triggered; protected TTL Schmidt trigger input
