40 | The Patchbay

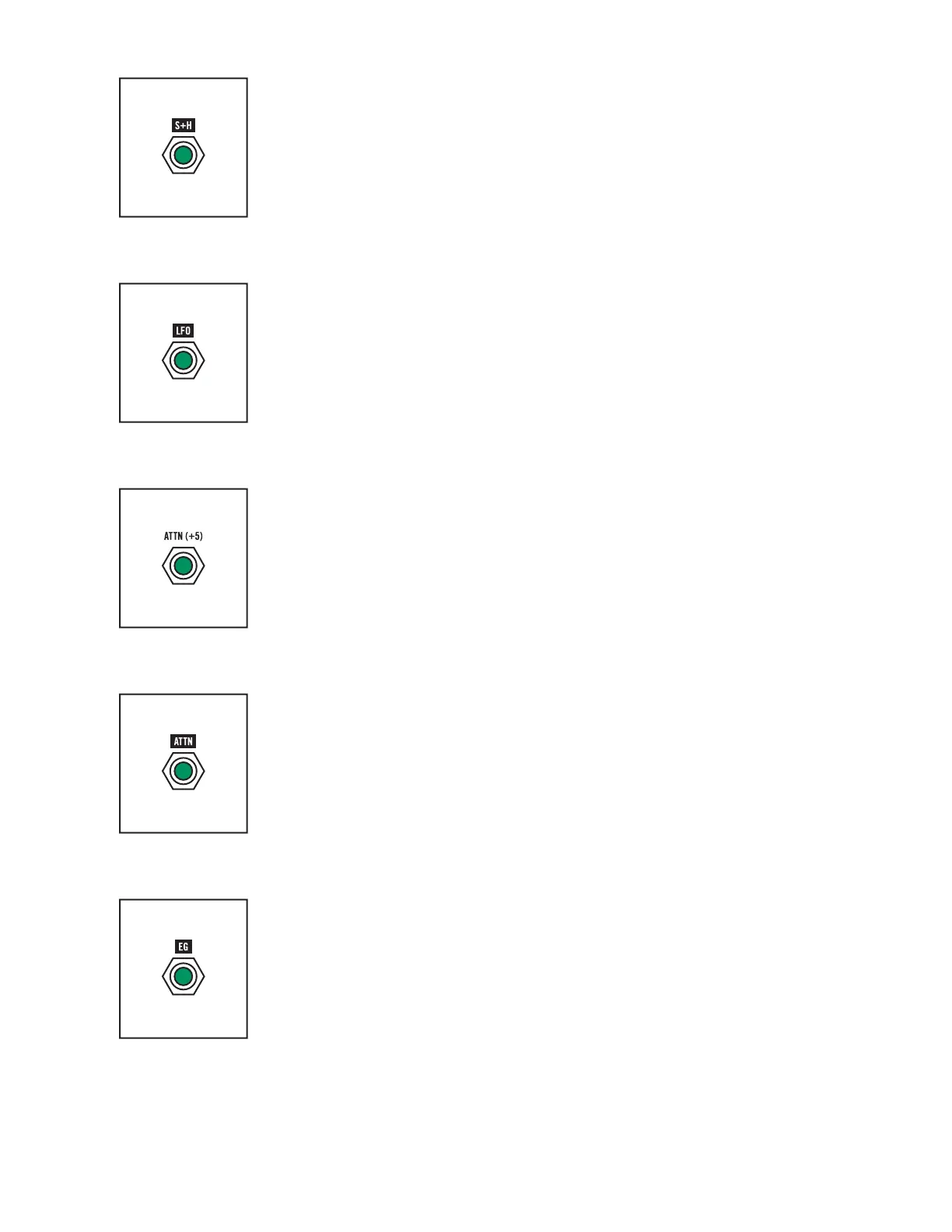

S+H (Sample + Hold output) R7; C2
The output of the Sample + Hold generator is available via this output. For more
information, refer to "Sample+Hold" (page 44).
CV OUTPUT: -5 V to +5 V
LFO (Low Frequency Oscillator output) R6; C1
This output carries the LFO signal, based on all the LFO parameter knobs and
settings, as well as any patching, such as to the LFO RATE input.
CV OUTPUT: -5 V to +5 V (10 vpp), typical
ATTN (+5) (Attenuator input) R6; C3
This jack is the input for the onboard Attenuator. With no patch cable connected
to this jack, a control signal of up to +5 Volts, as determined by the ATTENUATOR
knob in the Front Panel UTL section, will be available via the ATTN output jack
(R7; C3). For more information, refer to "Attenuator" (page 44).
CV INPUT: -10 V to +10 V
ATTN (Attenuator output) R7; C3
This signal present at this jack is the output of the onboard Attenuator. If no
patch cable is connected to the ATTN (+5) input jack (R6; C3), then a control
signal from 0 Volts up to +5 Volts, as determined by the ATTENUATOR knob in
the Front Panel UTL section, will be available from this jack. For more information,
refer to "Attenuator" (page 44).
CV OUTPUT: -10 V to +10 V
EG (Envelope Generator output) R7; C1
This output carries the EG control signal, based on all the EG parameter knobs
and settings.
CV OUTPUT: 0 V to +8 V
To Next Page
