Moog MAVIS User Manual

41 | The Patchbay

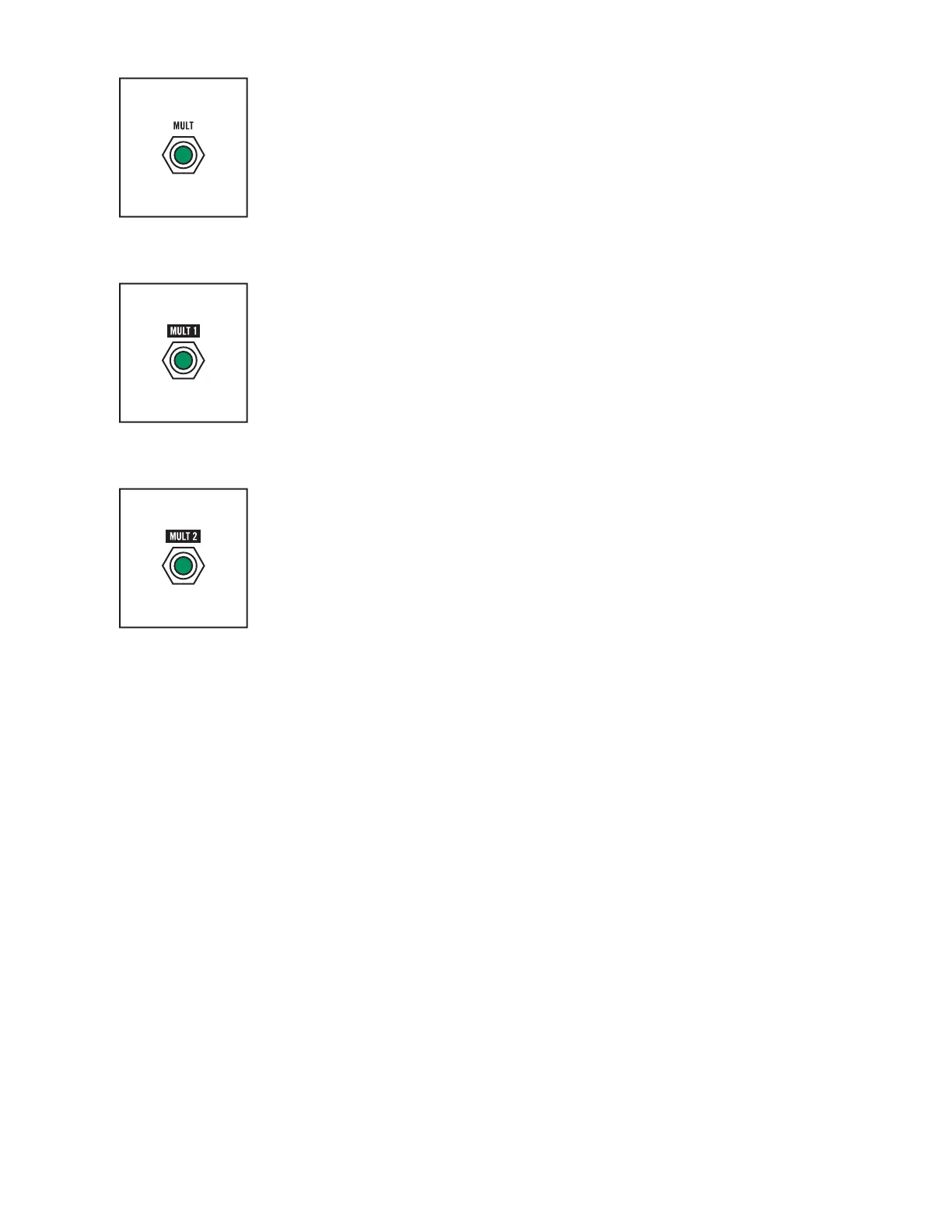

MULT (Mult Jack input) R8; C1
This jack acts as the input to the Mult jacks. This signal connected to this input
jack will be available at both of the MULT output jacks. This allows the same
signal to be sent to two dierent destinations. For more information, refer to
"MULT" (page 43).
CV INPUT: Passive Mult; no range specified
MULT 1 (Mult Jack output A) R8; C2
This signal available via this output jack is identical to the signal connected to
the MULT input jack (R8; C1). This same signal is also available via the MULT 2
output jack (R8; C3). For more information, refer to "MULT" (page 43).
CV OUTPUT: Passive Mult; no range specified
MULT 2 (Mult Jack output B) R8; C3
This signal available via this output jack is identical to the signal connected to
the MULT input jack (R8; C1). This same signal is also available via the MULT 1
output jack (R8; C2). For more information, refer to "MULT" (page 43).
CV OUTPUT: Passive Mult; no range specified

Moog MAVIS Specifications

General

Type	Semi-Modular Analog Synthesizer
Oscillators	1 VCO
Waveforms	Sawtooth, Square, Triangle, Pulse
Envelopes	1 ADSR
LFO	1 LFO
Power	9V DC Power Supply
Connectivity	1/4" Audio Out
