36
FILTERS (Continued)

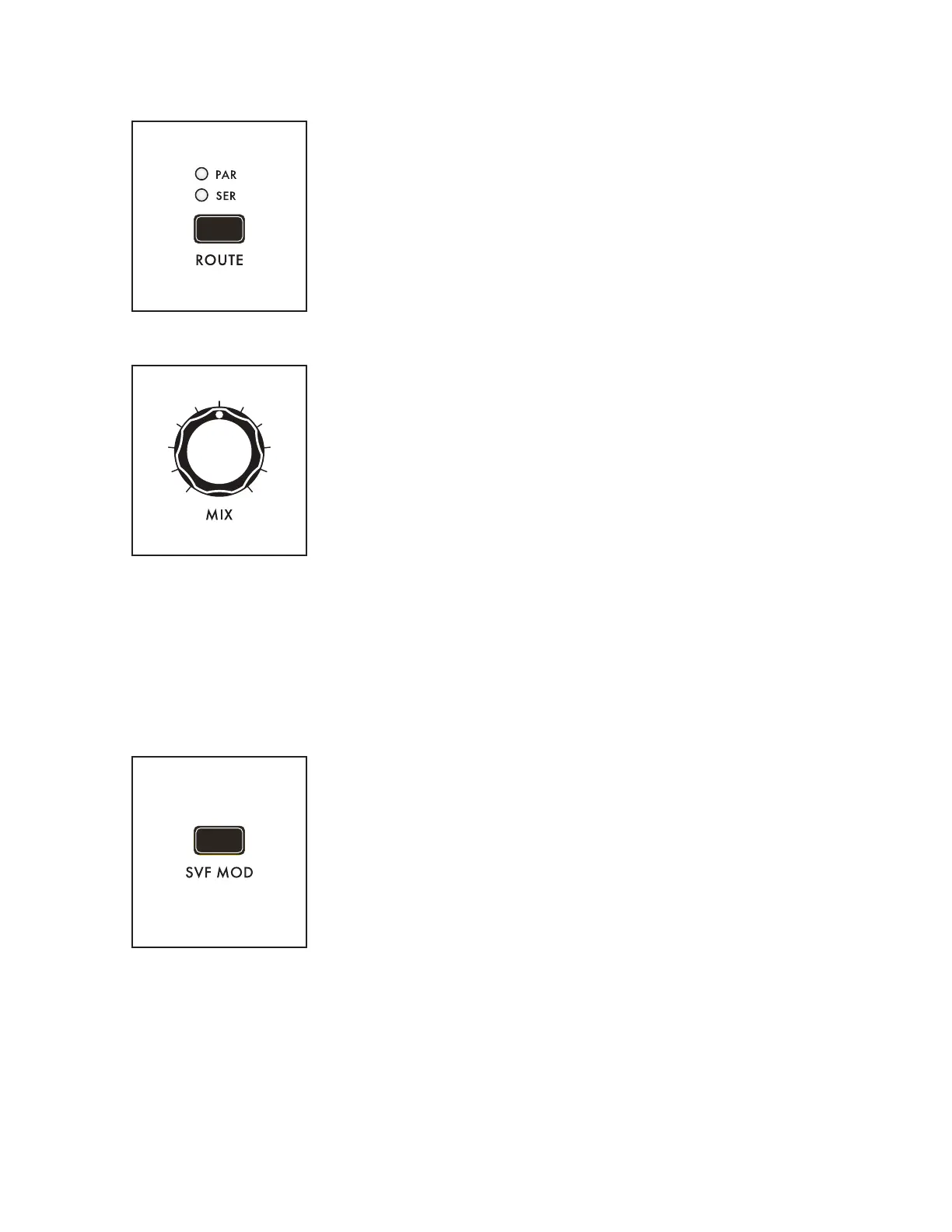

ROUTE (PAR, SER)
Pressing the ROUTE button cycles through the available Filter Routings.
The associated LED will light to indicate your selection.
PAR (PARALLEL)
When Parallel Routing is selected, the SVF and Ladder Filter
operate individually, side by side.
SER (SERIES)
When Series Routing is selected, the output of the SVF feeds into
the input of the Ladder Filter, forming a continuous “lter chain.”
MIX
The balance between the two Filter outputs is controlled using the
MIX knob. The center position represents an equal blend of the two
lter modules. Turning the MIX knob to the left will favor the SVF
output; turning the MIX knob to the right will accentuate the
Ladder Filter output.
NOTE: To listen to the serial output of both lters, assign any source(s)
to the SVF lter only, and then rotate the MIX knob all the way to the
right (100% Ladder).The SVF output will feed the Ladder lter input, and
the Ladder output will be the result of both lters in series.
CUTOFF MODULATION
The Filter module also contains three Cutoff Modulation parameters – EG AMT, LFO 2 AMT, and
FM AMT. These frequently used modulation sources are instantly available and are conveniently hard-
wired to each Filter’s Cutoff Frequency. These parameters can be adjusted independently for the SVF
and Ladder Filter, or they can be applied to both at once.
SVF MOD (ON/LIT, OFF/UNLIT)
When this button is lit, the EG AMT, LFO 2 AMT, and FM AMT knobs will
set the modulation for the Cutoff Frequency of the State Variable Filter.
When SVF MOD is unlit, the knobs no longer adjust the SVF modulation
amount, but any previous modulations set for the SVF will remain.
LADDER MOD (ON/LIT, OFF/UNLIT)
When this button is lit, the EG AMT, LFO 2 AMT, and FM AMT knobs will
set the modulation for the Cutoff Frequency of the Ladder Filter. When
LADDER MOD is unlit, the knobs no longer adjust the Ladder Filter
modulation amount, but any previous modulations set for the Ladder
Filter will remain.
NOTE: The SVF MOD and LADDER MOD buttons can be On (lit) simultaneously by pressing both
buttons at the same time. In this case, the EG AMT, LFO 2 AMT, and FM AMT knobs will affect the
modulation amounts for both Filters.
