43
ENVELOPES (Continued)
DEST

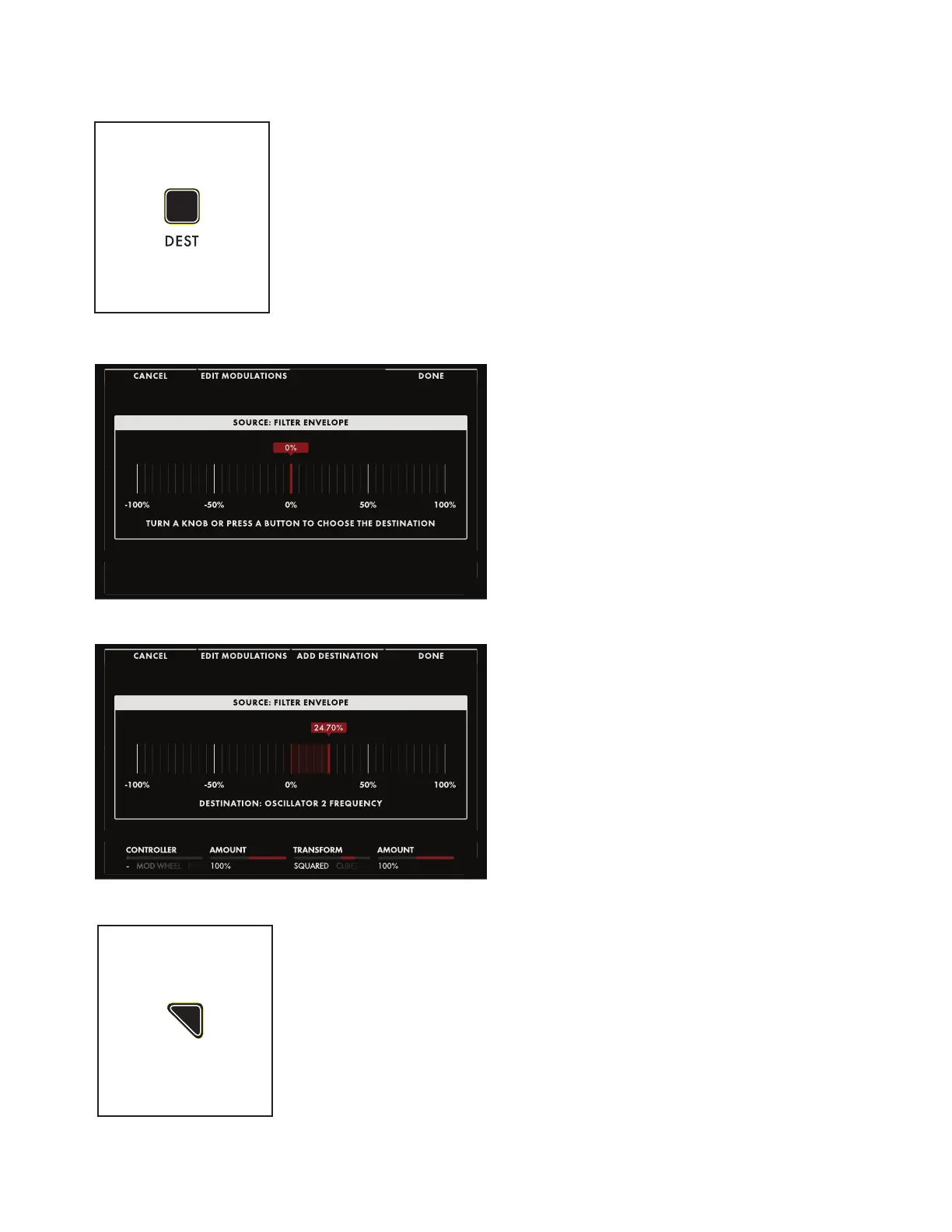

The DEST (Destination) button provides an intuitive and simple shortcut
for establishing a modulation route using this Envelope as the source.
Once the DEST button is pressed, the Modulation Quick Assign screen
will open in the Center Console Display. The next Front Panel parameter
that is touched or tweaked will become the modulation destination.
In this example, the Oscillator 2
FREQUENCY knob has been selected, and
turning the knob will set the modulation
amount as shown in the second screen. At
this point, pressing the DONE Soft Button
at the top of the screen will complete the
modulation routing, or the CANCEL Soft
Button can be used to exit this modulation
screen without making the modulation
route complete. The functions of the
additional Soft Knobs and Soft Buttons are
discussed in the MODULATION section.
ENVELOPE MORE PAGE
Pressing the associated triangular MORE button in the upper right
corner of any Envelope will reveal a second level of parameters that can
be accessed and modied using the interactive portion of the Center
Console. These additional parameters are displayed in the bottom
portion of the screen. The left pane offers a visual representation of the
Envelope shape. The right pane shows the current value of the Front
Panel hardware parameters for this module. Tweaking these panel
controls will update their values here.
NOTE: Pressing the (now) illuminated MORE button will exit the MORE
page and recall the HOME screen.
