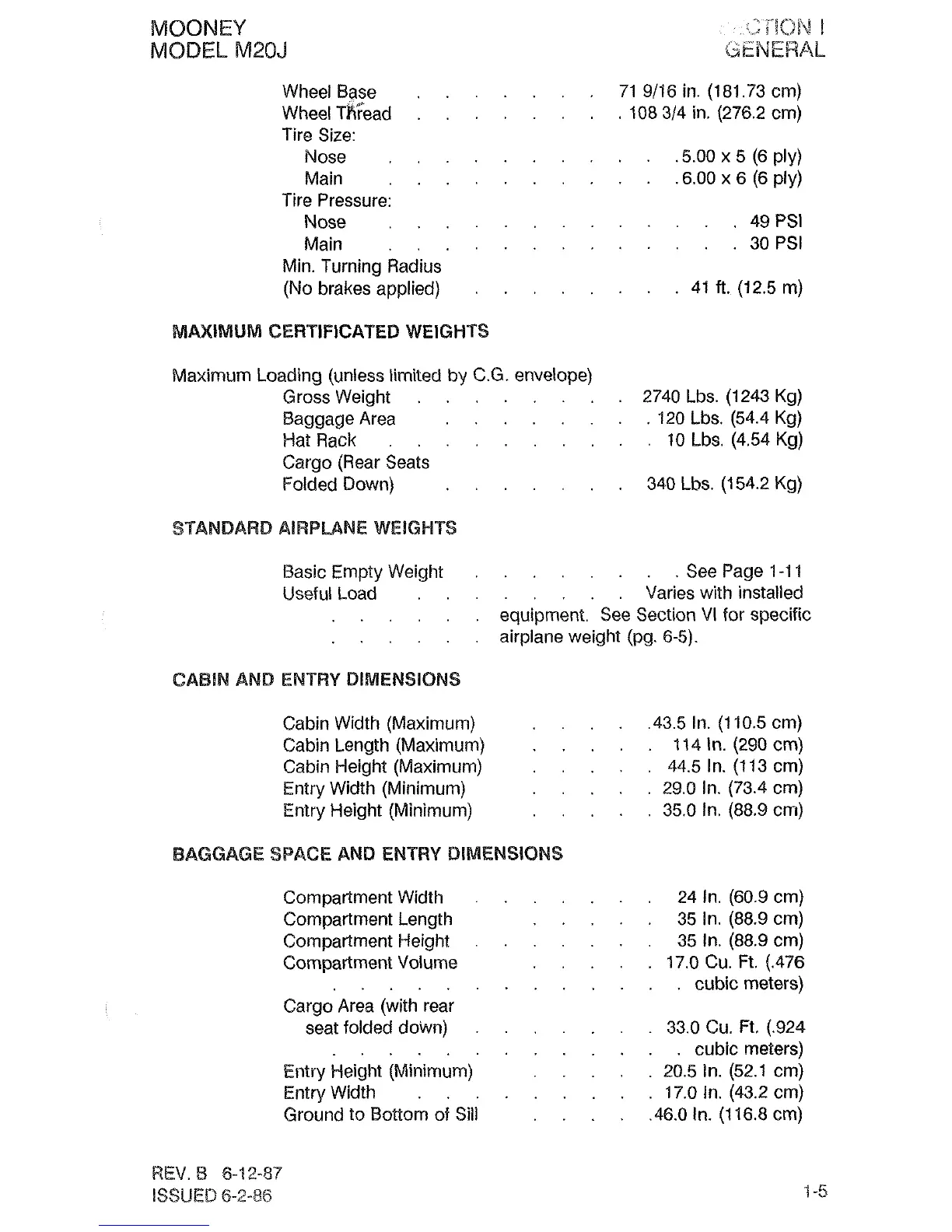

MBONEY
MODEL M20J
.......
Wheel Base
71 9/16 in. (181.73 cm)
........
Wheel Thread
108 314 in. (276.2 cm)
Tire Size:
..........
Nose
.5.00 x 5 (6 ply)
Main
... .6.00 x 6 (6 ply)
Tire Pressure:
Nose
............ 49 PSI
Main
...... 30 PSI
Min. Turning Radius
........
(No brakes applied)
41 ft. (12.5 m)
MMIMUM CERTIFICATED WEIGHTS
Maximum Loading (unless limited by C.G. envelope)
Gross Weight
... 2740 Lbs. (1243 Kg)
Baggage Area
... 120 Lbs. (54.4 Kg)
Hat Rack ......... 10 Lbs. (4.54 Kg)
Cargo (Rear Seals
Folded Down)
.... 340 Lbs. (1 54.2 Kg)
STANDARD AIRPMNE WEIGHTS
........
Basic Empty Weight
See Page
1-1 1
........
Useful Load Varies with installed
. . , , . . equipment. See Section \/I for specific
... airplane weight (pg. 6-5).
CABIN AND ENTRY DlFWENSlONS
Cabin Width (Maximum) . ,435 In. (110.5 cm)
Cabin Length (Maximum)
. 914 In. (290 cm)
Cabin
Height (Maximum) ... 44.5 In. (1 13 cm)
Entry Width (Minimum)
... 29.0 In. (73.4 cm)
Entry Height (Minimum) . . , . . 35.0 In. (88.9 cm)
BAGGAGE SPACE AND ENTRY DlMENS16NS
Compartment Width .
Compartment Length
Compartment Height
.
Compartment Volume
......
Cargo Area (with rear
seat folded down)
.
......
Entry Height (Minimum)
... Entry Width
Ground to Bottom of Sill
. 24 In. (60.9 cm)
. 35 In. (88.9 cm)
. 35 In. (88.9 cm)
.... 17.0Cu. Ft. (476
. cubic meters)
... 33.0 Cu. Ft. (924
. cubicmeters)
.. 20.5 In. (52.1 cm)
. 17.0 In. (43.2 cm)
. .46.0 In. (116.8 cm)
REV. B 5-12-87
ISSUED 6-2-86
