MOONEY SECTION
VII
MODEL M20J AIRPLANE AND SYSTEMS DESCRIPTION
BAGGAGE COMPARTMENT
The baggage compartment is located aft of the rear passenger seat. The
standard compartment has 17 cubic feet
)(.48 cu.m) of baggage or cargo
space,
A maximum of
120
pounds(54
Kg)
may be loaded in this area. There
are two pairs of floor
tiedown straps provided. Children should not be al-
lowed to occupy
this space unless the optional childs seat is provided. Addi-
tional cargo space may be made available by rear seat back cushion (fold
seat back forward and slide cover up and off frame; store as desired) then
fold rear seat back down. Both seats can be folded down together or inde-
pendent of each other. The hat rack compartment is restricted to
10
pounds(4.5 Kg).
The cargo
tiedown rings are to be inserted in holes provided in web of front
seat rails. The cargo belts attach to these rings and to standard seat belt har-
ness to retain cargo. Refer to Figure 7-5 for typical restraint.

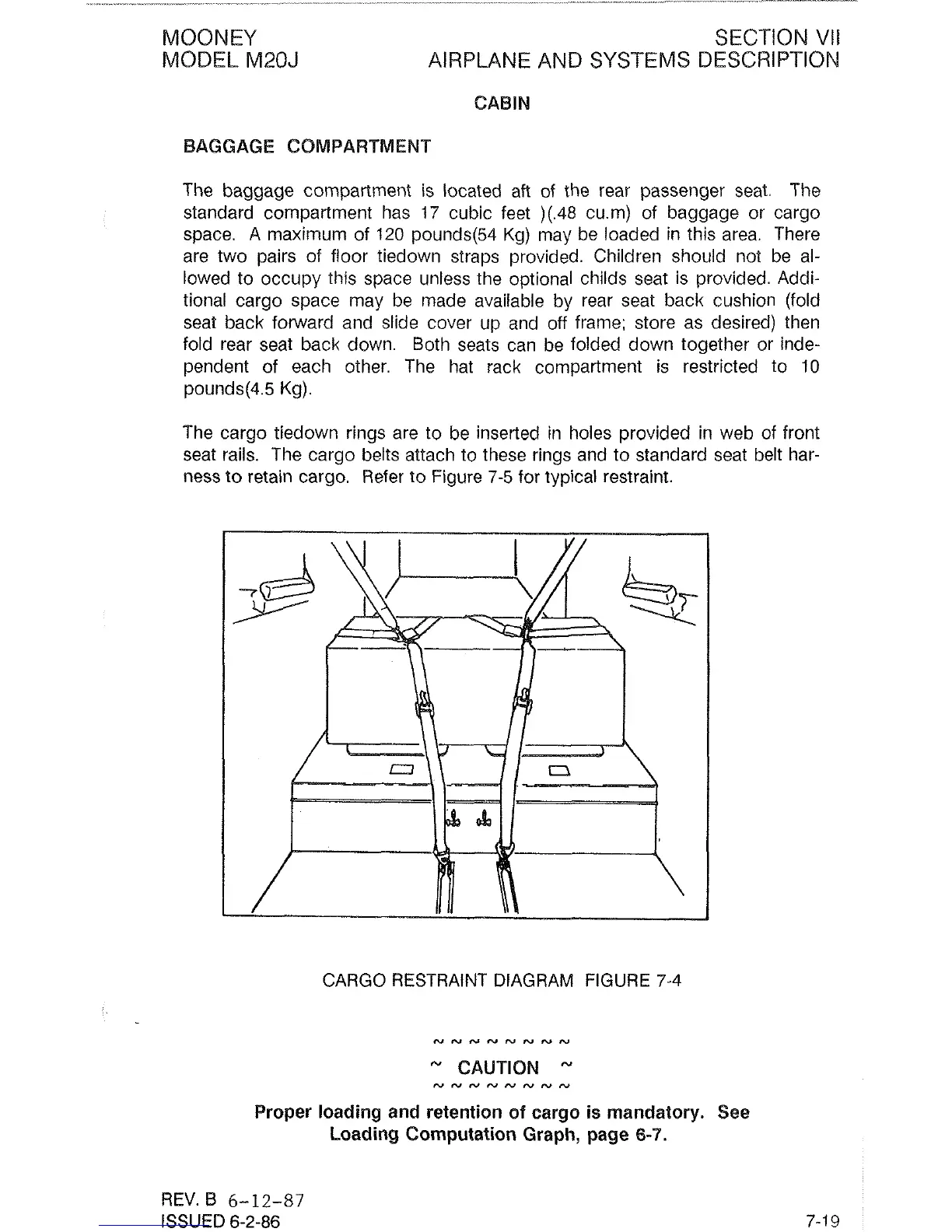

CARGO RESTRAINT DIAGRAM FIGURE
7-4
NNNNNNNN
CAUTION
NNNNNNNN
Proper loading and retention of cargo is mandatory.
See
Loading Computation Graph, page
6-7.
REV.
B
6-12-87
ISSUED
6-2-86
