MOONEY
MODEL
M20,
Push-pull, or rocker switch-circuit breakers automatically break the electrical
current flow if the system or unit receives an overload, thus preventing
damage to electrical wiring.

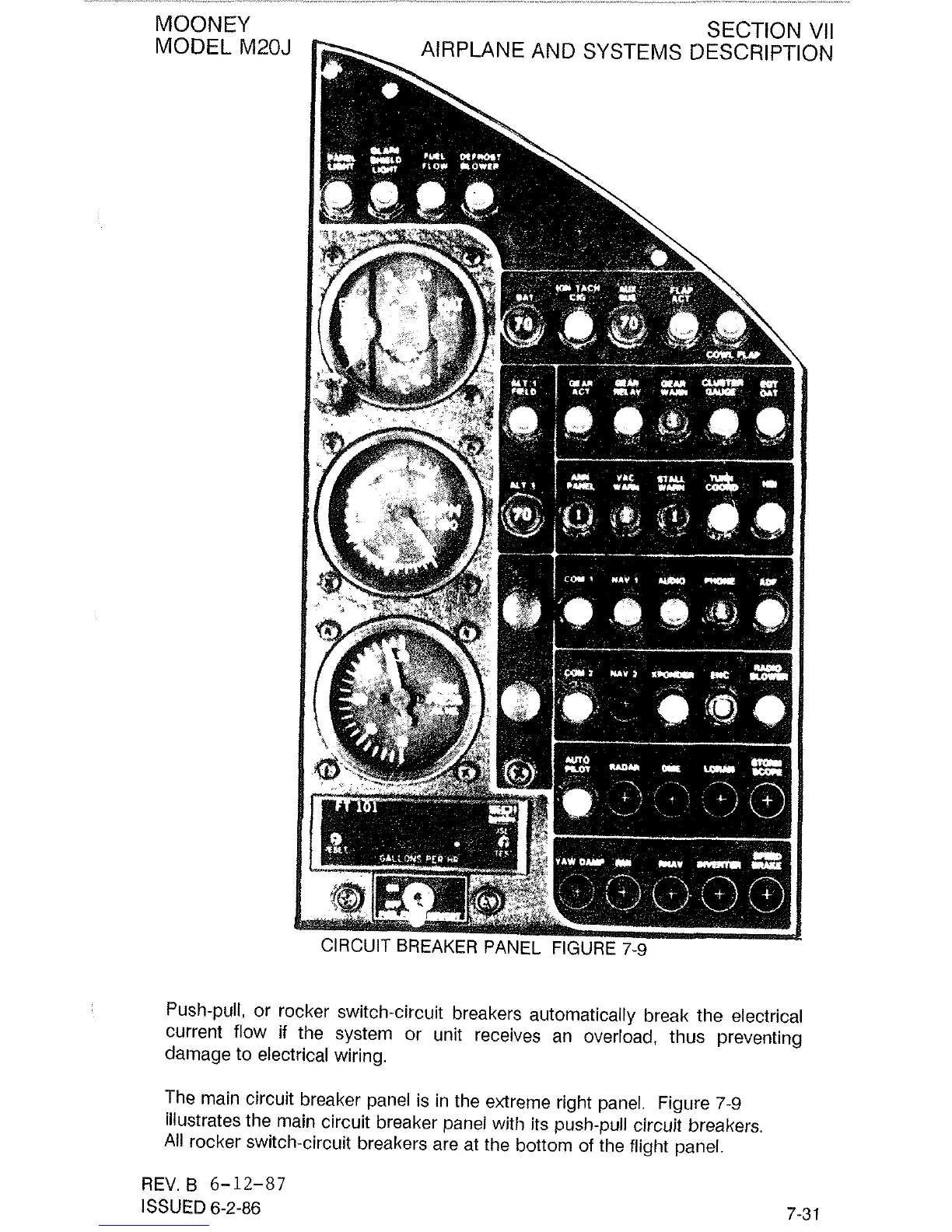

The main circuit breaker panel is in the extreme right panel. Figure
7-9
illustrates the main circuit breaker panel with its push-pull circuit breakers.
All rocker switch-circuit breakers are at the bottom of the flight panel.
REV.
B
6-12-87
ISSUED
6-2-86
