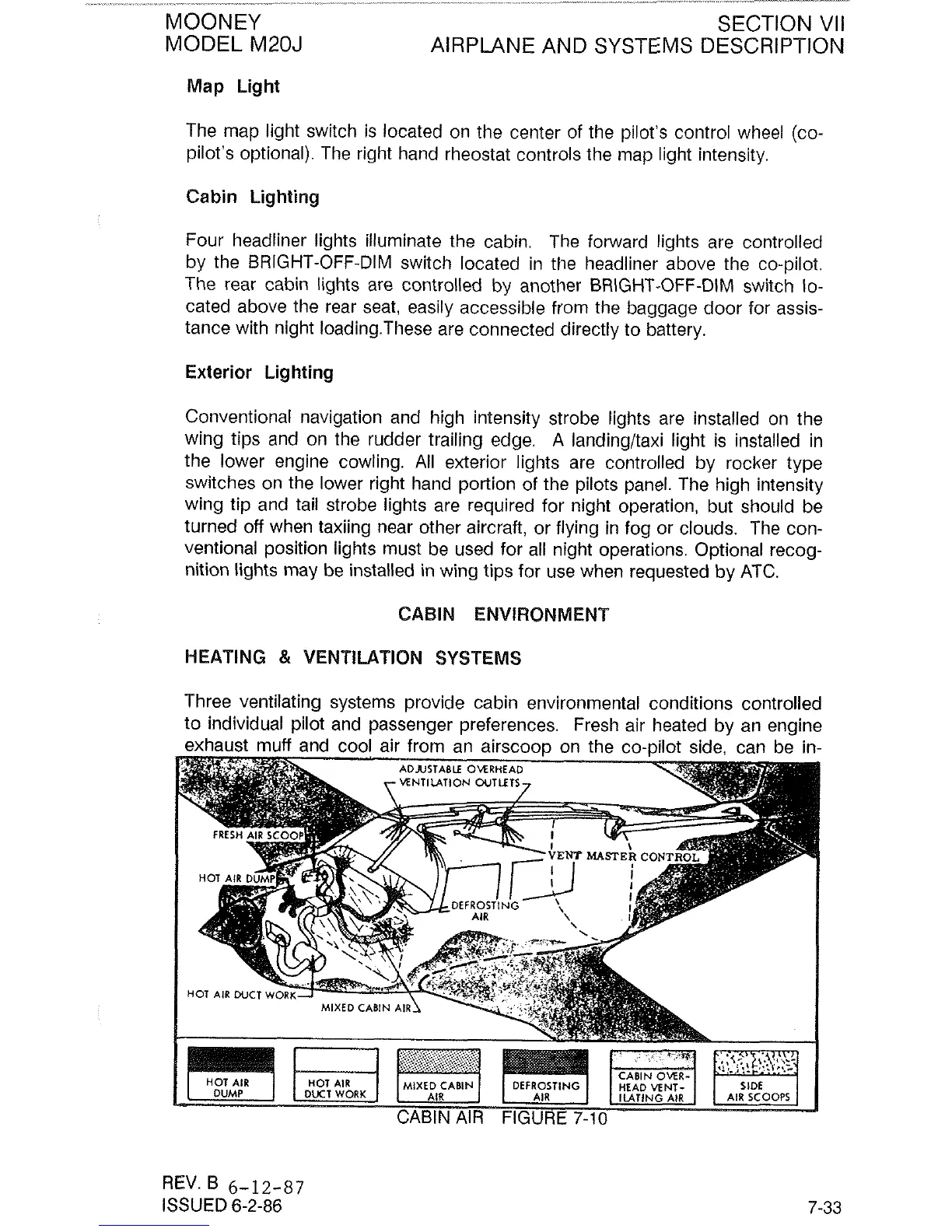

MOONEY SECTION
Vll
MODEL M20J AIRPLANE AND SYSTEMS DESCRIPTION
Map
Light
The map light switch is located on the center of the pilot's control wheel (co-
pilot's optional). The right hand rheostat controls the map light intensity.
Cabin Lighting
Four headliner lights illuminate the cabin. The forward lights are controlled
by the BRIGHT-OFF-DIM switch located in the headliner above the co-pilot.
The rear cabin lights are controlled by another BRIGHT-OFF-DIM switch lo-
cated above the rear seat, easily accessible from the baggage door for assis-
tance with night
loading.These are connected directly to battery.
Exterior Lighting
Conventional navigation and high intensity strobe lights are installed on the
wing tips and on the rudder trailing edge.
A
landingltaxi light is installed in
the lower engine cowling. All exterior lights are controlled by rocker type
switches on the lower right hand portion of the pilots panel. The high intensity
wing tip and tail strobe lights are required for night operation, but should be
turned off when taxiing near other aircraft, or flying in fog or clouds. The con-
ventional position lights must be used for all night operations. Optional recog-
nition lights may be installed in wing tips for use when requested by ATC.
CABIN ENVIRONMENT
HEATING
&
VENTllATlON SYSTEMS
Three ventilating systems provide cabin environmental conditions controlled
to individual pilot and passenger preferences. Fresh air heated by an engine
REV.
B
6-12-87
ISSUED
6-2-86
