Moons' Lin Engineering R701P - 8-Wire Motor Connections; 6 Lead Wire Motor Connection (Full-Winding); 8 Lead Wire Motor Connection (Parallel); 8 Lead Wire Motor Connection (Series)

LIN ENGINEERING Page 13 Version 6.70
R701P User Manual 02/15/2022

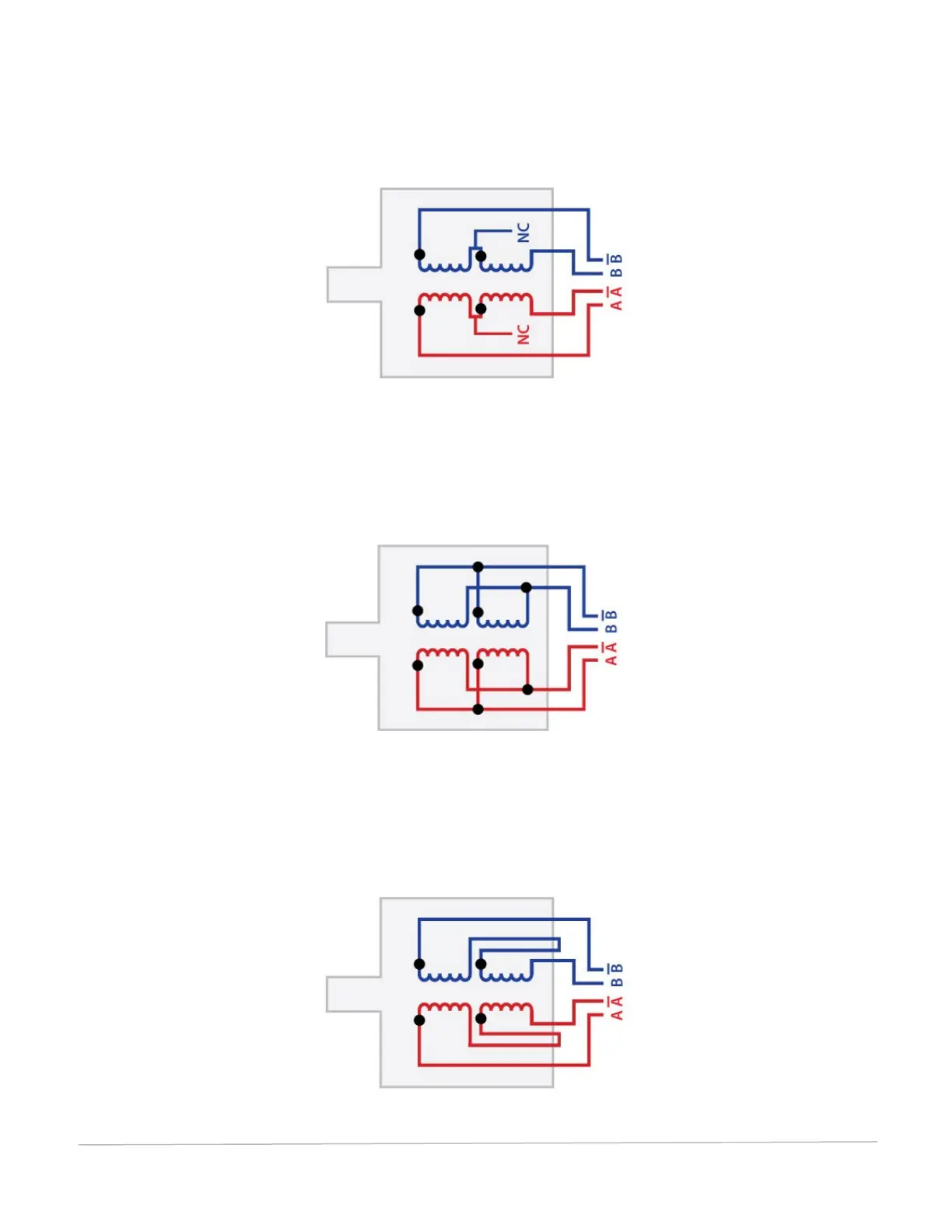

6 Lead Wire Motor Connection (Full-Winding)
For a full winding connection, use both end wires, the center tap is ignored. (NC: No Connection).
Figure 5.3: 6 Lead Wire Full Winding Connection
8 Lead Wire Motor Connection (Parallel Connection)
Eight wire motors can be connected in two ways: Parallel and Series. When in parallel, the wires are
simply connected such that the beginning of each winding are connected together.
Figure 5.4: 8 Lead Wire Parallel Connection
8 Lead Wire Motor Connection (Series Connection)
Be sure to set the drive current to exactly half of the motor’s rated parallel current rating when using
the series connection.
Figure 5.5: 8 Lead Wire Series Connection
