LIN ENGINEERING Page 5 Version 6.70
R701P User Manual 02/15/2022
Heatsinking
The R701P needs an additional heatsink for current settings greater than 3 Amps. The case
temperature (measured from the bottom plate) should not exceed 70° C. For best results, use
heatsink compound between the R701P and the heatsink.
4. MECHANICAL SPECIFICATIONS
Size: 2.5” x 2.5” x 0.838” (63.5 mm x 63.5 mm x 21.3 mm)
Weight: 3.6 oz (100 gm)
Mounting: Four #6-32 screws, 1.75” x 2.372” (44.5 mm x 60.2 mm)
Cover: Aluminum, Anodized
Plate: Aluminum, Hard Anodized
Color: Blue exterior, White Text

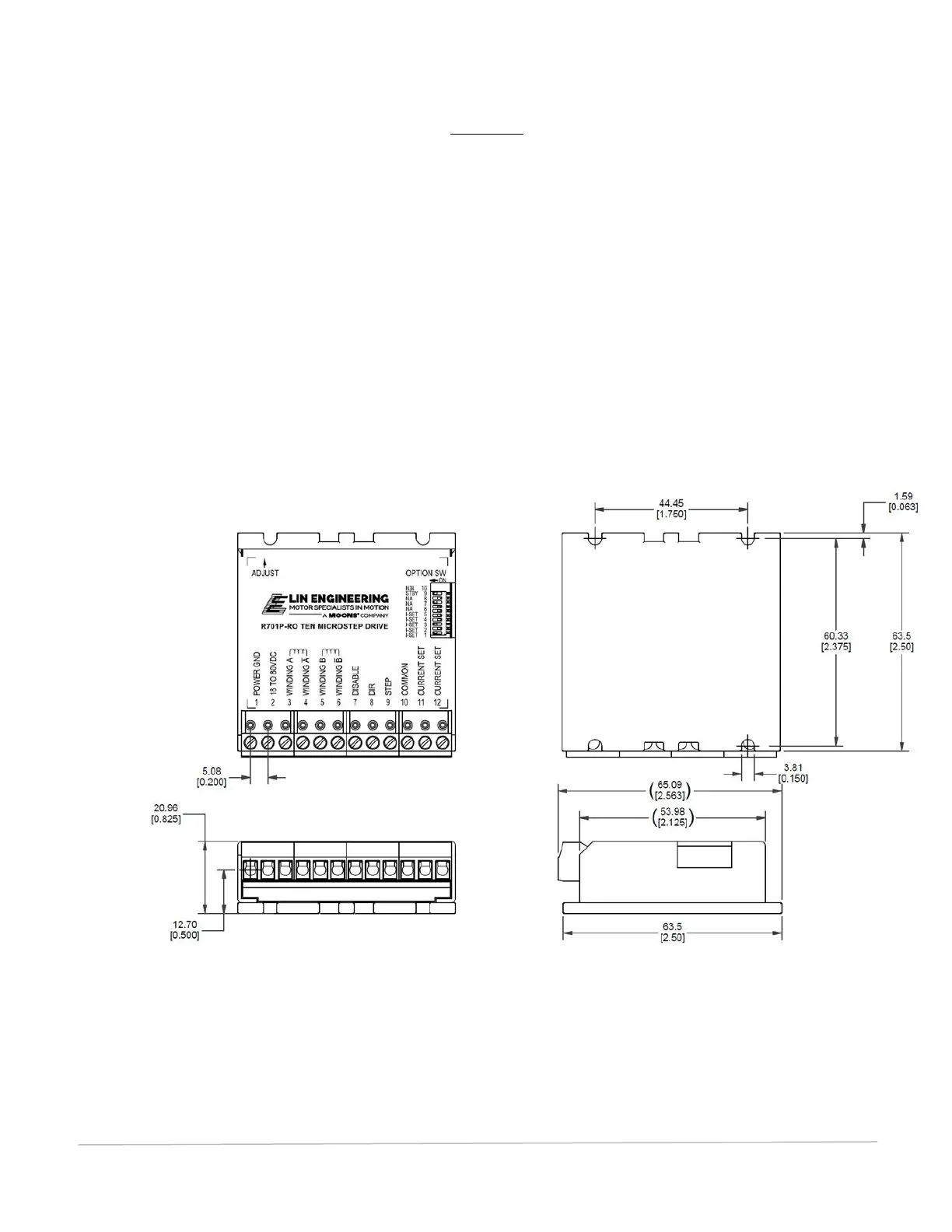

Dimensions
Figure 1: Dimensions Diagram
