12
Rev. 1.0
10/22/2018
SSDC-R/C Hardware Manual
400-820-9661

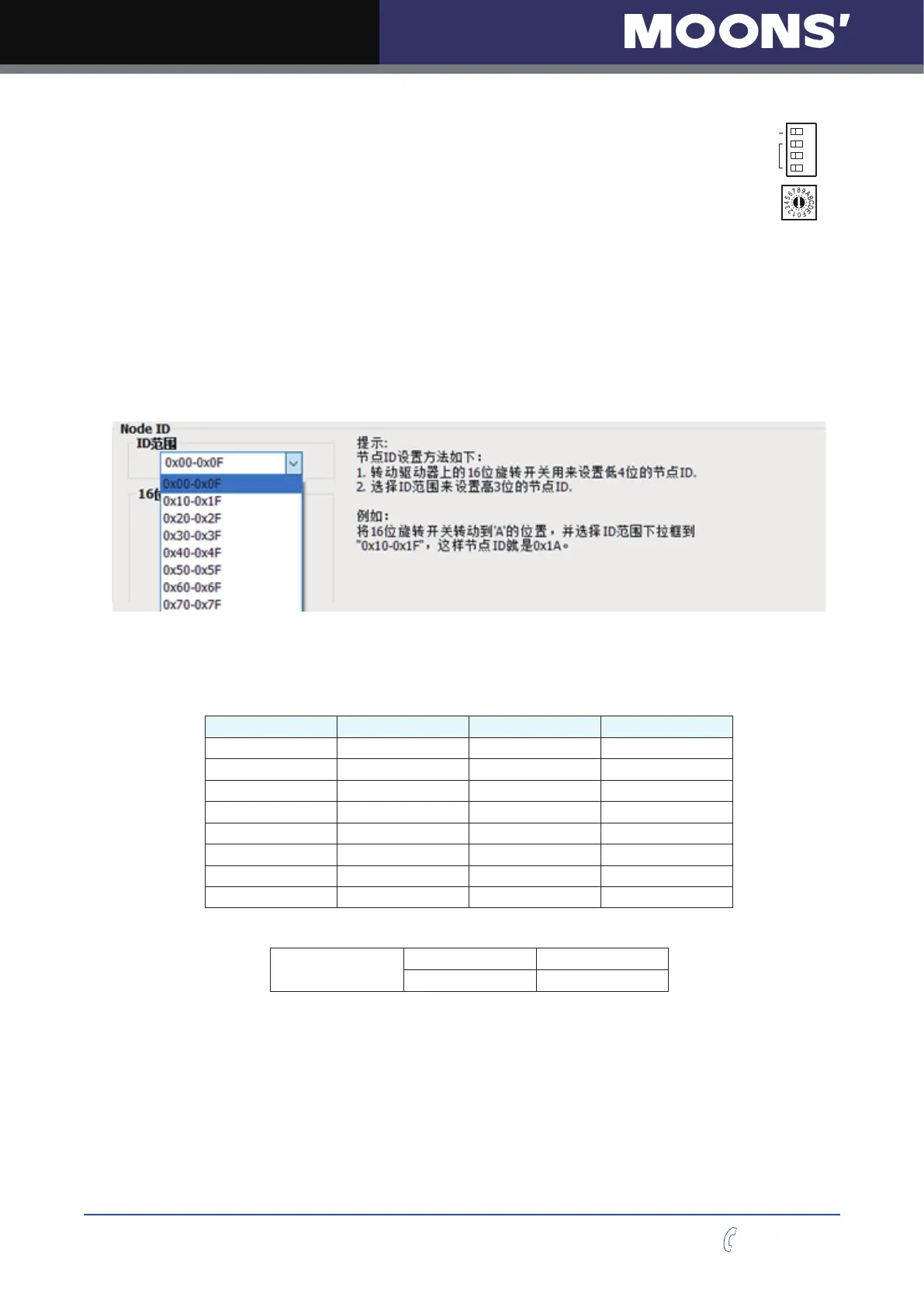

2.3.2 CANopen Node ID and baud rate settings(-C model)
Set the lower 4 bits of drive
’
s CANopen Node ID by rotary switch S1
Set drive
’
s CANopen baud rate and terminal resistor by piano switch S2
Each node on a CANopen network must have a unique Node ID. Valid ranges for the Node ID
are 0x01 through 0x7F (1~127). Node ID 0x00 is reserved in accordance with CiA301. The Node
ID is selected using rotary switches and software; one sixteen position switch set the lower four
bits (0~F) of node ID, while upper three bits of node ID are configured by Step-Servo Quick Tuner
software. Each time when Node ID is changed, a power cycle is required before the new Node ID
is valid.
Please refer to the CANopen manual for more information.
S2 used to set the CANopen baud rate, SW1, SW2 and SW3 are used to set the baud rate. SW4
is used to set the terminal resistor.
CANopen communication baud rate
SW1 SW2 SW3 Baud rate
（
bps
）
OFF OFF OFF 1M
OFF OFF ON 800K
OFF ON OFF 500K
OFF ON ON 250K
ON OFF OFF 125K
ON OFF ON 50K
ON ON OFF 20K
ON ON ON 12.5K
Terminal resistor
SW4
OFF Disconnected
ON Connected
S2
S1
CANopen波特率
终端匹配电阻
SW3
SW4
SW2
SW1
CANopen地址
