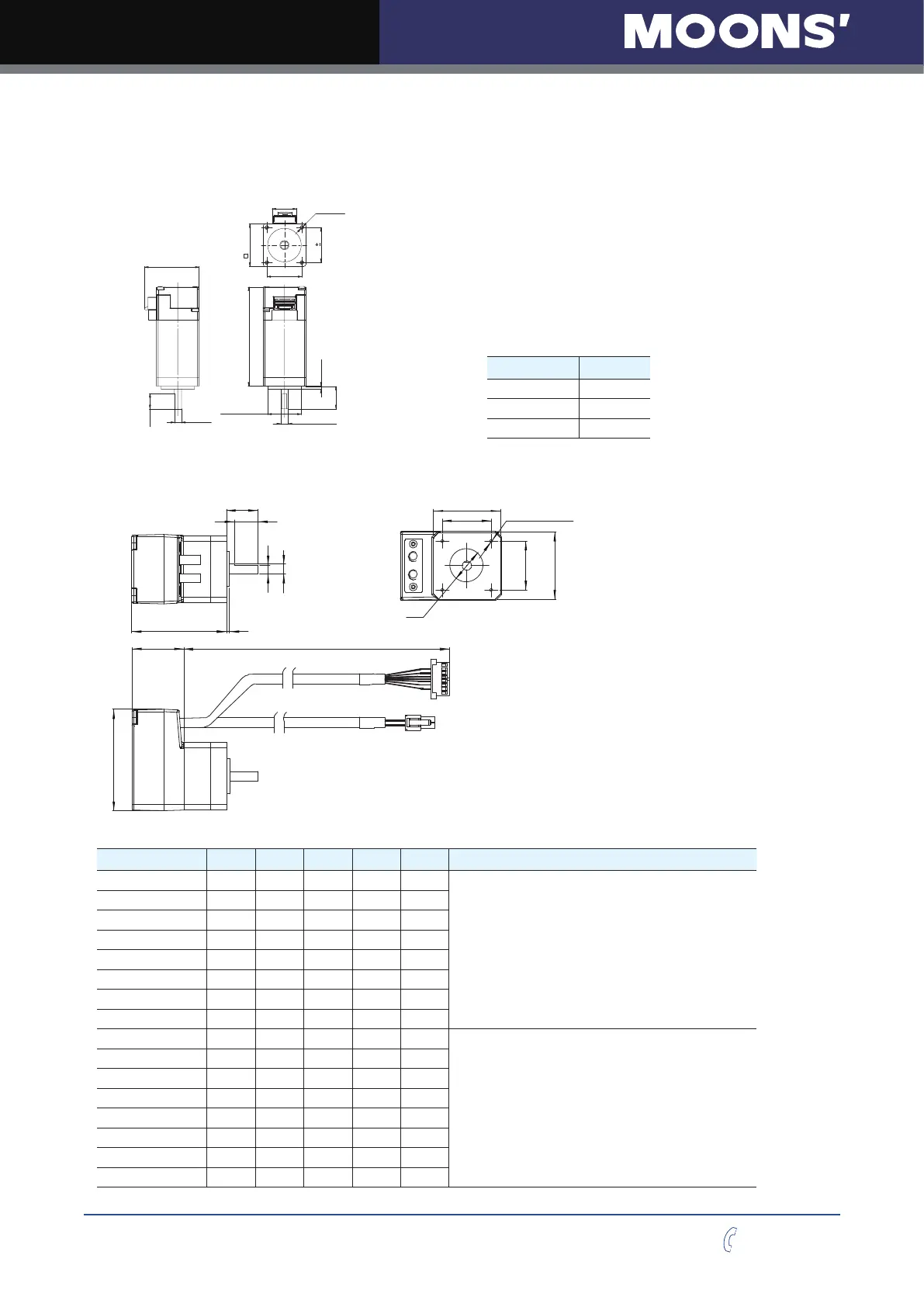

6.4 Motor Dimensions (Unit:mm)
AM11 Series
Depth 2.5 Min
φ22-0.052
0
φ5-0.012
0
L ( Max.)
36
28Max.
16.2
23±0.1
2±0.2
15±0.5
4.5±0.1
10±0.2
0.1
23
4-M2.5
Model L
AM11RS1DMA 43.8
AM11RS2DMA 52.9
AM11RS3DMA 64.1
AM17 Series
300
L 2
B
B1
A
A 1
33
6 4
3 1
31
4 2.3
42.3
4-M3 Depth 4.5Min
V22
Model A A1 B B1 L Connector On Cable
AM17RS1DMA
φ
6 5.5 20 15 59.5
Motor cable
Housing: 39-01-3048 (Molex), 1pcs
Crimp: 39-00-0038 (Molex), 4pcs
Encoder cable
Housing:1-1827864-6 (Tyco), 1pcs
Crimp:1827569-2 (Tyco), 11pcs
AM17RS1DMB
φ
5 4.5 24 15 59.5
AM17RS2DMA
φ
6 5.5 20 15 65
AM17RS2DMB
φ
5 4.5 24 15 65
AM17RS3DMA
φ
6 5.5 20 15 73.5
AM17RS3DMB
φ
5 4.5 24 15 73.5
AM17RS4DMA
φ
6 5.5 20 15 89
AM17RS4DMB
φ
5 4.5 24 15 89
AM17SS1DGA-N
φ
6 5.5 20 15 59.5
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM17SS1DGB-N
φ
5 4.5 24 15 59.5
AM17SS2DGA-N
φ
6 5.5 20 15 65
AM17SS2DGB-N
φ
5 4.5 24 15 65
AM17SS3DGA-N
φ
6 5.5 20 15 73.5
AM17SS3DGB-N
φ
5 4.5 24 15 73.5
AM17SS4DGA-N
φ
6 5.5 20 15 89
AM17SS4DGB-N
φ
5 4.5 24 15 89
