Moons' SSDC-R Series User Manual

52
Rev. 1.0
10/22/2018
SSDC-R/C Hardware Manual
400-820-9661

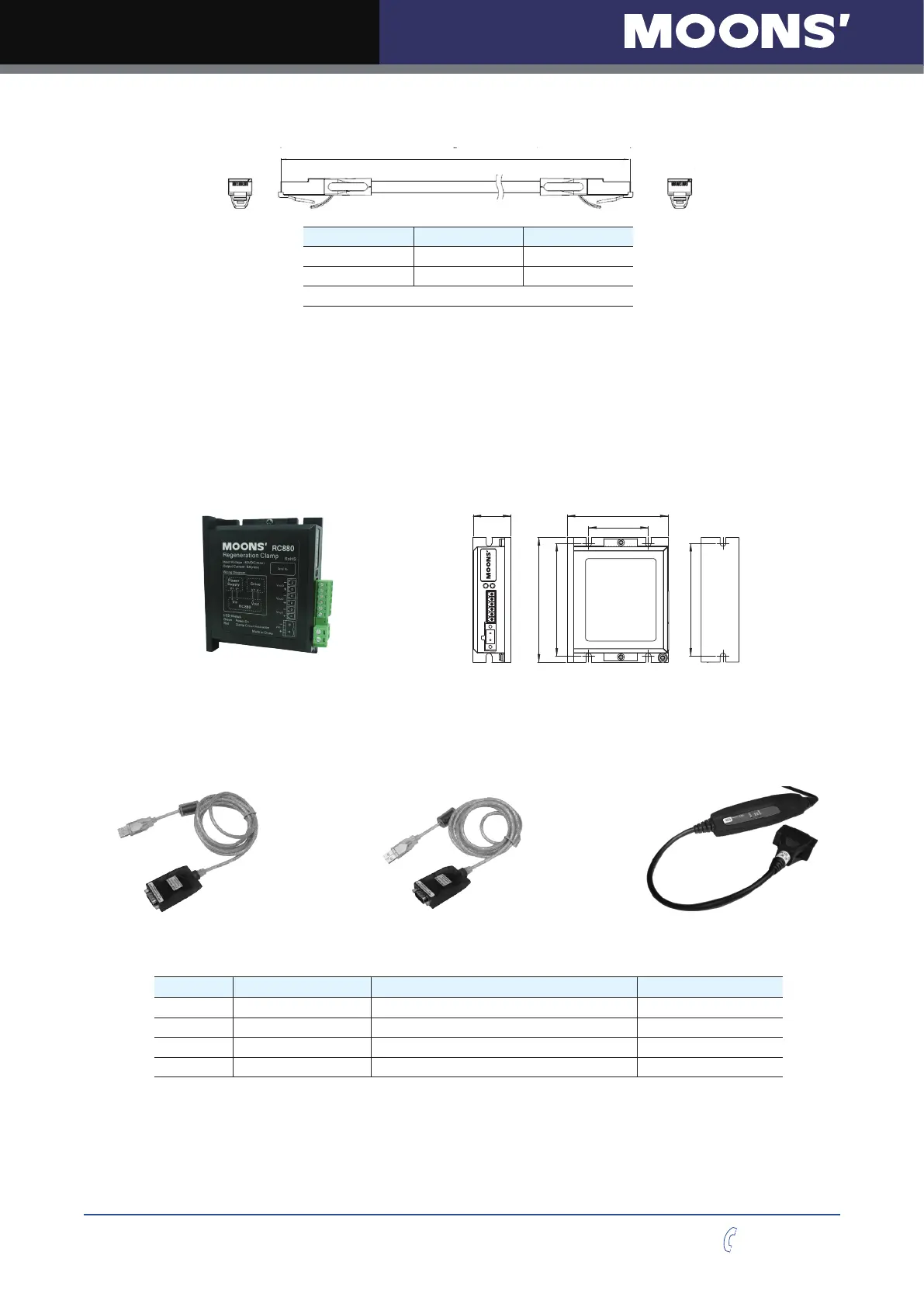

7.2.7 Network Cable
L
L
8 1
8 1
Common Type Shielded Type Length(L)
2012-030 * 2013-030 0.3M
2012-300 2013-300 3M
* 2012-030 is included in the drive package(except SSDC-A type).
7.2.8 Regeneration Clamp RC880
MOONS’offers the RC880“regeneration clamp”to solve this problem. If in doubt, use an
RC880 for your first installation. If the“Regen”LED on the RC880 never flashes, you don’t need
the clamp.
Maximum input voltage：80VDC
Maximum output current：8A（rms）
Maximum absorbed power：50W
76
45
94 85
85
28.6
Unit：mm
7.2.9 USB Adapter
Model: MS-USB-RS232-01
Description: USB-RS232 Converter
Model: MS-USB-RS485-01
Description: USB-RS485 Converter
Model: MS-USB-CAN-01
Description: USB-CAN Converter
7.3 Mating Connector to the Drive
v Description P/N Vender
J1 Power Connector Housing：39-01-3028 Crimp：39-00-0038 Molex
J2 Motor Connector Housing：39-01-3048 Crimp：39-00-0038 Molex
J3 Encoder Connector Housing：501646-1600 Crimp：501648-1000 Molex
J4 I/O Connector Housing：501646-3200 Crimp：501648-1000 Molex
