Sensor 1 Trim
Here you can select your Trim Mode, select from either Disabled, One Point, or Two Point.
Also displayed are the following Values : Minimum Lower Trim Value, Maximum Lower
Trim Value, Minimum Upper Trim Value, Maximum Upper Trim Value, Minimum Span,
Sensor 1 Reading, Sensor 1 Reading (State), and Desired Trim Point Value. There are
three buttons Trim Lower Point, Trim Upper Point, and Factory Default. Finally a display
eld for the displaying Trim Result value. Refer to Figure 5.33.
Sensor 2 Trim
Is identical to the Sensor 1 Trim menu when Sensor 2 is enabled.

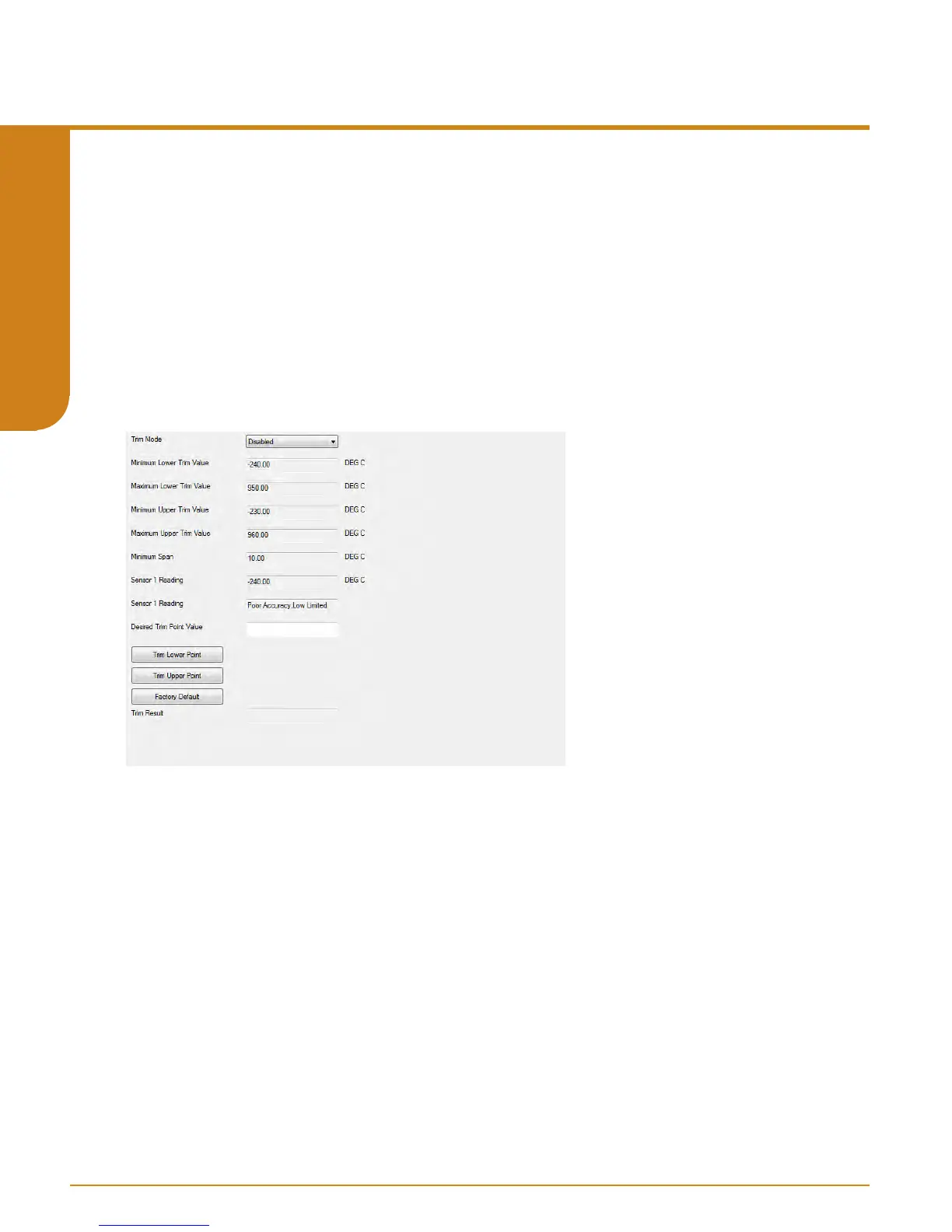

Figure 5.33. THZ
3
/ TDZ
3
Custom Calibration Menu - Sensor 1 and Sensor 2 Trim
